StarTech.com Extreme Networks 10319 Compatible QSFP+ Module - 40GBASE-SR4 - 40GbE Multimode Fiber MMF Optic Transceiver - 40GE Gigabit Ethernet QSFP+ - MPO 150m - 850nm - DDM

StarTech.com Extreme Networks 10319 Compatible QSFP+ Module - 40GBASE-SR4 - 40GbE Multimode Fiber MMF Optic Transceiver - 40GE Gigabit Ethernet QSFP+ - MPO 150m - 850nm - DDM

Name: StarTech.com Extreme Networks 10319 Compatible QSFP+ Module - 40GBASE-SR4 - 40GbE Multimode Fiber MMF Optic Transceiver - 40GE Gigabit Ethernet QSFP+...
Brand: StarTech.com
SKU: 10319-ST
Price: 414.93 EUR
Availability: OutOfStock

40 Gbps | Multi Mode Fiber | MPO | 150 m (492 ft) | Lifetime Warranty

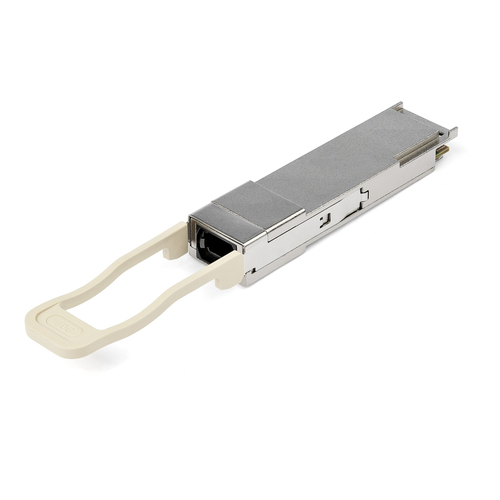

The 10319-ST is an Extreme Networks 10319 compatible fiber transceiver module that has been designed, programmed and tested to work with Extreme Networks brand switches and routers. It delivers dependable 40 GbE connectivity over fiber cable, for 40GBASE-SR4 compliant networks, with a maximum distance of up to 150 m (492 ft). Technical Specifications:

• Wavelength: 850nm
• Maximum Data Transfer Rate: 40 Gbps
• Type: Multi Mode Fiber

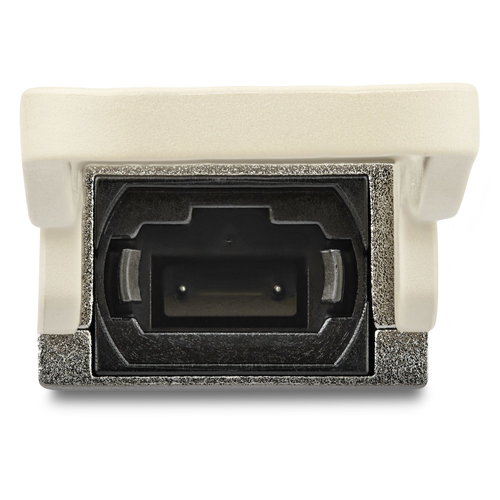

• Connection Type: MPO Connector
• Maximum Transfer Distance: 150 m (492 ft)
• MTBF: 244,610,583 hours
• Power Consumption: Low power consumption
• Digital Diagnostics Monitoring (DDM): Yes
This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

ON ORDER

SKU: 10319-ST

Manufacturer:

StarTech.com

RRP Price €414.93

Specifications

Performance

SFP transceiver type

Fiber optic

Maximum data transfer rate

40000 Mbit/s

Interface type

SFP+

Multi-mode fiber (MMF) supported

Yes

Fiber optic connector

MPO

SFP transceiver standard

SR4

Maximum transfer distance

150 m

Wavelength

850 nm

Fiber ethernet cabling technology

40GBASE

Duplex system

Full

Digital Diagnostics Monitoring (DDM)

Yes

Features

Product colour

Silver

Hot-swap

Yes

Mean time between failures (MTBF)

244610583 h

Brand compatibility

Extreme Networks

Compatible products

10319

Certificates

Compliance certificates

RoHS

Certification

CE, FCC, UR, REACH

Weight & dimensions

Width

122 mm

Depth

18.6 mm

Height

8.5 mm

Weight

37.5 g

Packaging content

Quantity per pack

1 pc(s)

Packaging data

Package width

90 mm

Package depth

115 mm

Package height

31 mm

Package weight

50 g

Logistics data

Master (outer) case width

90 mm

Master (outer) case length

115 mm

Harmonized System (HS) code

85369010

Master (outer) case height

31 mm

Products per master (outer) case

1 pc(s)

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.0375 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
