10G-SFPP-SR-ST - Cables & Adaptors by StarTech.com

10 Gbps | Multi Mode Fiber | LC | 200 m (656 ft) | Lifetime Warranty

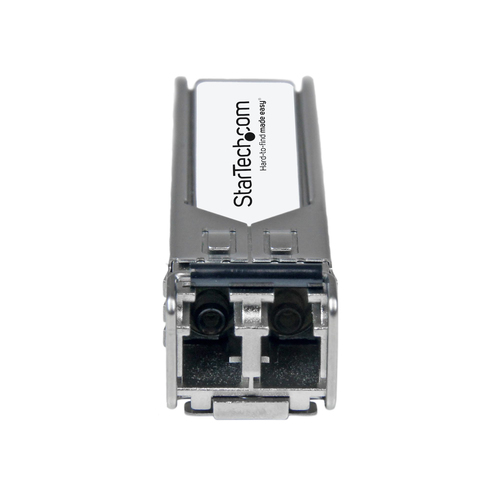

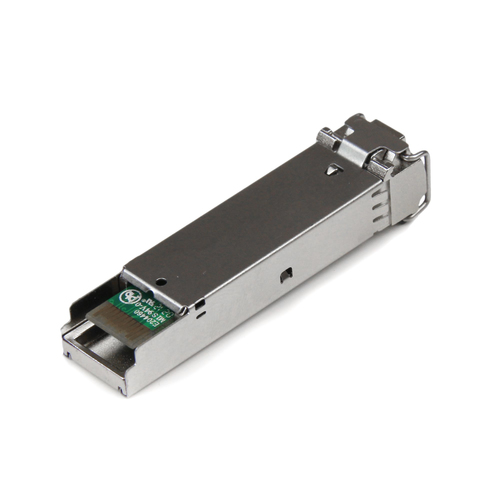

The 10G-SFPP-SR-ST is a Brocade 10G-SFPP-SR compatible fiber transceiver module that has been designed, programmed and tested to work with Brocade brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-SR compliant networks, with a maximum distance of up to 200 m (656 ft).

Technical Specifications:

• Wavelength: 850nm
• Maximum Data Transfer Rate: 10 Gbps
• Type: Multi Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 200 m (656 ft)
• MTBF: 498,745,585 hours
• Power Consumption:
• Digital Diagnostics Monitoring (DDM): Yes

This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

1 IN STOCK

RRP Price €51.63

Specifications

Performance

SFP transceiver type
Fiber optic
Maximum data transfer rate
10000 Mbit/s
Interface type
SFP+
Multi-mode fiber (MMF) supported
Yes
Fiber optic connector
LC
SFP transceiver standard
SR
Maximum transfer distance
200 m
Wavelength
850 nm
Fiber ethernet cabling technology
10GBASE
Digital Diagnostics Monitoring (DDM)
Yes

Features

Product colour
Silver
Hot-swap
Yes
Mean time between failures (MTBF)
498745585 h
Brand compatibility
Brocade
Compatible products
10G-SFPP-SR

Power

Power consumption (typical)
1 W

Certificates

Certification
CE, FCC, UR

Weight & dimensions

Width
58.4 mm
Depth
13.9 mm
Height
12.6 mm
Weight
20 g

Packaging content

Quantity per pack
1 pc(s)

Packaging data

Package width
90 mm
Package depth
115 mm
Package height
31 mm
Package weight
50 g

Logistics data

Master (outer) case width
90 mm
Master (outer) case length
115 mm
Harmonized System (HS) code
85369010
Master (outer) case height
31 mm
Products per master (outer) case
1 pc(s)

Accessories

License

Related Products
