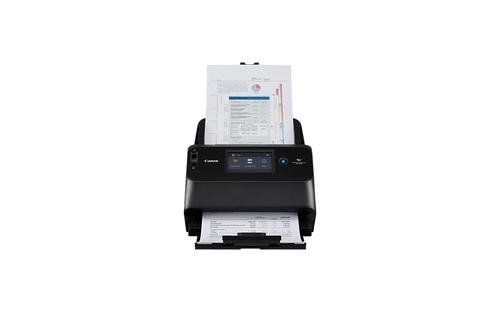

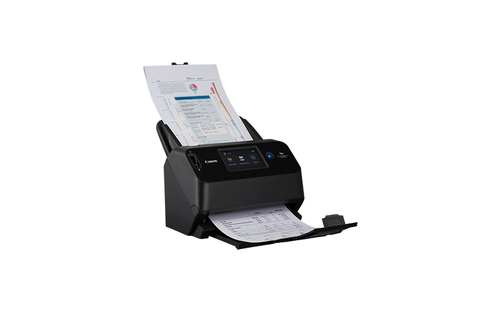

Canon imageFORMULA DR-S150 ADF + Manual feed scanner 600 x 600 DPI A4 Black

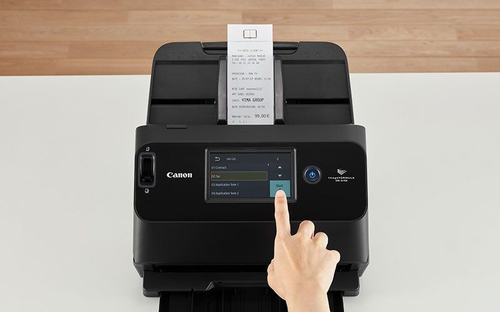

Intuitive, high-quality scanning with versatile connectivityDiscover fast, reliable and high-performance scanning, with easy operation via the large colour touch screen. LAN, WiFi or USB interface options allow flexible connectivity, for convenient use across all types of scanning applications and environments.Flexible connectivityUSB, LAN and Wi-Fi connection options for smooth integration.High performanceConsistently accurate colour image processing of up to 45ppm/90ipm.Maximised productivitySimple operation with a large 4.3” LCD colour touch screen and one-touch configurations.

ON ORDER

RRP Price €858.57

Specifications

Scanning

Maximum scan size
216 x 356 mm
Optical scanning resolution
600 x 600 DPI
Colour scanning
Yes
Duplex scanning
Yes
ADF scan speed (b/w, A4)
45 ppm
ADF scan speed (colour, A4)
45 ppm
Duplex ADF scan speed (b/w, A4)
90 ipm
Duplex ADF scan speed (colour, A4)
90 ipm

Design

Scanner type
ADF + Manual feed scanner
Product colour
Black
Display
LCD
Touchscreen
Yes
Colour display
Yes
Built-in display
Yes

Performance

Sensor type
CMOS CIS
Light source
RGB LED
Daily duty cycle (max)
4000 pages
Scan drivers
ISIS, TWAIN
Barcode reader
Yes

Input capacity

Auto document feeder (ADF) input capacity
60 sheets

Paper handling

Scanning media types supported
Business Card, Plastic Card
Maximum ISO A-series paper size
A4
Maximum scan width
21.6 cm
Maximum scan length
35.6 cm

Ports & interfaces

USB port
Yes
USB version
3.2 Gen 2 (3.1 Gen 2)
Standard interfaces
Ethernet, USB 3.2 Gen 1 (3.1 Gen 1), Wireless LAN

Network

Wi-Fi
Yes
Wi-Fi standards
802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN
Yes

Power

Power supply type
AC
Power consumption (typical)
22.5 W
Power consumption (off)
0.1 W
AC input frequency
50 - 60 Hz
Sleep mode
Yes
Input voltage
100 - 240 V
Power consumption (sleep)
3.4 W

Weight & dimensions

Width
291 mm
Depth
247 mm
Height
242 mm
Weight
3.3 kg

Packaging content

Bundled software
CaptureOnTouch Pro CaptureOnTouch JobTool Wireless Connection Setup Tool

System requirements

Windows operating systems supported
Windows 10, Windows 7, Windows 8.1
Server operating systems supported
Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Other features

Certification
EPEAT Gold

Logistics data

Harmonized System (HS) code
84716070
