40G-QSFP-LR4-ST - Cables & Adaptors by StarTech.com

40G-QSFP-LR4-ST - Cables & Adaptors by StarTech.com

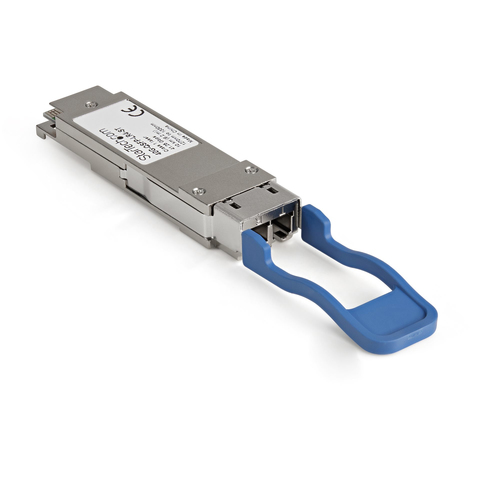

Name: StarTech.com Brocade 40G-QSFP-LR4 Compatible QSFP+ Module - 40GBASE-LR4 - 40GbE Single Mode Fiber SMF Optic Transceiver - 40GE Gigabit Ethernet QSFP+...
Brand: StarTech.com
SKU: 40G-QSFP-LR4-ST
Price: 1537.52 EUR
Availability: OutOfStock

40 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

The 40G-QSFP-LR4-ST is a Brocade 40G-QSFP-LR4 compatible fiber transceiver module that has been designed, programmed and tested to work with Brocade brand switches and routers. It delivers dependable 40 GbE connectivity over fiber cable, for 40GBASE-LR4 compliant networks, with a maximum distance of up to 10 km (6.2 mi).

Technical Specifications:

• Wavelength: 1270nm to 1330nm
• Maximum Data Transfer Rate: 40 Gbps
• Type: Single Mode
• Connection Type: MPO Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• MTBF: 95,832,027 hours
• Power Consumption:
• Digital Diagnostics Monitoring (DDM): Yes

This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

ON ORDER

RRP Price €1,537.52

Specifications

Performance

SFP transceiver type

Fiber optic

Maximum data transfer rate

40000 Mbit/s

Interface type

SFP+

Single-mode fiber (SMF) supported

Yes

Multi-mode fiber (MMF) supported

Fiber optic connector

MPO

SFP transceiver standard

LR4

Maximum transfer distance

10000 m

Wavelength

1330 nm

Fiber ethernet cabling technology

40GBASE

Digital Diagnostics Monitoring (DDM)

Yes

Features

Product colour

Silver

Hot-swap

Yes

Mean time between failures (MTBF)

95832027 h

Brand compatibility

Brocade

Compatible products

40G-QSFP-LR4

Power

Power consumption (typical)

1.3 W

Certificates

Certification

CE, FCC, UR

Weight & dimensions

Width

122 mm

Depth

18.3 mm

Height

8.5 mm

Weight

49 g

Packaging content

Quantity per pack

1 pc(s)

Packaging data

Package width

90 mm

Package depth

115 mm

Package height

31 mm

Package weight

50 g

Logistics data

Master (outer) case width

90 mm

Master (outer) case length

115 mm

Harmonized System (HS) code

85369010

Master (outer) case height

31 mm

Products per master (outer) case

1 pc(s)

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.049 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!
