450FBLCLC4PP - Cables & Adaptors by StarTech.com

Optimize fiber patch cabling in high-density patching applications where cables are prone to bending

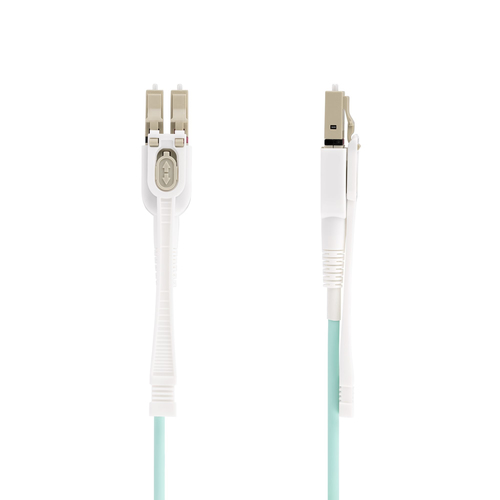

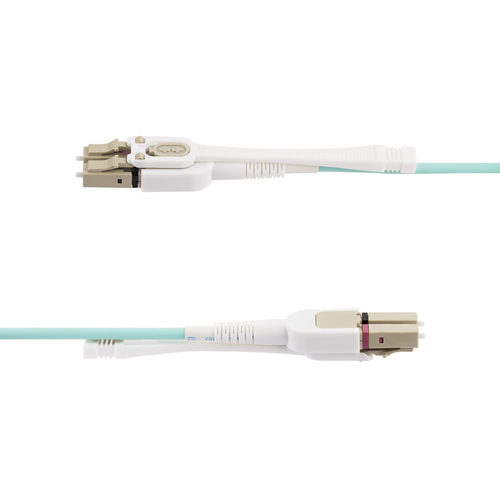

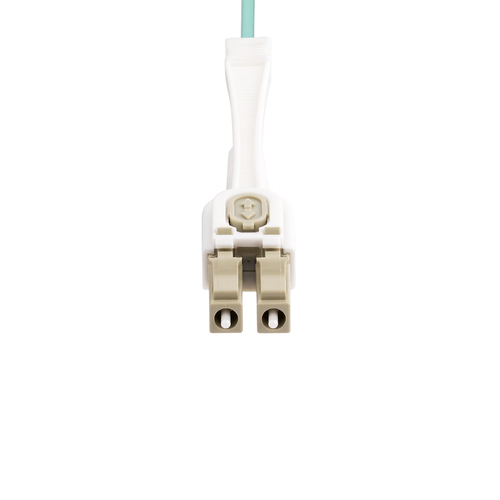

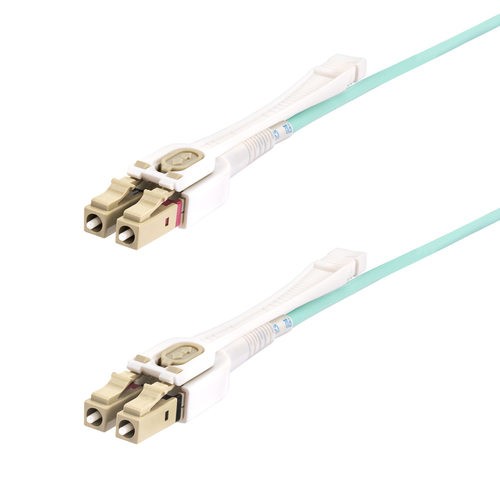

LC/UPC to LC/UPC OM4 Multimode Fiber Optic Cable enables 40/100G network connections. The push-pull tabs on each connector ensure quick connection and removal, facilitating accurate installation in high connection density environments. The bend-insensitive fiber and molded strain reliefs support cable runs requiring micro/macro bends while maintaining low attenuation. The retractable strain-relief housings enable toolless in-field polarity swapping. Color-coded LC-Duplex connectors ensure error-free polarity configuration.

Engineered for Optimal Performance

Precision-manufactured ceramic ferrules ensure accurate fiber alignment to prevent connectivity issues and minimize insertion loss. Designed for reliability in high-density network applications, the LC to LC UPC polished fiber ends greatly improves return loss characteristics. The Laser-Optimized Multi-Mode Fiber (LOMMF) OM4 fiber patch cable is ideal for 850nm and 1300nm Vertical-Cavity Surface-Emitting Laser (VCSEL) and LED sources.

Compatibility

This multimode 50/125µm fiber optic patch cord is backward compatible with OM3 and 1/10/40G networks, ensuring a reliable connection in legacy fiber environments.

LSZH Cable Jacket

Housed in a LSZH (Low-Smoke, Zero-Halogen) flame-retardant jacket, this OM4 fiber cable emits low smoke and toxic fumes when exposed to extreme heat or in the event of a fire. This enables safer cable installations in areas with poor ventilation including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where compliance with building codes must be considered.

Each OM4 fiber cable is also individually tested for insertion loss performance that meets or exceeds the TIA/EIA-568 industry standard, for guaranteed compatibility and 100% reliability.

The StarTech.com Advantage

36 IN STOCK

RRP Price €35.61

Specifications

Features

Cable length
4 m
Fibre optic type
OM4
Connector 1
LC
Connector 2
LC
Connector 1 gender
Male
Connector 2 gender
Male
Cable type
LOMM
Product colour
Aqua colour
Full duplex
Yes
Core diameter
50 µm
Cladding diameter
125 µm
Fiber mode structure
Multi-mode
Wavelengths supported
850,1300 nm
Data transfer rate
100 Gbit/s
Jacket material
Low smoke zero halogen (LSZH)

Sustainability

Sustainability compliance
Yes

Certificates

Compliance certificates
CE, RoHS

Operational conditions

Operating temperature (T-T)
-20 - 60 °C
Storage temperature (T-T)
-20 - 60 °C

Weight & dimensions

Cable diameter
2.9 mm
Bending radius
6 cm

Packaging data

Package width
220 mm
Package depth
200 mm
Package height
15 mm

Packaging content

Quantity per pack
1 pc(s)

Logistics data

Master (outer) case width
410 mm
Master (outer) case length
410 mm
Master (outer) case height
430 mm
Products per master (outer) case
240 pc(s)
