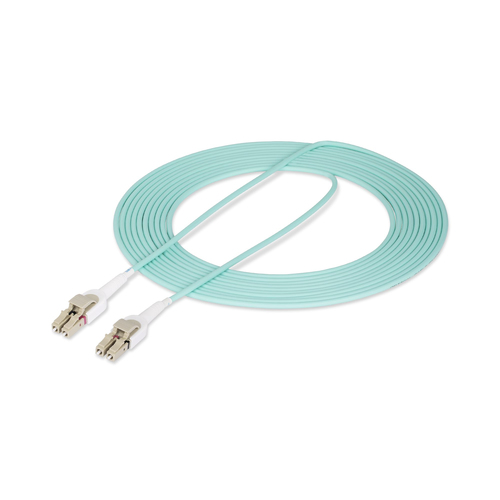

Name: StarTech.com 5m (16.4ft) LC to LC (UPC) OM4 Switchable Fiber Optic Cable 50/125µm, 100G, Toolless Polarity Switching, Low Insertion Loss - LSZH Fiber...
Brand: StarTech.com
SKU: 450FBLCLC5SW
Price: 45.23 EUR
Availability: InStock

Facilitate an OM4 fiber connection with toolless polarity swapping for seamless compatibility

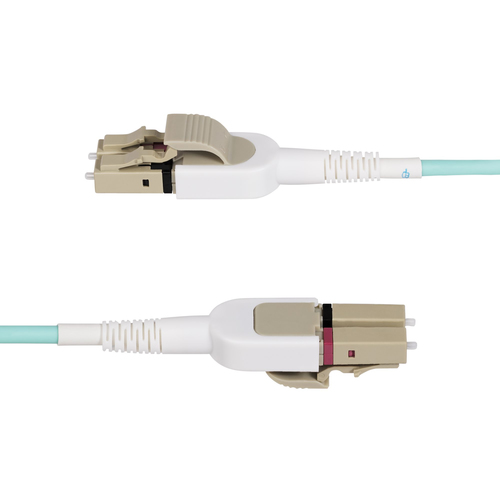

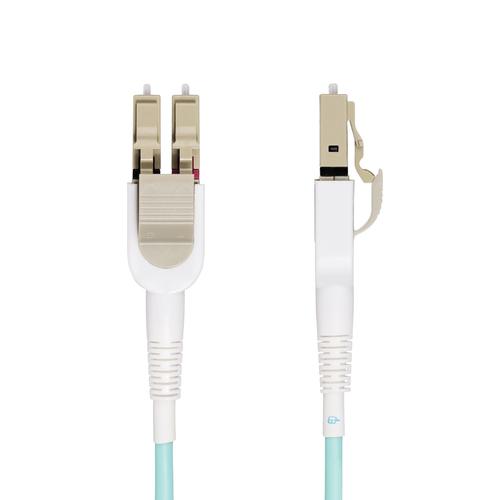

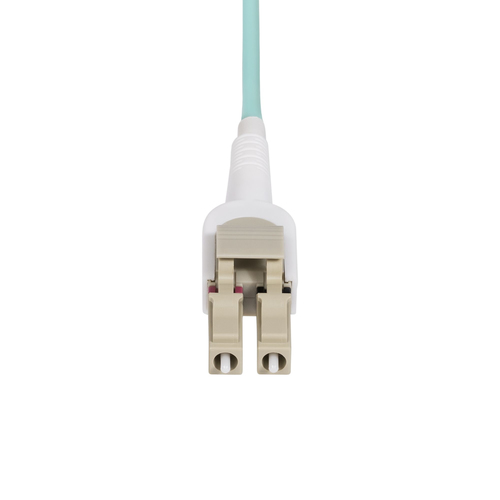

LC/UPC to LC/UPC OM4 Multimode Switchable Fiber Optic Cable enables 40/100G network connections. The retractable strain-relief housings enable toolless in-field polarity swapping. Color-coded LC-Duplex connectors ensure error-free polarity configuration.

Engineered for Optimal Performance

Precision-manufactured ceramic ferrules ensure accurate fiber alignment to prevent connectivity issues and minimize insertion loss. Designed for reliability in high-density network applications, the LC to LC UPC polished fiber ends greatly improves return loss characteristics. The Laser-Optimized Multi-Mode Fiber (LOMMF) OM4 fiber patch cable is ideal for 850nm and 1300nm Vertical-Cavity Surface-Emitting Laser (VCSEL) and LED sources.

Compatibility

This multimode 50/125µm fiber optic patch cord is backward compatible with OM3 and 1/10/40G networks, ensuring a reliable connection in legacy fiber environments.

LSZH Cable Jacket

Housed in a LSZH (Low-Smoke, Zero-Halogen) flame-retardant jacket, this OM4 fiber cable emits low smoke and toxic fumes when exposed to extreme heat or in the event of a fire. This enables safer cable installations in areas with poor ventilation including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where compliance with building codes must be considered.

Each OM4 fiber cable is also individually tested for insertion loss performance that meets or exceeds the TIA/EIA-568 industry standard, for guaranteed compatibility and 100% reliability.

The StarTech.com Advantage

5 IN STOCK

RRP Price €45.23

Specifications

Features

Cable length

5 m

Fibre optic type

OM4

Connector 1

Connector 2

Connector 1 gender

Male

Connector 2 gender

Male

Cable type

LOMM

Product colour

Aqua colour

Full duplex

Yes

Core diameter

50 µm

Cladding diameter

125 µm

Fiber mode structure

Multi-mode

Wavelengths supported

850,1300 nm

Data transfer rate

100 Gbit/s

Jacket material

Low smoke zero halogen (LSZH)

Sustainability

Sustainability compliance

Yes

Certificates

Compliance certificates

Operational conditions

Operating temperature (T-T)

-20 - 60 °C

Storage temperature (T-T)

-20 - 60 °C

Weight & dimensions

Cable diameter

2.9 mm

Bending radius

6 cm

Packaging content

Quantity per pack

1 pc(s)

Logistics data

Master (outer) case width

410 mm

Master (outer) case length

410 mm

Master (outer) case height

430 mm

Products per master (outer) case

200 pc(s)

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

N/A

Weight

0.05 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
