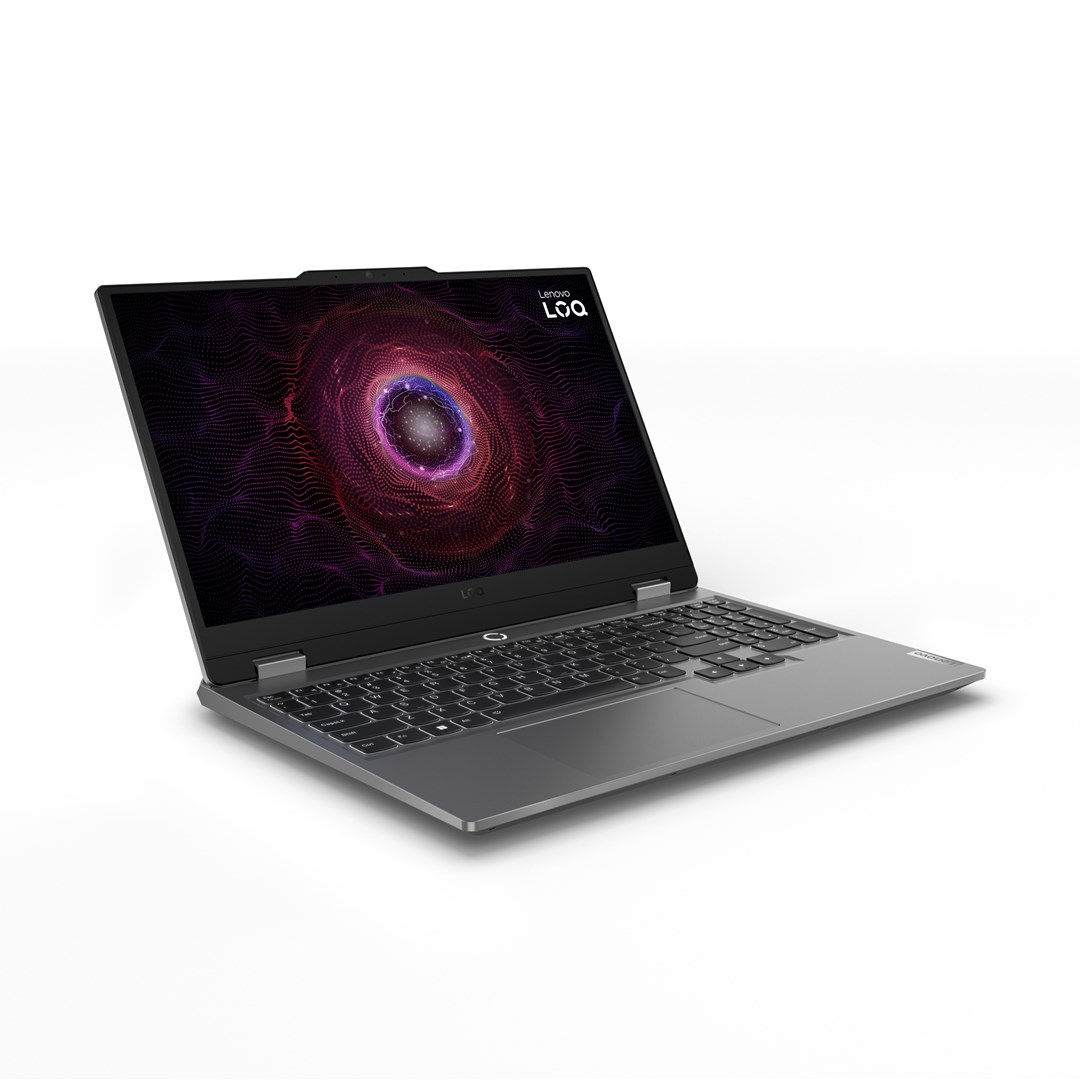

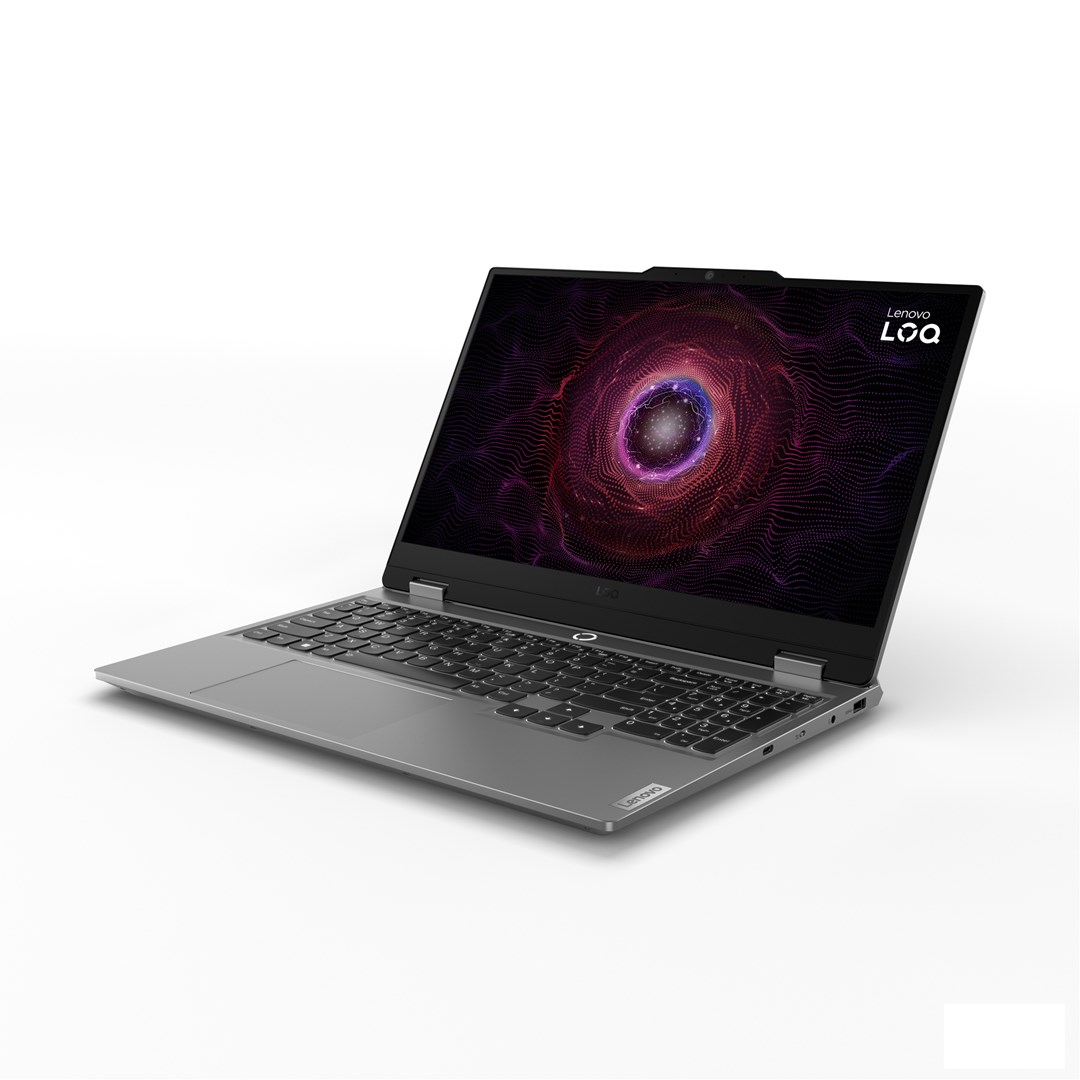

83JC0066PB - Laptops by Lenovo

The Cool Path to Gaming

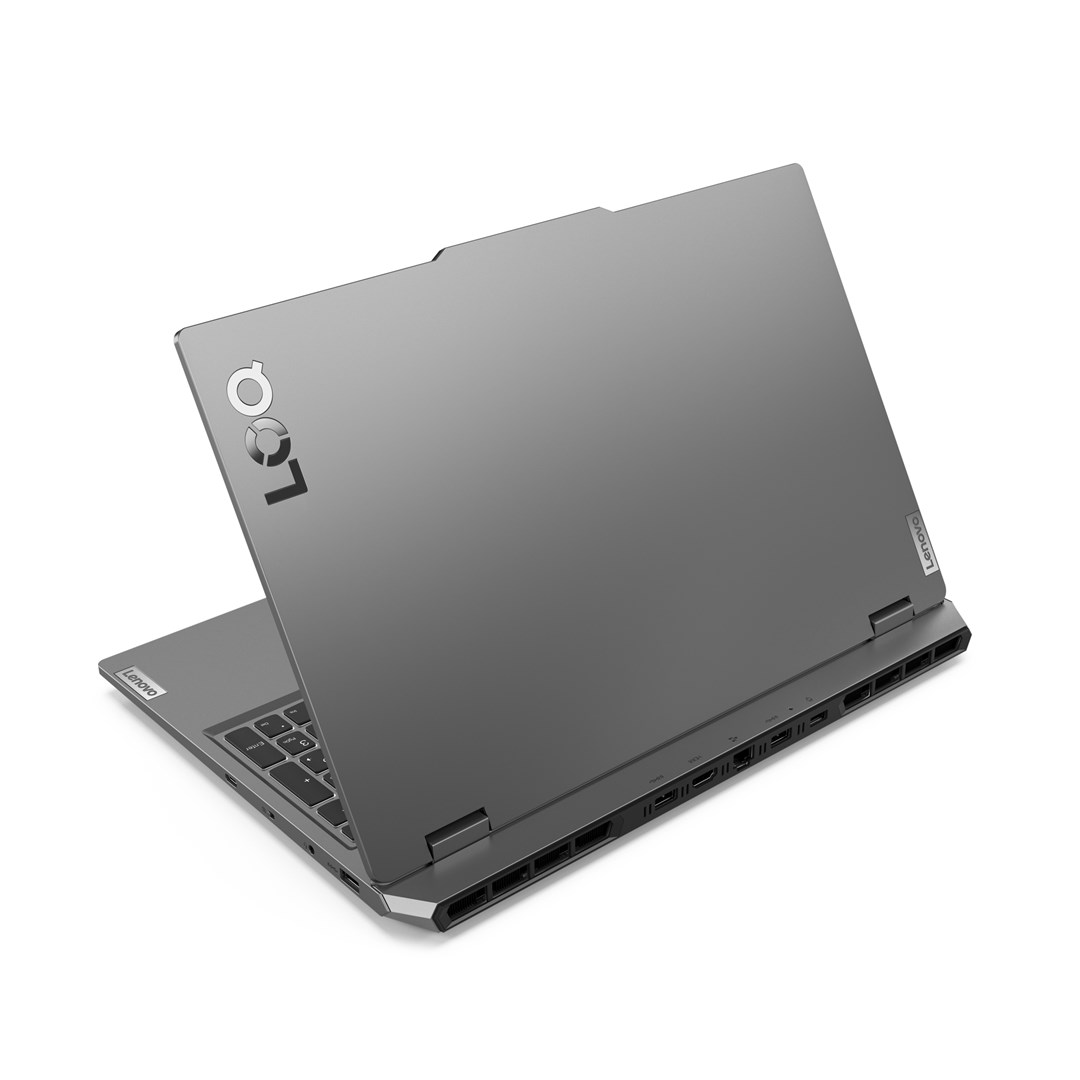

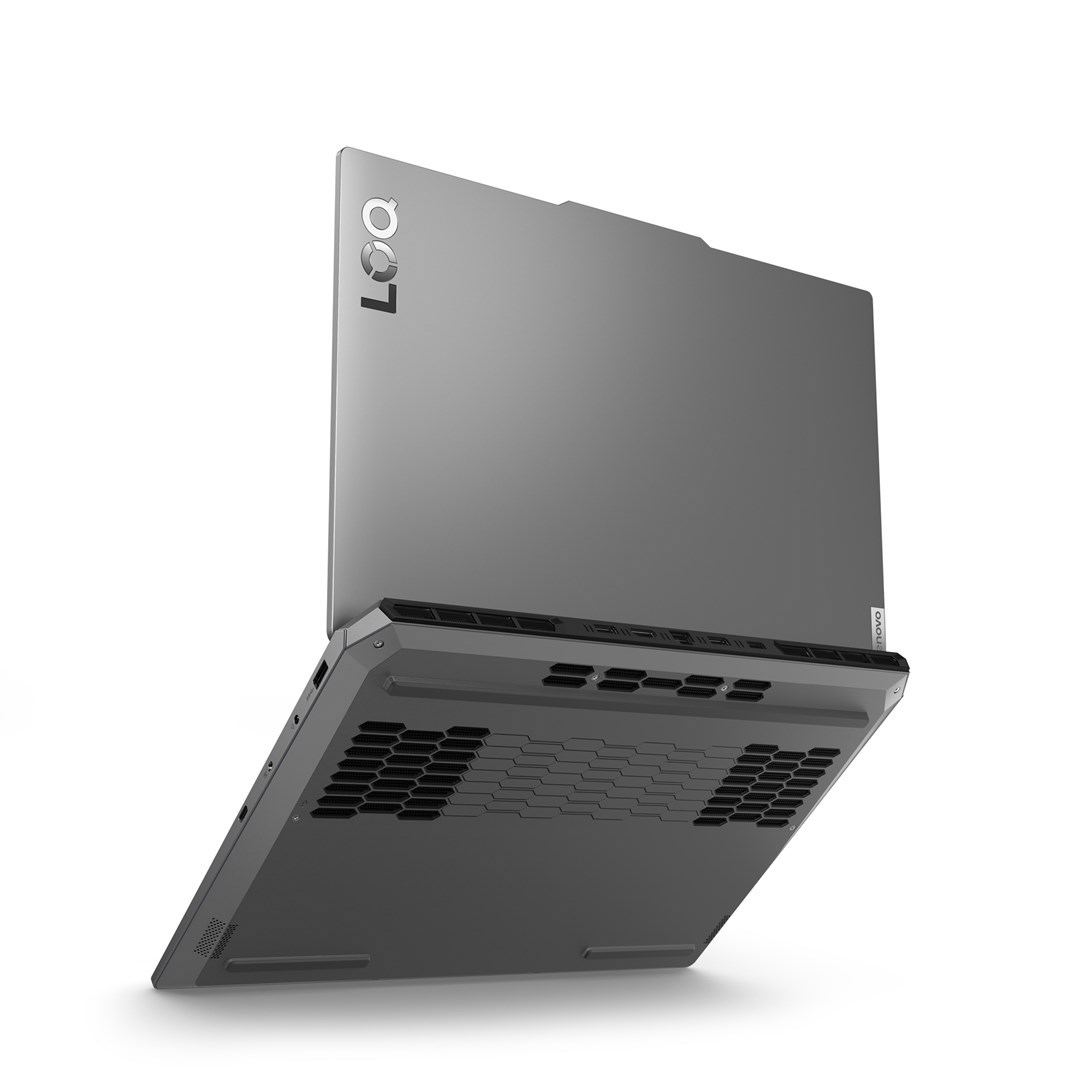

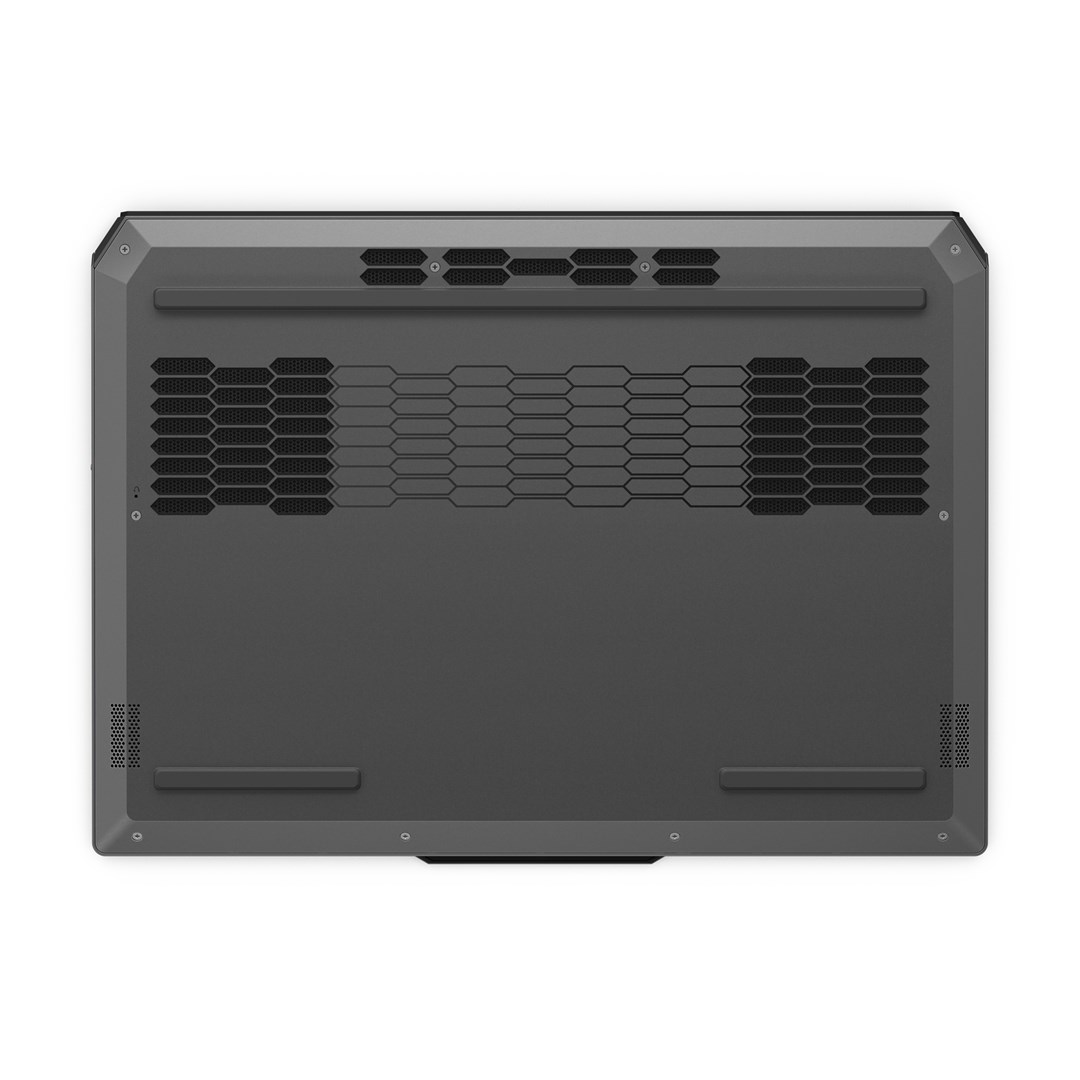

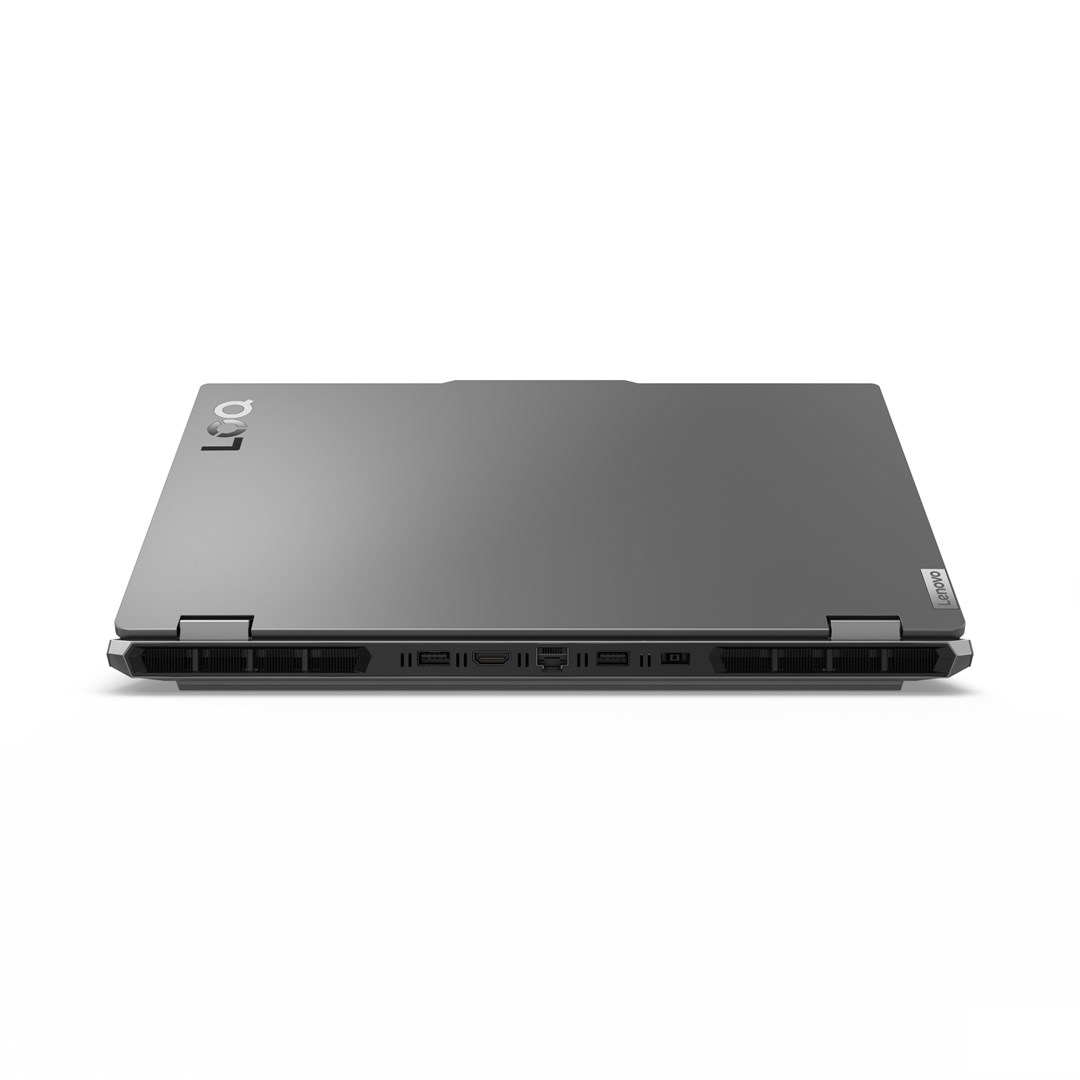

Discover a cooler gaming experience with our advanced thermal design. Dual 12V fans spin in opposite directions to enhance airflow and heat management. With exhausts smartly moved to the back, your gameplay stays uninterrupted by heat. Our sealed chamber circulates cool air, pushing hot air out the rear.

Unlock Your Potential with AI
Lenovo AI Engine+ with the LA1 AI chip ensures peak performance for all your tasks. Simplify your gaming and study routine by activating the Balance Mode in Lenovo Vantage and letting AI dynamically optimize your laptop's settings. No more manual adjustments, be it gaming or coding in Python.

Complete Your Gaming Setup
Thinking of setting up a sweet gaming station? Our accessories hit a balance of budget-consciousness and powerful performance, giving you the competitive edge you need in every battle. From gaming monitors with stunning visuals to gaming mice and keyboards for precision and style, we've got your input and output covered.

Nahimic® Audio by SteelSeries for Gamers, Immersive 3D Audio
Experience gaming on a new level with Nahimic by SteelSeries on the Lenovo LOQ 15ARP9. Designed specifically for gamers, it delivers immersive 3D audio that enhances your in-game journey. Communicate with your teammates in crystal-clear quality or mix and share audio streams like a professional.

Embrace the Lenovo Vantage
Lenovo Vantage allows you to optimize settings elevating your gaming experience. You can adjust, customize, and maximize your laptop’s capabilities through our all-in-one suite of tools. With our real-time performance dashboard, overclocking controls, and Custom Mode with fan control, nothing stands in the way of your success.

ON ORDER

RRP Price €0.00

Specifications

Design

Colour name
Luna grey
Product type
Laptop
Product colour
Grey
Form factor
Clamshell
Housing material
Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)
Market positioning
Gaming

Display

Display diagonal
39.6 cm (15.6")
Display resolution
1920 x 1080 pixels
Touchscreen
No
HD type
Full HD
Panel type
IPS
LED backlight
Yes
Native aspect ratio
16:9
Anti-glare screen
Yes
Display brightness
300 cd/m²
RGB colour space
sRGB
Colour gamut
100%
Maximum refresh rate
144 Hz
Contrast ratio (typical)
1000:1

Processor

Processor manufacturer
AMD
Processor family
AMD Ryzenâ„¢ 7
Processor generation
AMD Ryzen 7000 Series
Processor model
7435HS
Processor cores
8
Processor threads
16
Processor boost frequency
4.5 GHz
Processor frequency
3.1 GHz
L3 cache
16 MB
L2 cache
4 MB

Memory

Internal memory
24 GB
Internal memory type
DDR5-SDRAM
Memory clock speed
4800 MHz
Memory form factor
SO-DIMM
Memory layout (slots x size)
2 x 12 GB
Memory slots
2x SO-DIMM
Maximum internal memory
32 GB
Memory channels
Dual-channel

Storage

Total storage capacity
512 GB
Storage media
SSD
Total SSDs capacity
512 GB
Number of SSDs installed
1
SSD capacity
512 GB
SSD interface
PCI Express 4.0
NVMe
Yes
SSD form factor
M.2
Optical drive type
No
Card reader integrated
No

Graphics

Discrete GPU manufacturer
NVIDIA
Discrete graphics card model
NVIDIA GeForce RTX 4060
Discrete graphics card memory
8 GB
Discrete graphics memory type
GDDR6
On-board graphics card
No
Discrete graphics card
Yes
On-board graphics card model
Not available
NVIDIA G-SYNC
Yes

Audio

Audio chip
Realtek ALC3287
Audio system
Nahimic Audio
Number of built-in speakers
2
Speaker power
2 W
Built-in microphone
Yes
Number of microphones
2

Camera

Front camera
Yes
Front camera resolution
1280 x 720 pixels
Front camera HD type
HD
Privacy camera
Yes
Privacy type
Privacy shutter

Network

Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
Wi-Fi standards
Wi-Fi 6 (802.11ax)
Mobile network connection
No
Antenna type
2x2
Ethernet LAN
Yes
Ethernet LAN data rates
100,1000 Mbit/s
Bluetooth
Yes
Bluetooth version
5.2
WWAN
Not installed

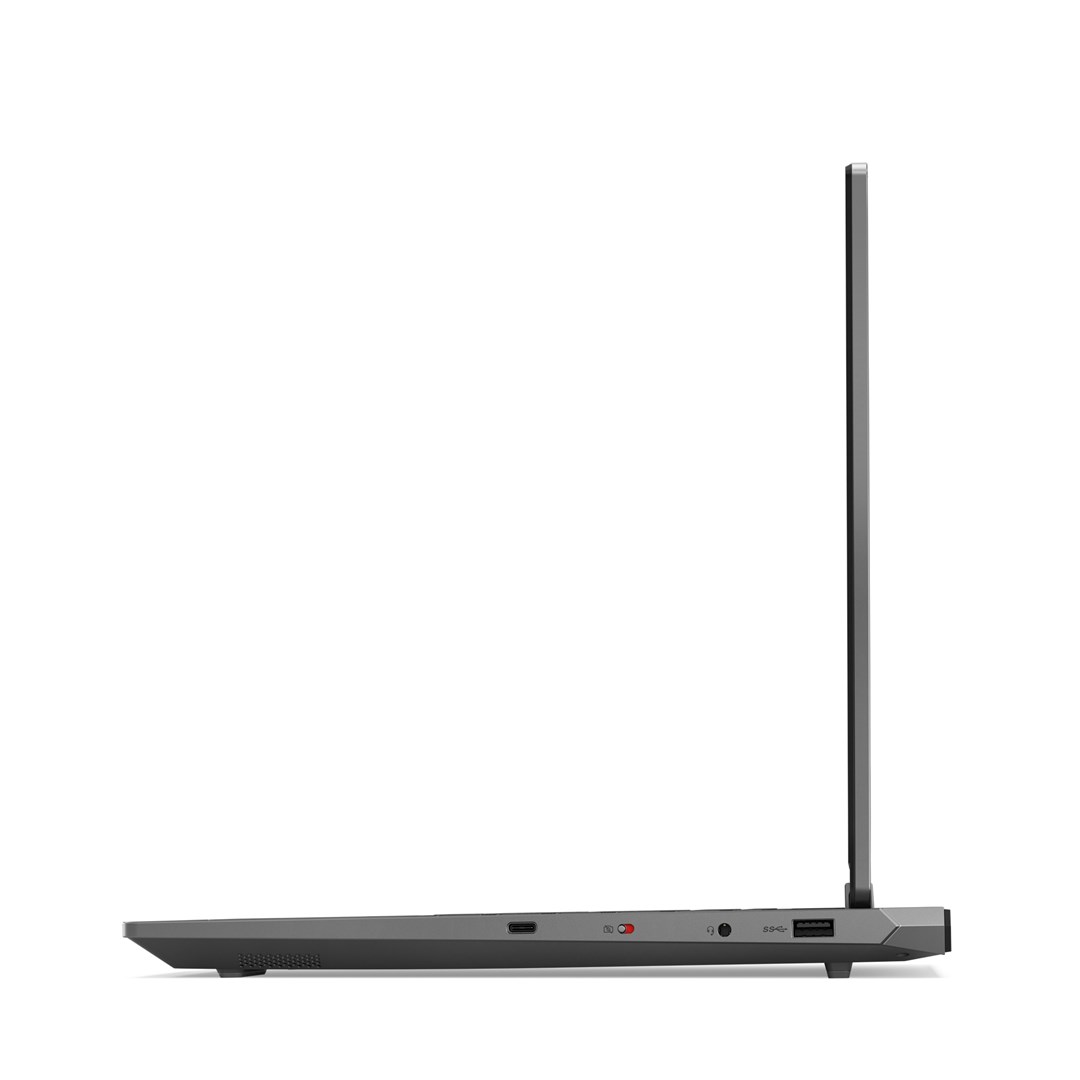

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI ports quantity
1
HDMI version
2.1
Combo headphone/mic port
Yes
USB Type-C DisplayPort Alternate Mode
Yes

Performance

Motherboard chipset
AMD SoC

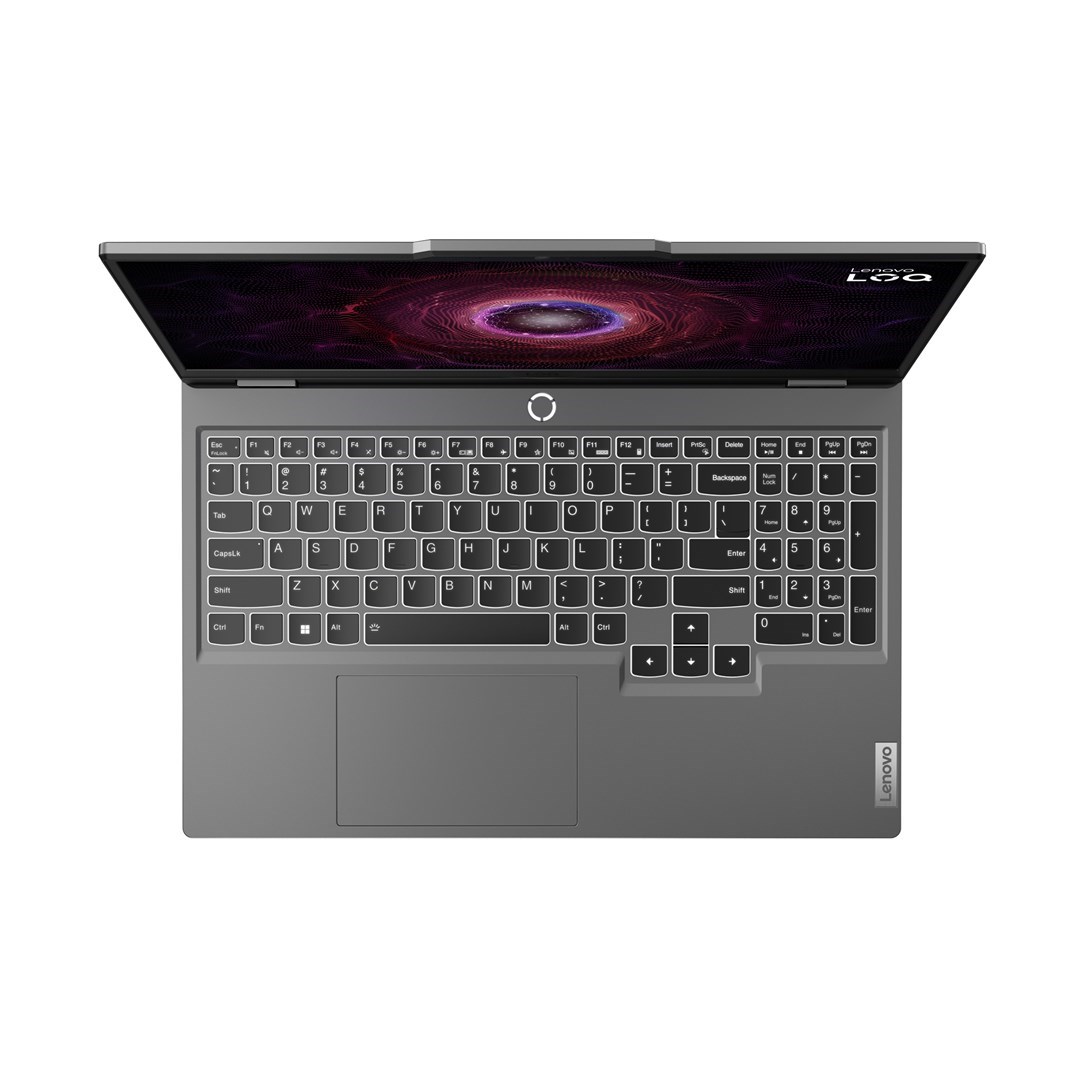

Keyboard

Pointing device
Touchpad
Numeric keypad
Yes
Keyboard backlit
Yes
Keyboard backlit colour
White
Keyboard language
Belgian

Software

Operating system architecture
64-bit
Operating system language
German, Dutch, English, French
Trial software
Office
Operating system installed
Windows 11 Home
Bundled software
Office Trial

Battery

Battery technology
Lithium Polymer (LiPo)
Battery capacity
60 Wh
Battery life (max)
3.8 h
Continuous video playback time
4 h
Fast charging
Yes
Fast charging time (50%)
30 min

Power

AC adapter power
170 W
AC adapter frequency
50/60 Hz
AC adapter input voltage
100 - 240 V
USB Type-C charging port
No
USB Power Delivery (USB PD)
Yes

Security

Fingerprint reader
No
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
2.0
Password protection
Yes
Password protection type
BIOS, Power on, Supervisor

Operational conditions

Operating temperature (T-T)
5 - 35 °C
Storage temperature (T-T)
5 - 43 °C
Operating relative humidity (H-H)
8 - 95%
Storage relative humidity (H-H)
5 - 95%
Maximum shipping altitude
3048 m

Certificates

Compliance certificates
RoHS
Certification
ErP Lot 3 TÜV Rheinland® Low Blue Light (Software Solution)

Weight & dimensions

Width
359.9 mm
Depth
258.7 mm
Height (front)
2.19 cm
Height (rear)
2.39 cm
Weight
2.38 kg

Packaging content

AC adapter included
Yes
Stylus pen
No

Accessories
