Poynting EPNT-1 network antenna Omni-directional antenna SMA 7.5 dBi

Poynting EPNT-1 network antenna Omni-directional antenna SMA 7.5 dBi

Name: Poynting EPNT-1 network antenna Omni-directional antenna SMA 7.5 dBi
Brand: Poynting
SKU: A-EPNT-0001-V2-01
Price: 259.91 EUR
Availability: OutOfStock

Poynting Antennas introduces the ePoynt series, an innovative antenna enclosure range designed to transform your LTE/5G router into high-performance Customer Premises Equipment (CPE). The EPNT-1 enclosure supports routers up to 185 x 145 x 45 mm³, delivering enhanced signal stability and throughput.

Seamless Router Integration: Designed to accommodate various LTE/5G router modules for easy plug-and-play setup.
Wideband 4x4 MIMO Antennas: Covers 617–4200 MHz, ensuring strong LTE & 5G connectivity with up to 3.8 dBi peak gain.
Omni-Directional Wi-Fi Support: Built-in dual-band Wi-Fi antennas (2.4 GHz & 5–7.2 GHz) for reliable 2x2 MIMO performance.
Optimised for Urban Deployments: Cross-polarised antennas enhance signal stability in built-up areas with multiple base stations.
Rugged & Weatherproof Design: IP65-rated enclosure ensures durability in harsh outdoor conditions.
The EPNT-1 is the ideal solution for LTE & 5G deployments, providing a powerful, all-in-one antenna and enclosure for enhanced connectivity.

ON ORDER

SKU: A-EPNT-0001-V2-01

Manufacturer: Poynting

RRP Price €259.91

Specifications

Performance

Frequency band

0.617 - 4.2 GHz

Networking standards

IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11g, IEEE 802.11n

Antenna gain level (max)

7.5 dBi

Features

Antenna type

Omni-directional antenna

Antenna connector type

SMA

Connector gender

Male

Product colour

White

International Protection (IP) code

IP65

Cable length

0.25 m

Mounting

Wall/Pole

Purpose

Indoor & outdoor

Certificates

Sustainability compliance

Yes

Operational conditions

Operating temperature (T-T)

-40 - 80 °C

Storage temperature (T-T)

-40 - 80 °C

Storage relative humidity (H-H)

5 - 95%

Weight & dimensions

Width

260 mm

Depth

168 mm

Height

264 mm

Weight

1.03 kg

Packaging data

Package width

450 mm

Package depth

180 mm

Package height

270 mm

Package weight

1.78 kg

Packaging content

Quantity per pack

1 pc(s)

Description

Manufacturer

Poynting

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

1.035 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!

Related Products

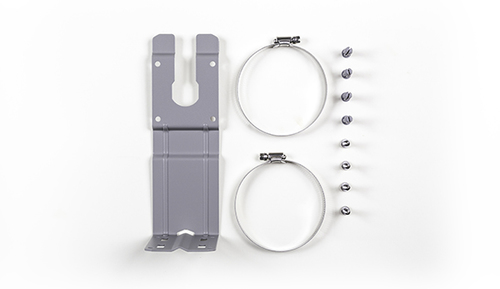

Cisco Meraki MA-MNT-ANT-4 mounting kit Silver, White Steel Antennas

Mounting hardware and cables included

€140.16

Cisco Meraki MA-ANT-3-D5 network antenna Omni-directional antenna RP-TNC 3.7 dBi Antennas

The Downtilt Panel Omnidirectional antenna is ideal for medium ceiling (8 ft - 25 ft) aesthetic consensus installations. Some example uses are medium-density deployments like cube office space and vestibules. This antenna supports Meraki’s smart antenna capabilities. The price shown is for a 5-connector model; the Downtilt Panel Omni antenna can be purchased with 5 or 6 connectors.

€564.90

Cisco Meraki MA-ANT-3-C6 network antenna Omni-directional antenna RP-TNC 4.9 dBi Antennas

The Panel Omni antenna is ideal for low ceiling aesthetic consensus installations where wall penetration or extended reach are important. Some example uses are low density deployments like schools and hotels to provide basic low performance connectivity. These types of best effort deployments usually have APs installed in the hallway to cover adjacent rooms. This antenna supports Meraki’s smart antenna capabilities. The price shown is for a 5-connector model; the Panel Omni antenna can be purchased with 5 or 6 connectors.

€706.48

Cisco Meraki MA-ANT-3-C5 network antenna Omni-directional antenna RP-TNC 4.9 dBi Antennas

€564.90

Cisco Meraki MA-ANT-3-A6 network antenna Omni-directional antenna RP-TNC 5.5 dBi Antennas

The Dipole antenna is ideal for low ceiling installations where wall penetration or extended reach are important. Some example uses are low-density deployments like schools and hotels to provide basic low-performance connectivity. These types of best effort deployments usually have APs installed in the hallway to cover adjacent rooms.

€281.74

Poynting LPDA-92 network antenna Directional antenna SMA 11 dBi Antennas

This high-gain, wideband, directional antenna is designed to cover all international cellular, mobile, and wireless data bands, including GSM 900, GSM 1800, UMTS, and LTE. It also supports extended cellular and WiMAX bands, such as the European/USA Digital Dividend bands and the 2.3–2.7 GHz licensed and unlicensed data bands, ensuring compatibility with various wireless communication systems.Ultra-Wideband Coverage: Supports GSM, UMTS, LTE, and WiMAX bands, ensuring seamless connectivity.Consistent High-Gain Performance: Delivers reliable signal strength across all supported frequencies.Optimised for Wireless Communication Systems: Ideal for use in LTE, HSPA, 3G, EDGE, and GPRS networks.Proven Reliability: Successfully deployed in extreme weather conditions across Africa and Europe with near-zero failure rates.Ideal for Challenging Signal Environments: A trusted solution in areas where network operators face signal challenges.This high-performance antenna is the perfect choice for enhancing mobile and wireless data connectivity, offering robust and reliable performance in even the most demanding environments.

€245.52

Poynting LPDA-92 network antenna Directional antenna SMA 11 dBi Antennas

€115.36

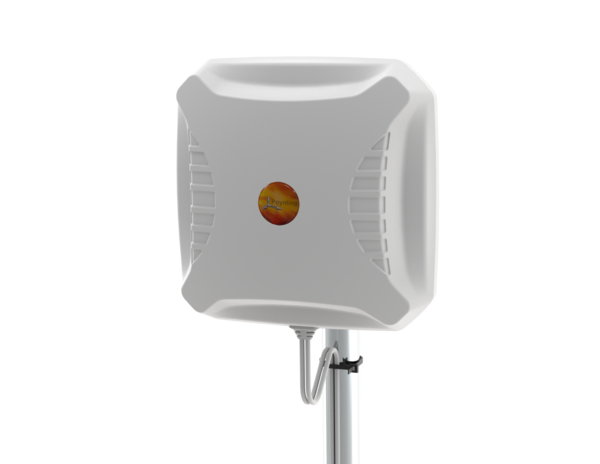

Poynting XPOL-16 network antenna Omni-directional antenna SMA 8 dBi Antennas
