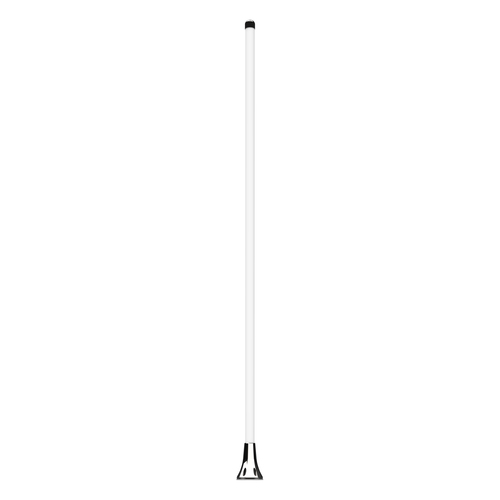

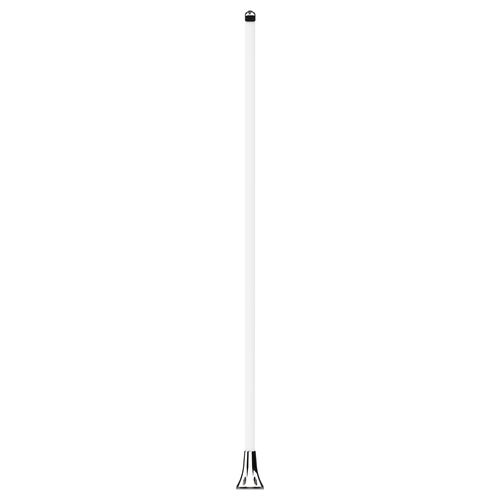

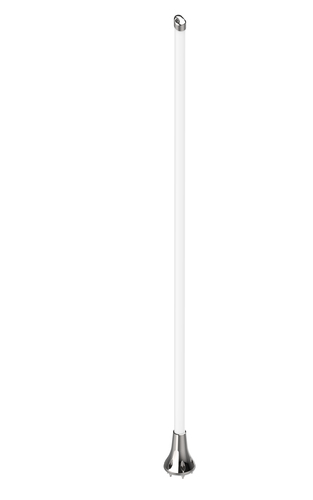

Poynting OMNI-914 network antenna Omni-directional antenna N-type 8 dBi

Poynting OMNI-914 network antenna Omni-directional antenna N-type 8 dBi

Name: Poynting OMNI-914 network antenna Omni-directional antenna N-type 8 dBi
Brand: Poynting
SKU: A-OMNI-0914-V1-02
Price: 2495.81 EUR
Availability: OutOfStock

The OMNI-914 is a high-gain, ultra-wideband antenna designed to provide exceptional performance across all contemporary LTE/5G frequency bands. Covering a wide range from 617 to 4200 MHz, this antenna ensures reliable connectivity with balanced gain across all frequencies. Its robust design and superior omni-directional pattern control make it ideal for demanding marine and coastal applications.

Ultra-Wideband Frequency Coverage: Supports LTE/5G bands from 617 to 4200 MHz, including LTE Band 71 and CBRS bands from 3400 to 4200 MHz.
True Omni-Directional 4x4 MIMO: Features four high-gain omni-directional antennas with vertically separated radiating elements within a single radome.
Superior Pattern Control: Ensures consistent performance across all frequency bands, maximising signal reception and connectivity.
Marine-Grade Durability: Fully saltwater protected with a durable fiberglass radome, designed for highly corrosive environments.
IP68 Protection Rating: Provides complete resistance against dust and water ingress, making it ideal for severe storm conditions at sea.
Future-Proof Design: Supports next-generation LTE and 5G networks, ensuring long-term connectivity solutions.
The OMNI-914 guarantees reliable signal reception worldwide, making it an ideal choice for marine, coastal, and inland applications requiring robust and future-proof LTE/5G connectivity.

Ideal Applications
- Marine applications: Super Yachts / Boats / Ferries
- Enhanced LTE/4G and 5G reception
- Increase system transmission reliability
- High-end industrial grade router applications
- Industrial and commercial LTE/5G deployment
- Agricultural and farming LTE/5G data distribution

ON ORDER

SKU: A-OMNI-0914-V1-02

Manufacturer: Poynting

RRP Price €2,495.81

Specifications

Performance

Frequency band

0.617 - 0.96 / 1.427 - 1.517 / 1.71 - 2.7 / 3.4 - 4.2 GHz

Impedance

50 Ω

Antenna gain level (max)

8 dBi

Features

Antenna type

Omni-directional antenna

Antenna connector type

N-type

Connector gender

Female

Polarization

Linear, vertical

Voltage Standing Wave Ratio (VSWR)

≤2.5:1

Product colour

Stainless steel, White

Housing material

Fibreglass, Stainless steel

Protection features

Saltwater resistant, UV resistant

International Protection (IP) code

IP68

Ultraviolet (UV) resistant

Yes

Survival wind speed

190 km/h

Mounting

Universal

Purpose

Indoor & outdoor

Certificates

Certification

MIL-STD 810G/ASTM B117

Operational conditions

Operating temperature (T-T)

-40 - 80 °C

Operating relative humidity (H-H)

5 - 95%

Weight & dimensions

Height

2454 mm

Diameter

14.5 cm

Weight

5.88 kg

Packaging data

Package width

2550 mm

Package depth

180 mm

Package height

210 mm

Package weight

9.4 kg

Mobile network

4G standard

LTE

Packaging content

Quantity per pack

1 pc(s)

Mounting brackets included

Yes

Description

Manufacturer

Poynting

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

5.88 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
