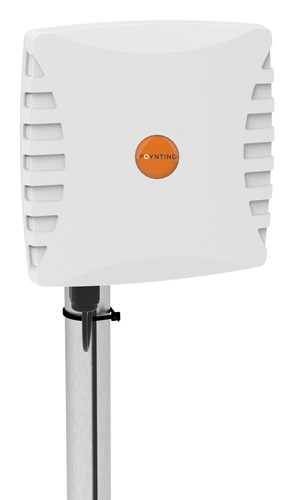

Poynting PATCH-25 network antenna Directional antenna N-type 8.8 dBi

Poynting PATCH-25 network antenna Directional antenna N-type 8.8 dBi

Name: Poynting PATCH-25 network antenna Directional antenna N-type 8.8 dBi
Brand: Poynting
SKU: A-PATCH-0025-V2-02
Price: 126.59 EUR
Availability: OutOfStock

The PATCH-25 antenna is designed for seamless operation across both EU and USA RFID bands, ensuring reliable and efficient performance. With a water-resistant design and easy installation, this antenna is ideal for RFID applications requiring stable connectivity in various environments. Its circular polarisation allows for consistent reading in any orientation, enhancing usability.

- Dual-Region RFID Compatibility: Covers both EU and USA RFID frequency bands for global usability.
- Circularly Polarised for Reliable Reading: Ensures accurate RFID tag detection in any orientation.
- Enhanced Indoor GSM Coverage: Circular polarisation improves signal reception for indoor GSM applications.
- Optimised VSWR & Gain Performance: VSWR is typically less than 1.3:1, providing a return loss better than 20 dB.
- Water-Resistant & Easy to Install: Designed for durability and simple integration into various environments.

The PATCH-25 is a unique and high-performing solution for RFID applications, offering superior VSWR and gain specifications for stable and efficient operation.

ON ORDER

SKU: A-PATCH-0025-V2-02

Manufacturer: Poynting

RRP Price €126.59

Specifications

Performance

Frequency band

0.86 - 0.96 GHz

Impedance

50 Ω

Antenna gain level (max)

8.8 dBi

Features

Antenna type

Directional antenna

Antenna connector type

N-type

Connector gender

Female

Polarization

Circular polarization

Voltage Standing Wave Ratio (VSWR)

<1.3:1

Product colour

White

Housing material

Acrylonitrile butadiene styrene (ABS)

International Protection (IP) code

IP65

Survival wind speed

160 km/h

Cable length

3 m

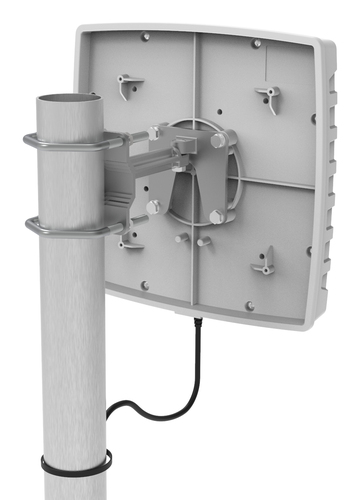

Mounting

Pole

Purpose

Indoor & outdoor

Certificates

Compliance certificates

CE, RoHS

Certification

MIL-STD 810G/ASTM B117

Operational conditions

Operating temperature (T-T)

-40 - 80 °C

Storage relative humidity (H-H)

5 - 95%

Weight & dimensions

Width

257 mm

Depth

253 mm

Height

56 mm

Weight

570 g

Packaging data

Package width

335 mm

Package depth

250 mm

Package height

95 mm

Package weight

700 g

Packaging content

Quantity per pack

1 pc(s)

Bolts included

Yes

Description

Manufacturer

Poynting

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.57 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
