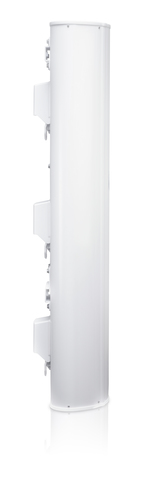

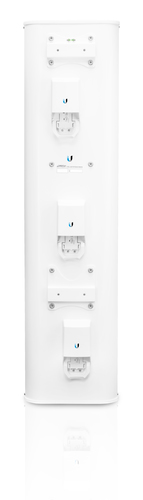

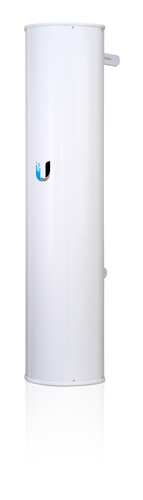

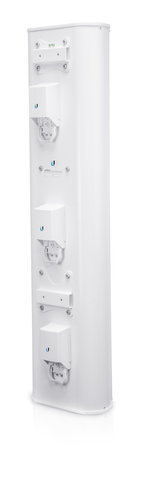

Ubiquiti AP-5AC-90-HD network antenna Sector antenna RP-SMA 22 dBi

5 GHz, 3x30° HD Sector Antenna
The innovative airPrism® Antenna features significant advances in noise isolation and beam performance for co‑location deployments in a multipoint network.

3 x 30° Beamwidth Coverage
The three Rocket5ac Prism™ radios are installed at the top, middle, and bottom of the airPrism antenna. Each radio independently transmits and receives within its corresponding 30° beamwidth.

Powerful Performance
Highly resistant to noise interference, the airPrism antenna provides superior beam performance in
high-density areas for high-capacity, multipoint networks.

Breakthrough Design
Mounted on a single airPrism antenna, three Rocket5ac Prism radios maximize throughput in an efficient
tower footprint, minimizing installation and tower costs.

ON ORDER
SKU: AP-5AC-90-HD
Manufacturer:
Ubiquiti Ubiquiti

RRP Price €523.95

Specifications

Performance

Frequency band
5.15 - 5.85 GHz
Horizontal beam width
30°
Vertical beam width
30°
Antenna gain level (max)
22 dBi

Features

Antenna type
Sector antenna
Antenna connector type
RP-SMA
Polarization
Dual polarization
Voltage Standing Wave Ratio (VSWR)
1.75:1
Product colour
White
Survival wind speed
200 km/h
Purpose
Outdoor
Isolation
30 dB

Certificates

Certification
CE, FCC, IC

Weight & dimensions

Width
322.6 mm
Depth
201.5 mm
Height
1300 mm
Weight
13.1 kg

Packaging content

Quantity per pack
1 pc(s)

Logistics data

Harmonized System (HS) code
85177100
