BPCAL02-I3XA - Computer Systems by Shuttle

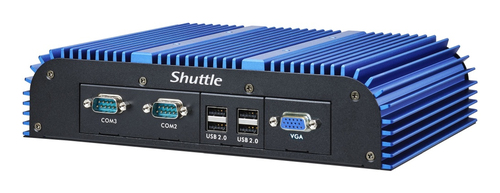

Shuttle BPCAL02-i3XA is a fully-configured fanless Box-PC with Intel Core-i3 processor of the 12th Generation (Alder Lake) in a ruggedized box design for high durability. This fixed configuration comes with a selection of pre-installed I/O extensions for a wide range of industrial applications.

ON ORDER

RRP Price €1,086.05

Specifications

Processor

Processor manufacturer
Intel
Processor family
Intel® Core™ i3
Processor generation
12th gen Intel® Core™ i3
Processor model
i3-1215U
Processor cores
6
Processor threads
8
Processor boost frequency
4.4 GHz
Performance cores
2
Efficient cores
4
Performance-core Max Turbo Frequency
4.4 GHz
Efficient-core Max Turbo Frequency
3.3 GHz
Processor cache
10 MB
Processor cache type
Smart Cache
Number of processors installed
1
Processor base power
15 W
Maximum turbo power
55 W

Memory

Internal memory
8 GB
Maximum internal memory
64 GB
Internal memory type
DDR5-SDRAM
Memory slots
2x SO-DIMM
Memory clock speed
4800 MHz

Storage

Total storage capacity
128 GB
Storage media
SSD
Optical drive type
No
Total SSDs capacity
128 GB
Number of SSDs installed
1
SSD capacity
128 GB
SSD interface
PCI Express
NVMe
Yes
SSD form factor
M.2
M.2 SSD size
2280 (22 x 80 mm)

Graphics

Discrete graphics card
No
On-board graphics card
Yes
Discrete graphics card model
Not available
On-board GPU manufacturer
Intel
On-board graphics card family
Intel® UHD Graphics
On-board graphics card model
Intel® UHD Graphics

Network

Ethernet LAN
Yes
Ethernet LAN data rates
2500 Mbit/s
LAN controller
Intel I226-V
Wi-Fi
No

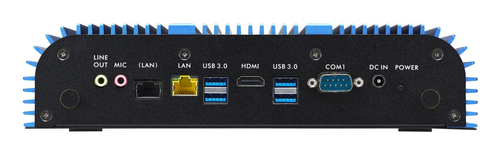

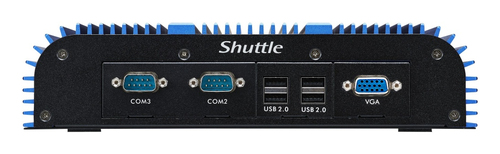

Ports & interfaces

USB 2.0 ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
4
VGA (D-Sub) ports quantity
1
HDMI ports quantity
1
HDMI version
2.0b
Ethernet LAN (RJ-45) ports
2
Microphone in
Yes
Headphone outputs
1
DC-in jack
Yes
Serial ports quantity
3

Design

Chassis type
USFF
Volume
2.7 L
VESA mounting
Yes
Product colour
Black, Blue
Housing material
Aluminium, Steel

Performance

Market positioning
Industry
Audio chip
RealTek ALC888S
Password protection
Yes
BIOS type
UEFI AMI
Trusted Platform Module (TPM)
Yes
Product type
Mini PC
Trusted Platform Module (TPM) version
2.0

Software

Operating system installed
No
Compatible operating systems
Windows 10/11 (64-bit), Linux (64-bit)

Power

Power supply
90 W
Power supply input voltage
100 - 240 V
Power supply input frequency
50/60 Hz

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
0 - 90%

Certificates

Compliance certificates
BSMI, CB, CE, Federal Communications Commission (FCC), RCM, RoHS, VCCI, cTUVus

Sustainability

Sustainability certificates
ErP

Weight & dimensions

Width
245 mm
Depth
169 mm
Height
57 mm
Weight
2.85 kg

Logistics data

Harmonized System (HS) code
84714900

Display

Display included
No
