BPCAL02-I5 - Computer Systems by Shuttle

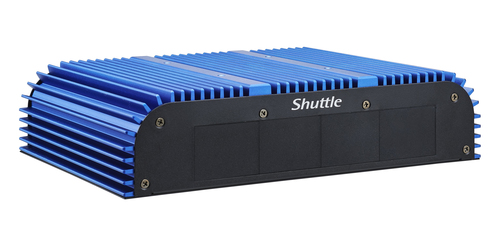

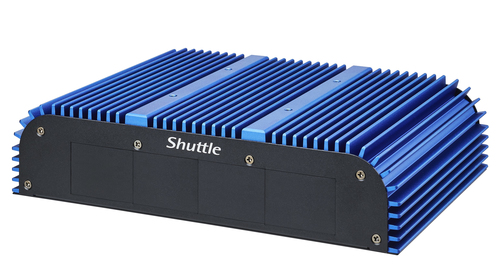

Fanless Box-PC with Intel Core processor in a robust chassis

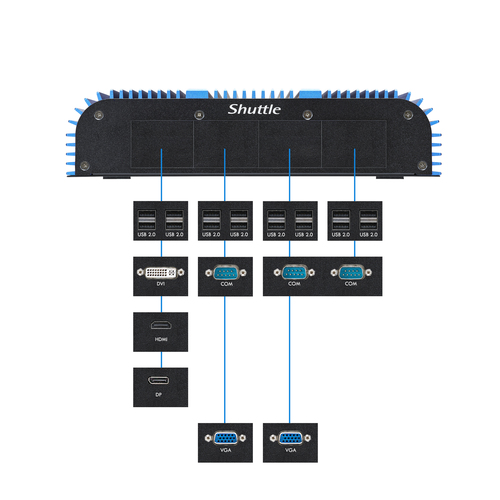

Shuttle's BPCAL02 fanless Box-PC Series is fueled by Intels 12th Generation (Alder Lake) Core processors in a ruggedized box design for high durability. It comes with modular I/O expansion capabilities and various mounting options. With advanced technology and highly flexible design, this industrial PC offers a reliable solution for a wide range of customized requirements in industrial environments.

ON ORDER

RRP Price €908.43

Specifications

Processor

Processor manufacturer
Intel
Processor family
Intel® Core™ i5
Processor generation
12th gen Intel® Core™ i5
Processor model
i5-1235U
Processor cores
10
Processor threads
12
Processor boost frequency
4.4 GHz
Performance cores
2
Efficient cores
8
Performance-core Max Turbo Frequency
4.4 GHz
Efficient-core Max Turbo Frequency
3.3 GHz
Built-in processor
Yes
Processor cache
12 MB
Thermal Design Power (TDP)
15 W
ECC supported by processor
No

Memory

Memory slots type
SO-DIMM
Number of memory slots
2
Maximum internal memory
64 GB
Supported memory clock speeds
4800 MHz
Supported memory types
DDR5-SDRAM
Memory channels
Dual-channel
Memory voltage
1.1 V

Storage

Supported storage drive types
SSD
Storage drive sizes supported
M.2
SSD form factor
M.2
Storage drive interface
PCI Express, Serial ATA III
NVMe
Yes
Number of storage drives supported
1

Graphics

On-board graphics card
Yes
Graphics card family
Intel
On-board graphics card model
Intel Iris Xe Graphics
Maximum resolution
3840 x 2160 pixels

Audio

Built-in speaker(s)
No

Network

Ethernet LAN
Yes
Wi-Fi
No
LAN controller
Intel I226-V

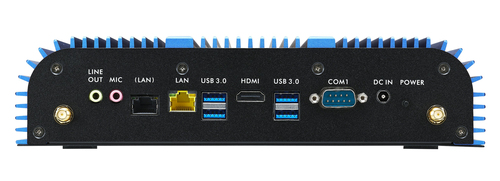

Ports & interfaces

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
4
HDMI ports quantity
1
HDMI version
2.0b
Microphone in
Yes
Headphone outputs
1
Ethernet LAN (RJ-45) ports
2
Serial ports quantity
1
DC-in jack
Yes

Expansion slots

Number of M.2 (M) slots
1

Design

Chassis type
2.6L sized PC
Product colour
Black, Blue
Cooling type
Passive
Housing material
Aluminium, Steel
VESA mounting
Yes
Panel mounting interface
75 x 75 mm
Product type
Mini PC barebone

Performance

BIOS type
UEFI AMI
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
2.0
Audio chip
Realtek ALC888S

Technical details

Compliance certificates
BSMI, CB, CE, Federal Communications Commission (FCC), RCM, RoHS, VCCI, cTUVus

Logistics data

Harmonized System (HS) code
84733080

Sustainability

Sustainability certificates
Certified Enviro Cranberries (CEC), ErP

Power

Power supply type
External AC adapter
Power supply
90 W
Number of power supply units
1
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
AC adapter output voltage
19 V
AC adapter output current
4.74 A

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
20 - 80%

Weight & dimensions

Width
245 mm
Depth
169 mm
Height
57 mm
Weight
2.85 kg

Packaging content

AC adapter included
Yes
