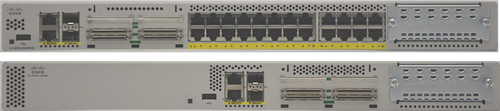

Cisco C1100TG-1N32A gateway/controller

The compact, high-density Cisco 1100 Terminal Services Gateway (C1100 TSG) with Cisco IOS® XE Software allows secure remote management of a wide variety of networking, compute, Internet of Things (IoT), and other devices. It integrates Layer 2 switching and comprehensive security with the ability to integrate wired and wireless WAN connections (LTE Advanced 3.0) into a single rack unit. The C1100 TSG allows secure authentication (through support for RADIUS or TACACS) of remote users connecting to resources on an internal corporate or private network from Internet-connected devices.

Cloud service providers can deploy the C1100 TSG in data centers to provide secure connectivity to terminal servers, computers, IoT devices, and other networking equipment located in the internal network or behind a firewall. In addition, the gateway supports the Cisco IOS Firewall, IPsec and Network Address Translation (NAT), providing security and protection to all devices that connect to or from the terminal gateway. The C1100 TSG supports centralized and remote management capabilities through web-based tools and Cisco IOS® XE Software for full visibility into and control of network configurations at the remote site.

ON ORDER

SKU: C1100TG-1N32A

Manufacturer: Cisco Cisco

RRP Price €2,844.12

Specifications

Design

Product colour
Grey

Performance

Control display unit
No
Internal memory
2000 MB
Internal memory type
DDR4
Flash memory
4000 MB

Network

Forwarding rate
500 Mpps

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
USB 2.0 ports quantity
1
WAN connection
Ethernet (RJ-45), SFP

Power

Power consumption (typical)
30 W
Power consumption (max)
80 W
Input voltage
100-240 V
Input frequency
50-60 Hz
Input current
4.2 A

Weight & dimensions

Width
444 mm
Depth
305 mm
Height
44 mm
Weight
3.99 kg

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%

Accessories

License
