CDP2DP146B - Cables & Adaptors by StarTech.com

CDP2DP146B - Cables & Adaptors by StarTech.com

Name: StarTech.com 6ft/1.8m USB C to DisplayPort 1.4 Cable - 4K/5K/8K USB Type-C to DP 1.4 Alt Mode Video Adapter Converter - HBR3/HDR/DSC - 8K 60Hz DP Moni...
Brand: StarTech.com
SKU: CDP2DP146B
Price: 22.10 EUR
Availability: InStock

USB-C Video Adapter Cable | Thunderbolt 3 Compatible | HBR3

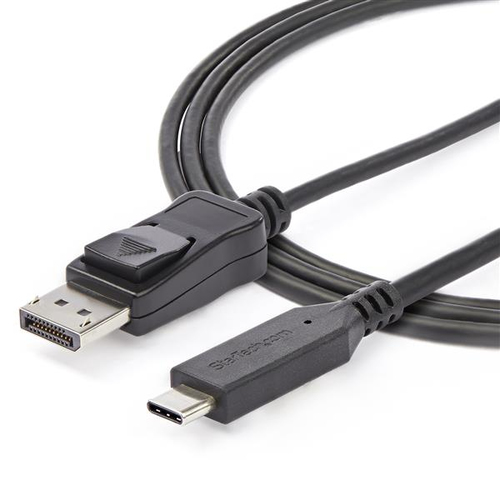

This USB-C to DisplayPort 1.4 cable lets you connect your USB Type-C device to a DisplayPort monitor with just one cable, providing you with a convenient, clutter-free solution.

Incredible Picture Quality

Supporting four times the resolution of 4K, this 8K DP 1.4 adapter cable delivers the stunning quality of UHD at resolutions up to 7680×4320, and also features HBR3 functionality, providing a bandwidth of up to 32.4Gbps.

With cutting-edge picture quality, this cable is ideal for:

Displaying crisp digital signage walls

Creating eye-catching visuals for photography and videography

The USB-C to DP cable is backward compatible with 4K and 1080p displays, which makes it a great accessory for home, office or other work environments, while future-proofing for 8K implementation.

Resolution

Frequency

Support without DSC

Support with DSC

HDR10 without DSC

HDR10 with DSC

1080p (1920x1080)

60

P

P

P

P

120

P

P

P

P

240

P

P

P

P

4K (3840x2160)

60

P

P

P

P

120

P

P

O

P

240

O

P

O

P

8K (7680x4320)

30

P

P

O

P

60

O

P

O

P

120

O

O

O

O

Clutter-Free Installation

At 6 ft. (1.8 m) in length, this DisplayPort adapter cable delivers a direct connection that eliminates excess cabling, ensuring a tidy installation. For installations requiring a shorter length, we also offer a 3.3 ft. (1 m) DisplayPort cable, enabling you to customize your connection needs.

Hassle-Free Setup

To ensure easy operation, this DisplayPort converter cable supports plug-and-play installation, removing the need for additional software or drivers.

CDP2DP146B is backed by a 3-year StarTech.com warranty and free lifetime technical support.

Note:

Your USB-C device must support DP Alt Mode to work with this adapter cable.

To achieve 8K resolutions, your source and your destination must support DisplayPort 1.4.

The StarTech.com Advantage

- HIGH PERFORMANCE: USB-C to DisplayPort 1.4 (32.4Gbps) adapter cable compatible w/ HDR/DisplayHDR, HBR3, Display Stream Compression (DSC), HDCP 2.2/1.4; 8K 60Hz (7680x4320), 5K 60Hz, 4K 120Hz & 1080p
- EXPERIENCE 8K: USB C to DisplayPort 1.4 cable was tested w/ 8K monitors, displays & compliance test hardware/software for optimal performance & color depth for high res imaging & content creators
- INTEGRATED VIDEO ADAPTER CABLE: This USB-C to DP cable minimizes signal loss & potential failure points with a latching DP connector, level 4 Air/Contact ESD immunity/protection & EMI shielding

28 IN STOCK

RRP Price €22.10

Specifications

Features

Connector 1 form factor

Straight

Connector 2 form factor

Straight

Cable length

1.8 m

Connector 1

USB Type-C

Connector 2

DisplayPort

Connector 1 gender

Male

Connector 2 gender

Male

DisplayPort version

1.4

Maximum resolution

7680 x 4320 pixels

Supported graphics resolutions

1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1440, 2560 x 1600 (WQXGA), 3860 x 2160, 4096 x 2160, 7680 x 4320

Maximum refresh rate

60 Hz

Product colour

Black

Chipset

STM32F072CBY6TR

Supported audio channels

7.1

Operational conditions

Operating temperature (T-T)

5 - 35 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

80 - 90%

Certificates

Compliance certificates

RoHS

Certification

CE, FCC, REACH

Weight & dimensions

Weight

57 g

Width

200 mm

Depth

1800 mm

Height

11 mm

Packaging data

Package width

220 mm

Package depth

200 mm

Package height

17 mm

Package weight

100 g

Packaging content

Quantity per pack

1 pc(s)

Logistics data

Harmonized System (HS) code

84733080

Master (outer) case width

335 mm

Master (outer) case length

500 mm

Master (outer) case height

220 mm

Products per master (outer) case

60 pc(s)

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

N/A

Weight

0.057 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!

Related Products

StarTech.com 18in Latching SATA to Right Angle SATA Serial ATA Cable Cables & Adaptors

A space-saving, latching right angle SATA hard drive cable, for installations in tight spaces.This right angled latching SATA cable features a (straight) female Serial ATA connector as well as a right-angled (female) SATA connector, providing a simple connection to a Serial ATA drive even if space near the drive's SATA port is limited. The cable offers latching connectors, which ensure secure connections for SATA hard drives and motherboards that support this feature.Once the right-angled SATA connector has been inserted into the drive's SATA data port, the shaft of the cable is seated flush with the rear panel of the drive, eliminating the clutter of excess cable at the connection point - an ideal solution for small or micro form factor computer cases.The right angled SATA cable features a thin, narrow construction that helps to improve airflow within the computer case; the cable features a rugged, yet flexible design that makes it easy to make the SATA connection as needed.The StarTech.com Advantage

€3.38

QNAP QXP-T32P interface cards/adapter Internal Thunderbolt 3 Cables & Adaptors

The Thunderbolt™ 3 Expansion Card enables high-speed data transfer to accelerate everyday tasks and applications. Video editing studios in particular can greatly benefit by being able to smoothly transfer, display and edit 4K videos in real-time. Streamlined Video Editing CollaborationBy using Thunderbolt™ 3 expansion cards, teamwork between Final Cut Pro® and Adobe Premiere Pro® users becomes faster and easier. With SMB protocol support, Final Cut Pro® users can create a library on a NAS volume and use it as if it were a local storage device. Every team member can centrally store video resources in the same NAS shared folder, greatly improving productivity for highly-collaborative projects in multi-workstation environments.Thunderbolt™ 3 Expansion Card Usage ScenariosDaisy-chain up to 6 QNAP Thunderbolt™ devicesA NAS with a Thunderbolt™ 3 expansion card can be daisy-chained with up to 6 QNAP Thunderbolt™ devices, including other QNAP Thunderbolt™ NAS and Thunderbolt 3 to 10GbE Adapter (QNA Series).Connect legacy devicesWhen used with an Apple Thunderbolt™ 3 (USB-C) to Thunderbolt™ 2 adapter* (sold by Apple), legacy Thunderbolt™ 2 MacBook can be connected to your Thunderbolt™ 3 NAS for sharing files and accessing centralized data.

€125.10

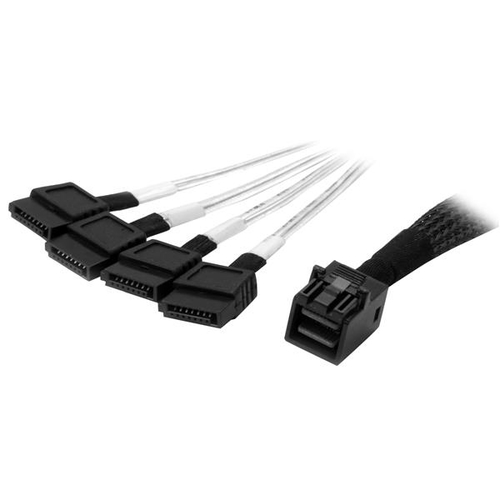

StarTech.com Internal Mini-SAS to SATA Cable - SFF-8643 to 4x SATA - 1 m Cables & Adaptors

This internal mini-SAS to SATA cable provides a cost-saving solution for connecting a SAS or SATA controller to four SATA drives. It’s the perfect replacement for your SFF data-storage cables.The cable is compatible with 6Gbps SATA drives.The SAS43SAT1M is backed by StarTech.com's lifetime warranty for guaranteed reliability.

€23.80

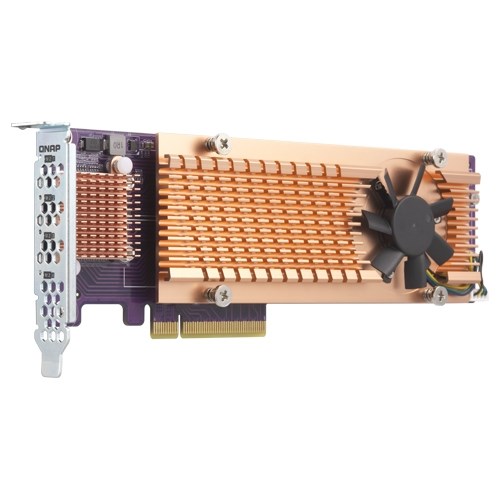

QNAP QM2-4P-384 interface cards/adapter Internal PCIe Cables & Adaptors
