CDP2DP14B - Cables & Adaptors by StarTech.com

CDP2DP14B - Cables & Adaptors by StarTech.com

Name: StarTech.com USB C to DisplayPort Adapter - 8K/5K/4K USB Type C to DP 1.4 Alt Mode Video Converter - HBR3/DSC/HDR - 8K 60Hz Thunderbolt 3 Compatible D...
Brand: StarTech.com
SKU: CDP2DP14B
Price: 34.23 EUR
Availability: InStock

DisplayPort™ 1.4 Adapter | Thunderbolt™ 3 Compatible | HBR3

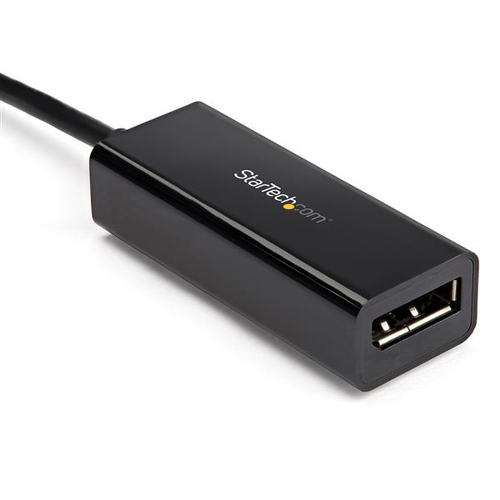

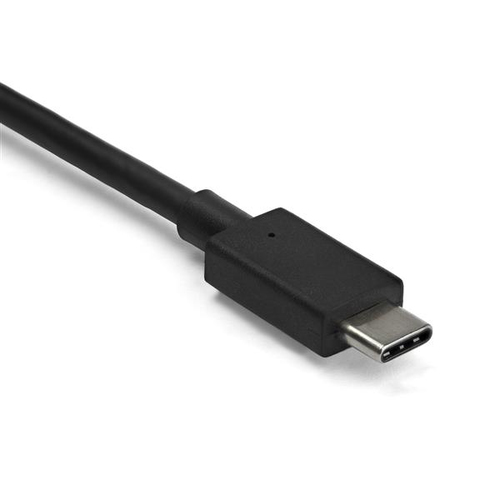

This USB-C™ to DisplayPort™ adapter lets you connect your USB Type-C or Thunderbolt 3 device to a DisplayPort monitor or display, providing you with a convenient, high-performance solution. The adapter supports High Dynamic Range (HDR) and provides sharper images with enhanced video.

Incredible 8K Picture Quality

Supporting four times the resolution of 4K, this 8K DisplayPort 1.4 adapter delivers the stunning quality of UHD at resolutions up to 7680×4320; and also features HBR3 functionality, providing a bandwidth of up to 32.4Gbps. With HDR support, you can enjoy lifelike images with increased contrast, brightness and colors and greater luminosity than standard digital imaging.

With cutting-edge picture quality, this adapter is ideal for:

• Displaying crisp digital signage walls
• Creating eye-catching visuals for photography and videography
• Streaming high-resolution, life-like content

The DisplayPort dongle is also backward compatible with 4K and 1080p displays, which makes it a great accessory for home, office or other work environments, while future-proofing for 8K implementation.

Ideal for Travel

This lightweight display adapter is highly portable, with a small-footprint design. It's the perfect accessory for your MacBook, Microsoft Surface Book or other USB-C (or Thunderbolt 3) device, fitting perfectly into your carrying case.

Hassle-Free Setup

To ensure easy operation, this USB C to DisplayPort adapter supports plug-and-play installation, removing the need for additional software or drivers.

CDP2DP14B is backed by a 3-year StarTech.com warranty and free lifetime technical support.

Note:

• Your USB-C device must support DP Alt Mode to work with this adapter.
• To achieve 8K resolutions, your source and your destination must support DisplayPort 1.4.
• This product will not work with the Samsung S8 smartphone. For hassle-free compatibility with the S8 we recommend using CDP2DP .

The StarTech.com Advantage

69 IN STOCK

RRP Price €34.23

Specifications

Performance

USB connector type

USB Type-C

USB connector gender

Male

DVI output

HDMI output

DisplayPort output

Yes

Number of displays supported

DisplayPort version

1.4

Maximum resolution

7680 x 4320 pixels

Refresh rate at maximum resolution

30 Hz

Supported graphics resolutions

1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1440, 2560 x 1600 (WQXGA), 3840 x 2160, 4096 x 2160, 7680 x 4320

Audio output channels

7.1 channels

Chipset

STM32F072

Certification

CE, FCC, REACH

Design

Product colour

Black

Weight & dimensions

Width

60 mm

Depth

24 mm

Height

15 mm

Weight

34 g

Operational conditions

Operating temperature (T-T)

5 - 35 °C

Operating relative humidity (H-H)

30 - 60%

Packaging data

Package width

200 mm

Package depth

220 mm

Package weight

44 g

Technical details

Compliance certificates

RoHS

Logistics data

Products per master (outer) case

120 pc(s)

Master (outer) case width

500 mm

Master (outer) case length

330 mm

Master (outer) case height

220 mm

Harmonized System (HS) code

84733020

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

N/A

Weight

0.034 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
