Name: StarTech.com USB C to VGA Adapter with Power Delivery - 1080p USB Type-C to VGA Monitor Video Converter w/ Charging - 60W PD Pass-Through - Thunderbol...
Brand: StarTech.com
SKU: CDP2VGAUCP
Price: 15.11 EUR
Availability: InStock

USB Type C Adapter | Thunderbolt 3 Compatible | 1080p

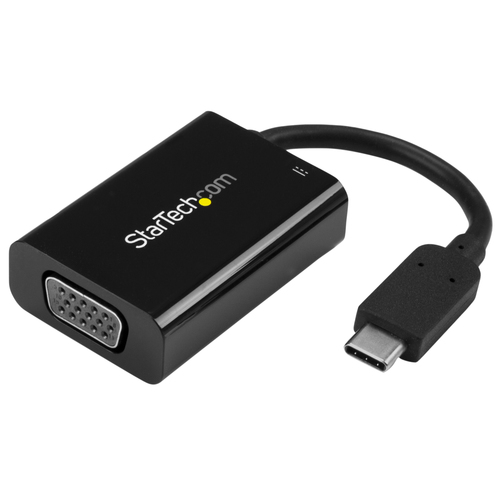

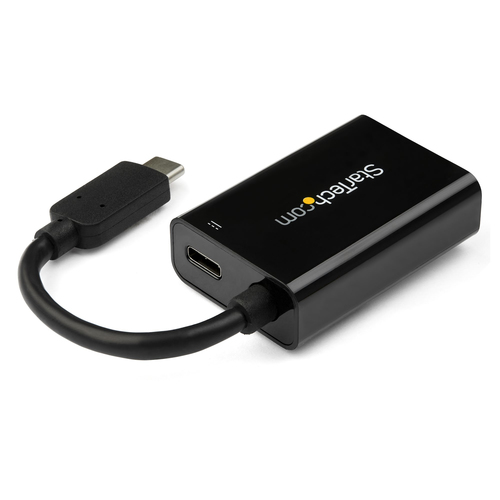

This USB-C to VGA adapter connects a VGA display to your laptop or MacBook with USB Type-C. The USB-C adapter features USB Power Delivery, enabling you to power your laptop while outputting video through the same USB-C port. The adapter is also available in white (CDP2VGAUCPW) so you can choose an adapter that matches the style of your laptop.

Power and Video in One Port with USB Power Delivery

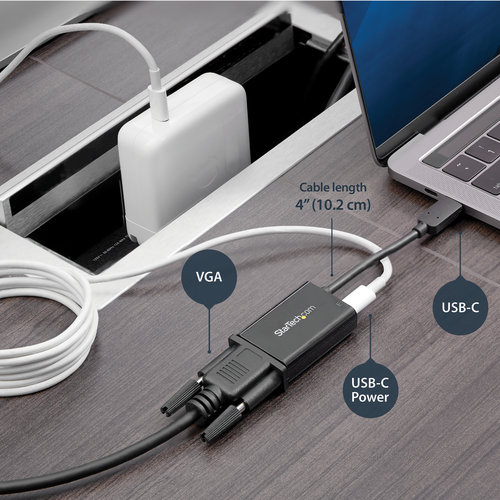

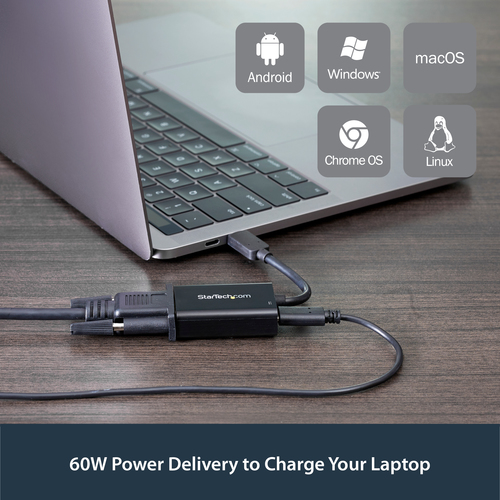

Smaller and lighter laptops are great for portability but you’re left with fewer connectivity ports. This USB-C VGA adapter supports USB Power Delivery up to 60 watts and features an additional USB-C port, so you can charge your laptop using its USB-C power adapter, even while you output video. Many laptops like Dell XPS and MacBook Pro support charging through your USB-C port with USB Power Delivery, check your specifications to confirm compatibility.

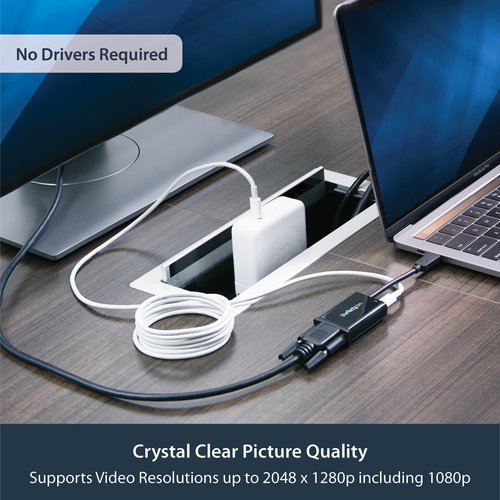

Enjoy HD Picture Quality with Video Resolutions up to 2048 x 1260

To ensure the quality of your video signal is maintained the USB-C dongle supports VGA resolutions up to 2048 x 1260 60Hz, including popular high-definition resolutions like 1080p and 720p.

Stylish Connectivity for Your Ultrabook or Any Laptop

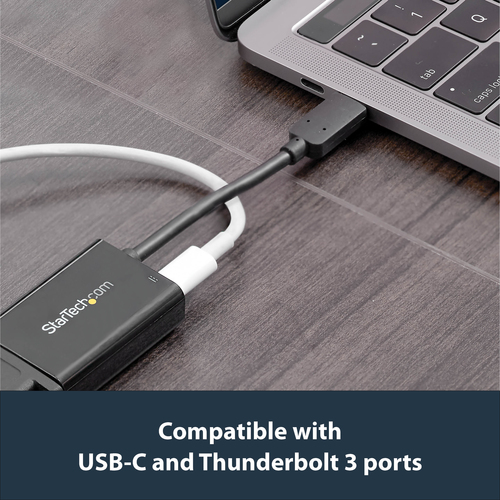

This USB Type-C adapter has an all-black housing and built-in USB-C cable designed to match your Ultrabook or laptop. The adapter is compatible with any device that supports USB-C DP Alt Mode, such as the 2018 iPad Pro.

The CDP2VGAUCP is backed by a 3-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage

3 IN STOCK

RRP Price €15.11

Specifications

Performance

USB connector type

USB Type-C

USB connector gender

Male

USB connector form factor

Straight

DVI output

HDMI output

DisplayPort output

Number of displays supported

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

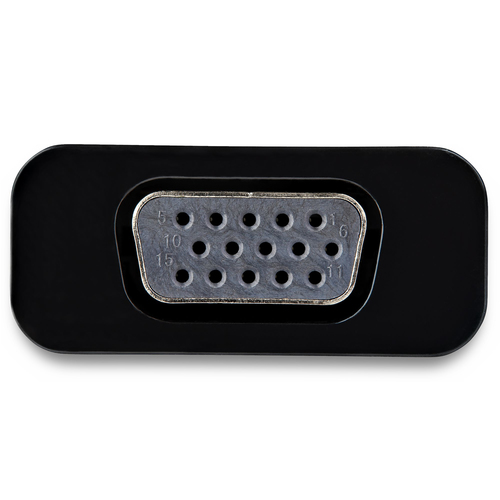

VGA (D-Sub) output

Yes

Maximum resolution

2048 x 1280 pixels

Refresh rate at maximum resolution

60 Hz

Supported graphics resolutions

1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800, 1360 x 768 (WXGA), 1440 x 900, 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2048 x 1280

Chipset

ITE - IT6516, VIA/VLI - VL100

USB Power Delivery (USB PD)

Yes

Certification

FCC, CE, REACH

Design

Product colour

Black

Integrated USB cable

Yes

Weight & dimensions

Width

33 mm

Depth

150 mm

Height

15 mm

Weight

24 g

USB cable length

0.102 m

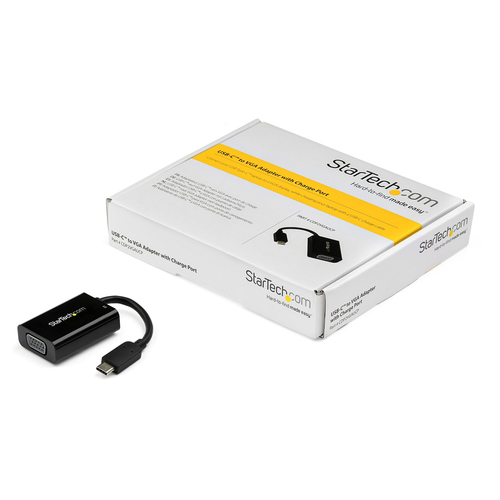

Packaging data

Package width

148 mm

Package depth

173 mm

Package height

32 mm

Package weight

109 g

Technical details

Compliance certificates

RoHS

Logistics data

Products per master (outer) case

40 pc(s)

Master (outer) case width

330 mm

Master (outer) case length

362 mm

Master (outer) case height

320 mm

Harmonized System (HS) code

84733020

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

N/A

Weight

0.024 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!

Related Products

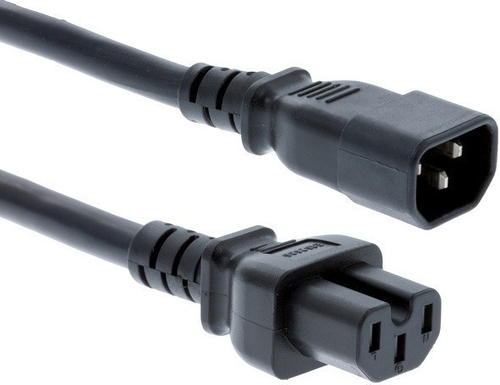

Cisco CAB-C15-CBN-EURA= power cable Black C14 coupler C15 coupler Cables & Adaptors

Cisco pays special attention to its network accessories which are the foundation stone of the whole network system. Cisco cables, adapters and other accessories will never let you down and you can always rely on the superior quality and outstanding reliability. Cisco has a wide range of network cables that will fit even the most extraordinary demands.

€8.51

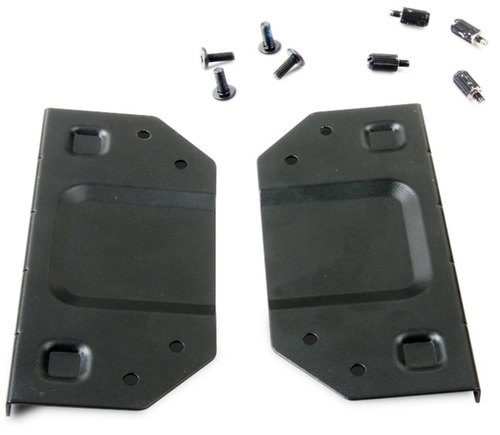

Shuttle PV04 - VESA mount accessory for 1.3-litre XPC slim products Cables & Adaptors

The PV04 VESA75/100 wallmount allows many Shuttle 1.3l Slim PCs to be installed on to walls or just affixed on the rear side of a monitor which is particularly interesting for the industry segment, company buildings and public institutions.

€15.12

StarTech.com 8 Port 1U Rackmount DVI USB KVM Switch Cables & Adaptors

The SV831DVIU 8-Port 1U Rack Mount DVI USB KVM Switch lets you control up to 8 USB-connected computers (each with DVI or HDMI display output) from a single keyboard, mouse and monitor.The KVM switch offers maximum control, allowing you to switch computers using hot-key commands or front panel push-buttons. Supporting digital resolutions up to 1920x1200 via DVI or HDMI connection (using DVI to HDMI adapter - see accessories), the KVM provides the high resolutions recommended for newer displays, allowing you to take full advantage of your monitor/screen capability.A perfect addition to any server room or software test lab, this rugged 8-port switch can be rack-mounted into 1U of cabinet space.Backed by a StarTech.com 3-year warranty and free lifetime technical support.Note: This KVM supports digital signals only, and cannot be used with DVI-to-VGA adapters.The StarTech.com Advantage- High-resolution 1920x1200 DVI connections support control of DVI systems or HDMI systems (with adapter)- Supports wireless and combo style mouse and keyboard sets for added flexibility- Rugged, solid steel rack-mountable case offers durability even in harsh environments

€892.58

Digitus USB Type-C connection cable, Type-C to A Cables & Adaptors

For superfast synchronising and charging- For superfast synchronising and charging- Supports up to 3A Power supply- Support of USB PD (Power Delivery) specification- Type-C connector can be used in both directionsFor connection of external USB devices (with C socket, e. g. Tablet, Notebook or Smartphone) to the USB Host (e. g. PC or Notebook). Datatransferrate up to 480 Mbps (High-Speed).

€7.82

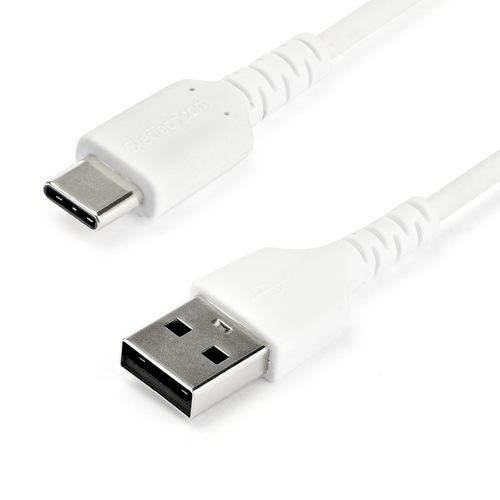

StarTech.com 2m USB A to USB C Charging Cable - Durable Fast Charge & Sync USB 2.0 to USB Type C Data Cord - Rugged TPE Jacket Aramid Fiber M/M 3A White - Samsung S10, iPad Pro, Pixel Cables & Adaptors

Connect and charge USB Type-C devices, including iPhone 15 and up, with this rugged USB-C to USB-A CableThis USB C cable withstands the daily demands of charging and syncing your mobile devices. Compatible with your Thunderbolt 3 ports, this rugged cable is a must-have for both business and consumer applications.Built for Daily UseThe durable USB C charging cable has aramid fiber reinforcement that shelters it from the stress of frequent bends. This also lets the cable flex without over-stretching or damaging the core of the cable.Cable Key FeaturesAramid fiber adds strength and durability to the cable• Insulated conductors reduce friction, provide more flexibility• EMI (electromagnetic interference) protection with aluminum-mylar foil with braided shielding• TPE (thermoplastic elastomer) cable jacket is more flexible than a standard PVC cableFlexible Strain ReliefThe USB A to USB C cable is constructed to prevent the connector from separating from the jacket. The extra-long strain relief molding is tested to withstand over 10,000+ bend cycles at a 180° angle.Connector Key FeaturesUSB Type C connector provides 3A of power output for charging your USB C compatible devices• Metal shield protects circuit board from EMI and reinforces the connection point• Strain relief tested to tolerate over 10,000+ bend cycles at a 180° angleSuperior ConnectionThe durable cable supports all USB 2.0 specifications providing a dependable connection for all your USB-C devices. It also delivers up to 60W of power to charge your devices without needing an additional power supply.RUSB2AC2MW is backed by a StarTech.com lifetime warranty and free lifetime technical support.The StarTech.com Advantage

€11.11

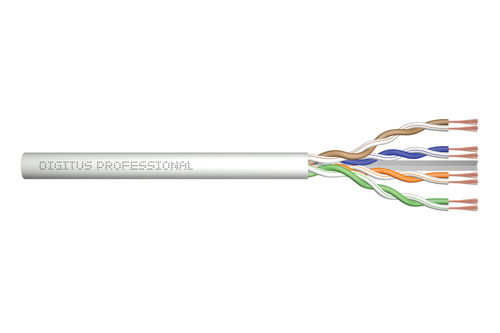

Digitus CAT 6A U/UTP twisted pair patch cord, raw Cables & Adaptors

Future-oriented standards and high-end quality for your network.- Suitable for direct assembly of RJ45 connectors in order to produce patch cords- Suitable for installations of class EA cable lines, 500 MHz- According to the norms ANSI/TIA-568-C; ISO/IEC 11801 2nd Ed.; EN 50173-1: EN 50288-11-1- Conductor: Copper (Cu)- PoE+ readyThe raw patch cords are manufactured and tested acc. to the ISO/IEC 11801 and DIN EN 50173 specifications. They will guarantee that the installed cabling system is compliant with the ISO & EN channel specification requirements and therefore provide optimum performance levels for your cablings.The raw patch cords are suitable for the direct assembly of RJ45 connector in order to produce patch cords.

€62.83

StarTech.com 1m Mini USB 2.0 Cable - A to Mini B - M/M Cables & Adaptors

Connect your (USB Mini) portable device to a host computer through a standard USB 2.0 type-A slotThe USB2HABM1M 1-meter USB ''A'' to Mini ''B'' Cable provides one (4-pin) USB Type ''A'' male connector and one Mini ''B'' (5-pin) male connector, with support for high-speed USB 2.0 transfer rates up to 480Mbps.A high quality replacement for connecting your digital camera to a host computer, this durable USB 2.0 cable also delivers a cost-effective way to maximize the file transfer performance of your MP3 player, PDA, or digital camcorder.Expertly designed and constructed of only top quality materials, the A-to-Mini B USB 2.0 cable offers pure digital data transfers for sharper, more natural images and sound at higher speeds, and is backed by our Lifetime Warranty.The StarTech.com Advantage- Durable construction ensures maximum cable lifespan- Backed by StarTech.com lifetime warranty

€2.78

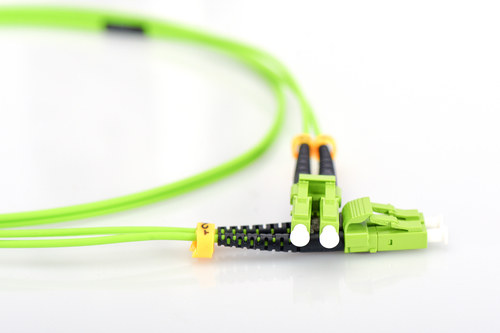

Digitus Fiber Optic Multimode Patch Cord, LC / LC Cables & Adaptors

Future-oriented standards and high-end quality for your network.FO patch cord, duplex, LC to LC,MM OM5 50/125 µ, 5 m

€7.92

Zebra 105999-302 printer cleaning Cables & Adaptors

4 print engine cleaning cards and 4 feeder cleaning cards, 1000 images/card

€29.21

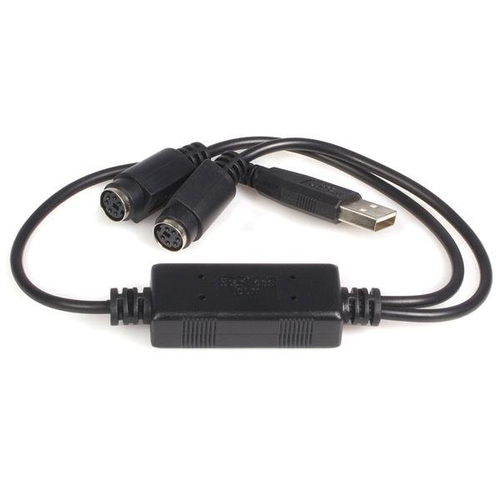

StarTech.com USB to PS/2 Adapter - Keyboard and Mouse Cables & Adaptors
