D01ML55U-FIBER-MEDIA - Cables & Adaptors by StarTech.com

Convert and extend a Gigabit RJ45 Ethernet connection over single or multimode LC fiber

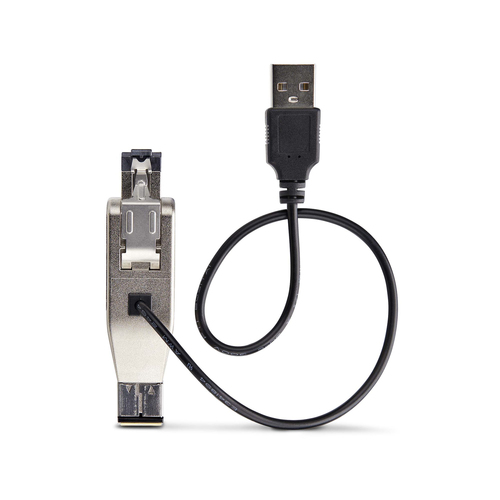

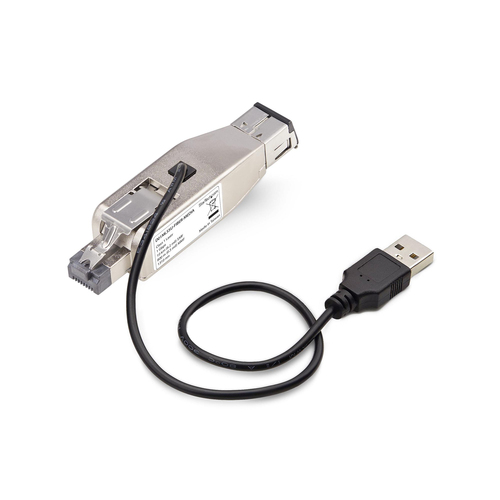

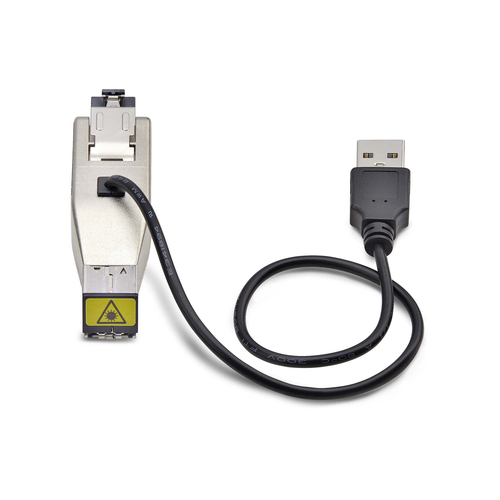

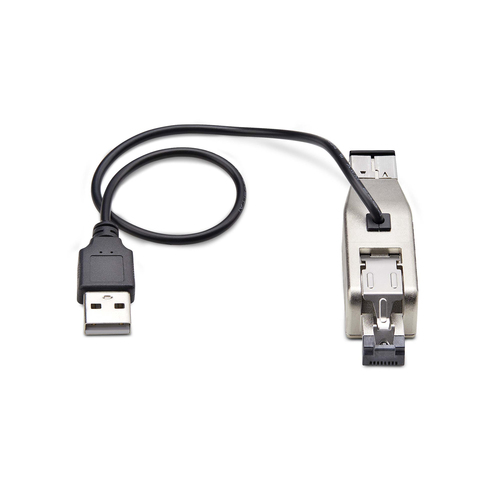

This compact Gigabit Fiber to Ethernet Media Converter enables Cat6 or similar cabling to be upgraded to an EMI-free fiber connection. The TAA-compliant adapter is designed with a convenient built-in USB cable for power, making it a perfect choice when external power options are unavailable.

Simplified Installation

The unmanaged fiber media converter features a plug-and-play design that does not require additional software or settings to be changed. The metal housing features an IP20 rating and is an all-in-one construction with integrated LC fiber and RJ45 ports. The RJ45 side features a metal tab to ensure a reliable and secure fit and prevent accidental disconnections.

Network Features

The LC slot is compatible with Single-Mode (10km) and Multimode (800m) fiber cables up to 1Gbps. A spring-loaded tab protects the port when not in use. The converter supports LFPT (Link Fault Pass-Through), allowing IT administrators to monitor and assess network connectivity at a glance based on the LED behavior.

Compatibility

This LAN-to-fiber converter is ideal for upgrading computers, switches, routers, or other equipment from copper to fiber. It suits various applications, including field deployments, industrial automation, telecommunications, broadcasting, data centers, and remote networking. Experience reliable connectivity with EMI immunity over long distances with this compact (3.2×0.8×0.7in/82.39x20x17.5mm) and power-efficient (2.5W max) dongle.

The StarTech.com Advantage

2 IN STOCK

RRP Price €181.35

Specifications

Network

Maximum data transfer rate
1000 Mbit/s
Converter input interface
1000Base-T
Converter output interface
1000Base-LX
Networking standards
IEEE 802.3ab, IEEE 802.3z
Ethernet interface type
Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Duplex system
Full
Chipset
Marvell - 88E1512

Performance

Maximum transfer distance
1000 m
Wavelength
1310 nm
Fiber mode structure
Multi-mode, Single-mode

Features

Internal
No
LED indicators
Activity, Link, Power
Product colour
Black, Silver
Housing material
Metal, Plastic
International Protection (IP) code
IP20

Ports & interfaces

Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
1
Fiber ports quantity
1
Fiber optic connector
LC

Power

Power consumption (max)
2.5 W
Power over Ethernet (PoE)
No

Weight & dimensions

Width
82 mm
Depth
20 mm
Height
18 mm
Weight
49 g

Operational conditions

Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
5 - 85%

Packaging content

User guide
Yes

Packaging data

Package width
136 mm
Package depth
80 mm
Package height
32 mm
Package weight
80 g

Certificates

Compliance certificates
Trade Agreements Act (TAA)

Logistics data

Master (outer) case width
340 mm
Master (outer) case length
290 mm
Master (outer) case height
126 mm
Products per master (outer) case
24 pc(s)
