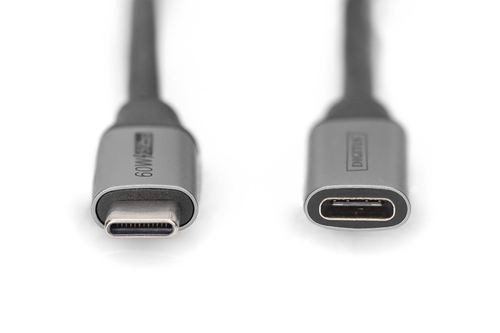

Digitus USB-3.0 Gen.1, USB Type-C extension cable; M/F

Supports the following transmission types: audio/video data transfer/charging function

- Supports data transfer rates of up to 5 Gbit/s
- Supports USB Power Delivery with 20 V, 3A and 60W
- Backwards-compatible with Thunderbolt 3 and USB 2.0
- Supports DisplayPort video/audio signals and PCi Express
- Video/audio support up to 4K with 60 Hz
- USB version: USB-3.0 Gen. 1
- Aluminum housing

The DIGITUS® USB 3.0 Gen. 1 extension cable is an all-rounder among cables. Thanks to the Thunderbolt 3 protocol, it can be used for PCI Express, DisplayPort and Host-to-Host transfers. With this cable, you can transfer audio/video signals, data as well as power. The data transfer speed is 5 Gbit/s. This allows you to transfer large quantities of data such as films and music within seconds. Video signals are transmitted max. in 4K with a display refresh rate of 60 Hz. Thanks to USB Power Delivery, the charging function is ensured. With the corresponding charging device, you can charge your smart devices rapidly with max. 60 W (3 A / 20 V). The USB Type-C interface enables wide compatibility with devices with this connection.

13 IN STOCK
SKU: DB-300230-010-S
Manufacturer:
Digitus Digitus

RRP Price €11.14

Specifications

Features

USB version
USB 3.2 Gen 1 (3.1 Gen 1)
Connector 1
USB C
Connector 2
USB C
Connector 1 gender
Male
Connector 2 gender
Female
Connector 1 form factor
Straight
Connector 2 form factor
Straight
Connector material
Nickel
Connector contacts plating
Nickel
Cable jacket material
Thermoplastic elastomer (TPE)
Conductor material
Copper
Ferrite bead
No
Maximum data transfer rate
5000 Mbit/s
Maximum data transfer rate
5 Gbit/s
Product colour
Black
Cable type
Round cable
Plug and Play
Yes
USB Power Delivery (USB PD)
Yes
USB Power Delivery up to
60 W

Power

Output voltage
20 V
Output current (max)
3 A

Weight & dimensions

Cable length
1 m
Cable diameter
4.3 mm

Packaging data

Package width
120 mm
Package depth
110 mm
Package height
30 mm
Package weight
45 g

Packaging content

Quantity per pack
1 pc(s)

Operational conditions

Operating temperature (T-T)
-20 - 60 °C
Storage temperature (T-T)
-10 - 50 °C

Logistics data

Package volume
396 cm³
Country of origin
China
