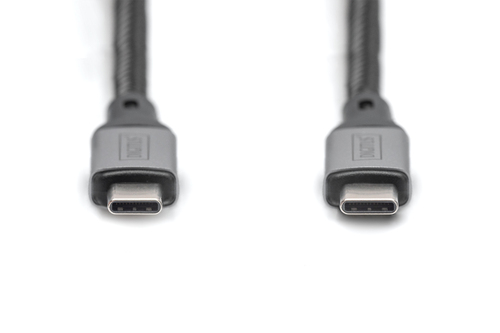

Digitus USB 4.0 Type-C connection cable

The USB 4.0 cable is an all-rounder and supports the following transmission types: audio/video/data transfer/charging function

- Supports data transfer rates of up to 20 Gbit/s
- Supports USB Power Delivery Revision 3.0 (PD 3.0) with 20V, 3A and 60W
- Backwards compatible with Thunderbolt 3, USB 3.2, USB 3.1 and USB 2.0
- Supports DisplayPort (2.0) video/audio signals and PCi Express
- Video/audio support up to 8K (7680 × 4320 pixels at 30Hz)

The Digitus® 3rd generation USB 4.0 cable with aluminum housing is the all-rounder among cables. Thanks to the Thunderbolt 3 protocol, PCI Express, DisplayPort and host-to-host transmissions can be realized. You can use this cable to transfer audio/video signals, data and power. The data transfer speed is 20 Gbit/s, which is 4x faster than USB 3.0 (5 Gbit/s) and 2x faster than USB 3.1 (10 Gbit/s). This allows you to transfer large data such as movies and music within seconds. The video signals are transmitted in max. 8K at a refresh rate of 30 Hz. In addition, the resolutions 8K (7680 × 4320) @30Hz and 4K (3840 x 2160) @60Hz . (dual mode possible) are also supported. Thanks to USB Power Delivery Revision 3.0, the fast charging function is guaranteed. With the corresponding charger, you can charge your smart devices with max. 60 W (3 A / 20 V) in a short time. The USB Type-C interface enables broad compatibility with devices with this connection.

18 IN STOCK

RRP Price €25.75

Specifications

Features

USB version
USB4 Gen 2x2
Connector 1
USB C
Connector 2
USB C
Connector 1 gender
Male
Connector 2 gender
Male
Connector 1 form factor
Straight
Connector 2 form factor
Straight
AWG wire size
30
Connector material
Aluminium
Connector contacts plating
Gold
Magnetically shielded
Yes
Cable jacket material
Polypropylene
Cable jacket type
Extremely flexible
Ferrite bead
No
Maximum data transfer rate
20000 Mbit/s
Maximum data transfer rate
20 Gbit/s
Product colour
Black
Cable type
Round cable
Plug and Play
Yes
USB Power Delivery (USB PD)
Yes
USB Power Delivery revision
3.0
USB Power Delivery up to
100 W
Maximum resolution
7680 x 4320 pixels
Maximum refresh rate
60 Hz

Weight & dimensions

Cable length
3 m
Cable diameter
5 mm
Bend radius (min)
6 cm

Packaging data

Package width
230 mm
Package depth
80 mm
Package height
40 mm
Package weight
200.6 g

Packaging content

Quantity per pack
1 pc(s)

Logistics data

Package volume
736 cm³
UK Trade Tariff code
85444290
Country of origin
China
