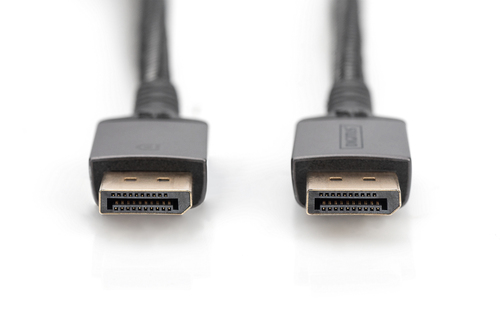

Digitus 8K DisplayPort Connection Cable Version 1.4

The Digitus 8K DisplayPort Connection Cable Version 1.4 already meets the requirements for future high-definition devices (TV, projector, monitor) of the next generation. The ultimate 8K experience with Ultra-HD II resolutions of up to 7680 x 4320

- DisplayPort plug to DisplayPort plug
- Connects PC/Computer, notebook or graphics card for gaming with DP-capable devices such as TVs, screens, monitors, projectors, displays
- Supports the video formats 4K/2K@120Hz, 5K@60Hz or 8K@60Hz and resolutions of 3840 x 2160p, 5120 x 2880p and 7680 x 4320p - Also enables a color depth of 24 bits
- Compatible with DP standards 1.4, 1.3 and 1.2
- The gold-plated precision plugs provide optimal signal quality and corrosion protection
- With aluminum housing and nylon mesh, the cable offers optimal quality and protection.

With this cable standard, the DisplayPort cable supports all current requirements – from the transmission of high-resolution UHD 8K content, 8-channel audio transmission and support of HDCP and DPCP encryption. Mirror your notebook desktop onto a large monitor or expand your desktop with an additional display using DisplayPort. High-speed data transfer is possible with this high-quality cable, no judder even during the most demanding graphics applications or games. Gold-plated contacts and double shielding of the cable ensure maximum conductivity and interference-free transmission.

ON ORDER

RRP Price €9.59

Specifications

Features

Connector 1 form factor
Straight
Connector 2 form factor
Straight
Connector contacts plating
Gold
DisplayPort version
1.4
Maximum resolution
7680 x 4320 pixels
Maximum refresh rate
120 Hz
HDCP
Yes
HDCP version
2.2
Display Stream Compression (DSC)
Yes
Display Stream Compression (DSC) version
1.2
3D
Yes
Connector 1 lockable
Yes
Connector 2 lockable
Yes
Cable length
1 m
Connector 1
DisplayPort
Connector 2
DisplayPort
Connector 1 gender
Male
Connector 2 gender
Male
Product colour
Black
Magnetically shielded
Yes
Number of shielding layers
2
AWG wire size
30
High Dynamic Range (HDR) supported
Yes
Data transfer rate
32.4 Gbit/s
Dolby technologies
DTS-HD Master Audio, Dolby TrueHD
Plug and Play
Yes
Channels quantity
32 channels
Colour sampling
4:4:4
Cable type
Round cable

Operational conditions

Operating temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 95%

Weight & dimensions

Cable diameter
6.8 mm

Packaging data

Package width
80 mm
Package depth
225 mm
Package height
30 mm
Package weight
99 g
Package volume
450 cm³

Packaging content

Quantity per pack
1 pc(s)

Logistics data

Country of origin
China

Accessories
