Robust 1.3-litre Slim PC supports Intel Core processors with Socket LGA1700 and four UHD displays

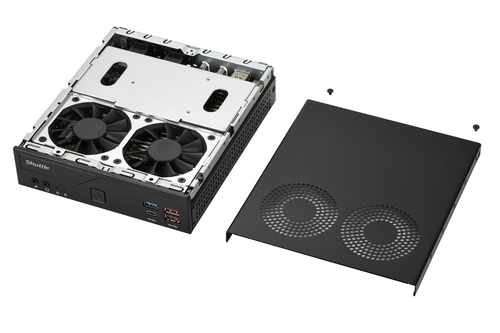

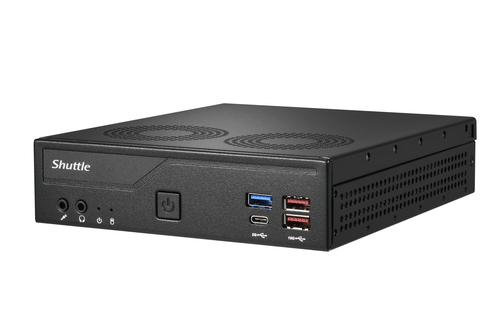

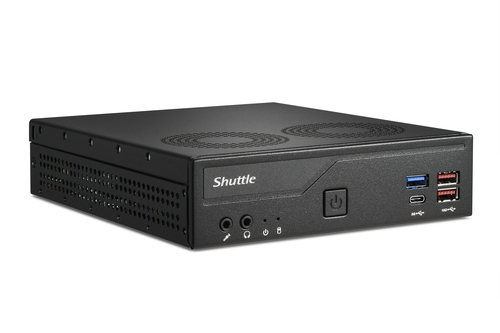

The Shuttle XPC slim Barebone DH770 with H770 chipset houses the performance of Intel's 12th/13th/14th generation Core desktop processors (codenamed Alder Lake-S and Raptor Lake-S [Refresh]) for socket LGA1700 in a compact 1.3-litre format. The DH770 allows for four Ultra HD displays to be operated at the same time via 2x HDMI and 2x DisplayPort. It also offers Dual Intel 2.5G LAN, four USB 3.2 Gen 2 and COM ports. The slim metal chassis comes with a VESA mount included, provides versatile connectivity and reliable operation in environments with ambient temperatures of up to 50 °C. This platform is targeted at professional applications such as Digital Signage, POS, POI, gambling machines, office, healthcare and industry.

21 IN STOCK

RRP Price €383.93

Specifications

Processor

Built-in processor
No

Memory

Memory slots type
SO-DIMM
Number of memory slots
2
Maximum internal memory
64 GB
Supported memory clock speeds
5600 MHz
Supported memory types
DDR5-SDRAM
Memory channels
Dual-channel
Memory voltage
1.1 V
ECC
No
Non-ECC
Yes

Storage

Supported storage drive types
HDD & SSD
Storage drive sizes supported
2.5,M.2
Storage drive interface
PCI Express, Serial ATA III
NVMe
Yes

Graphics

On-board graphics card
No

Audio

Built-in speaker(s)
No

Network

Ethernet LAN
Yes
Wi-Fi
No
LAN controller
Intel I226-LM

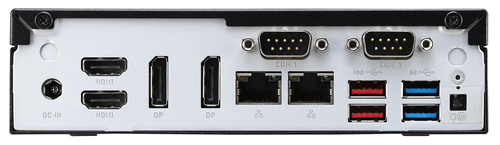

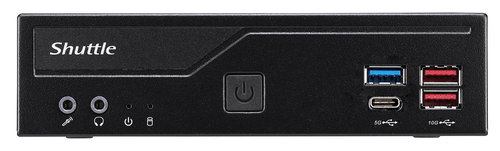

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
4
HDMI ports quantity
2
HDMI version
2.0b
DisplayPorts quantity
2
DisplayPort version
1.4
Microphone in
Yes
Combo headphone/mic port
Yes
Ethernet LAN (RJ-45) ports
2
Serial ports quantity
2
DC-in jack
Yes

Design

Chassis type
1.35L sized PC
Product colour
Black
Cooling type
Active
On/off switch
Yes
LED indicators
HDD, Power
Housing material
Metal
Cable lock slot
Yes
Cable lock slot type
Kensington
VESA mounting
Yes
Panel mounting interface
100 x 75 mm
Product type
Mini PC barebone

Performance

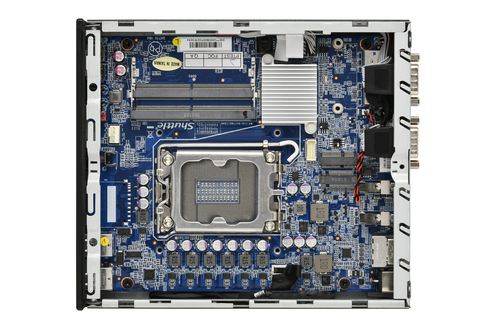

Motherboard chipset
Intel H770
Processor socket
LGA 1700
Number of processors supported
1
Compatible processor series
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
BIOS type
UEFI AMI
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
2.0
Audio chip
Realtek ALC888S

Technical details

Compliance certificates
BSMI, CB, CE, ETL, Federal Communications Commission (FCC), RCM, RoHS, VCCI

Logistics data

Harmonized System (HS) code
84733080

Sustainability

Sustainability certificates
ENERGY STAR, ErP

Power

Power supply type
External AC adapter
Power supply
120 W
Number of power supply units
1
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
AC adapter output voltage
19 V
AC adapter output current
6.32 A

Operational conditions

Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
10 - 90%

Weight & dimensions

Width
190 mm
Depth
165 mm
Height
43 mm
Weight
1.3 kg
Package weight
2.1 kg

Packaging content

Power cord included
Yes
AC adapter included
Yes
Drivers included
Yes

Other features

Country of origin
China
