DISPL3M - Cables & Adaptors by StarTech.com

DISPL3M - Cables & Adaptors by StarTech.com

Name: StarTech.com 3m (10ft) DisplayPort 1.2 Cable - 4K x 2K Ultra HD VESA Certified DisplayPort Cable - DP to DP Cable for Monitor - DP Video/Display Cord...
Brand: StarTech.com
SKU: DISPL3M
Price: 30.96 EUR
Availability: OutOfStock

Create high-resolution 4k x 2k connections with HBR2 support between your DisplayPort™-equipped devices

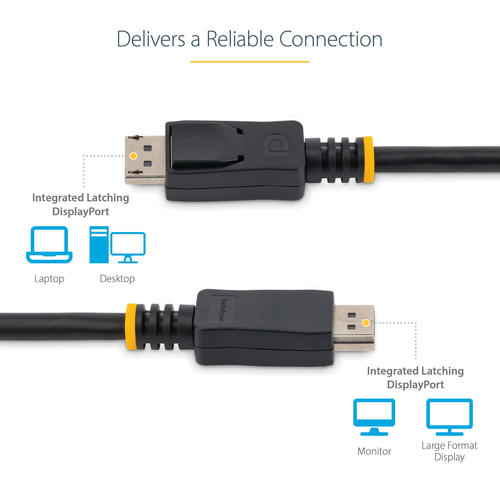

The DISPL3M 3m DisplayPort™ 1.2 Cable with latches provides a secure, connection between your DisplayPort-equipped devices and is capable of providing higher performance than either HDMI® or dual link DVI.

The DP cable supports high resolutions of up to 4k x 2k (4096 x 2160) @ 60Hz with a maximum HBR2 bandwidth of 21.6 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.

The DISPL3M is backed by StarTech.com’s Lifetime Warranty, for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.

The StarTech.com Advantage

ON ORDER

RRP Price €30.96

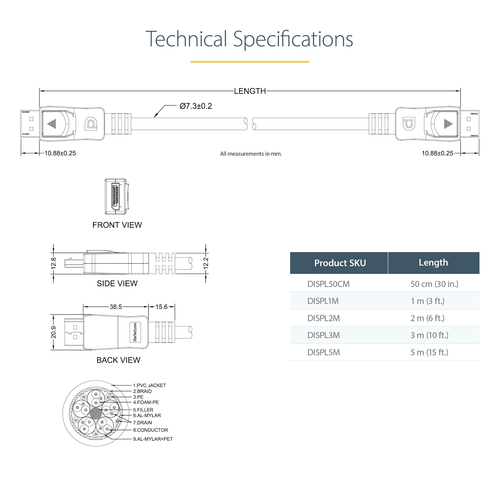

Specifications

Features

Connector 1 form factor

Straight

Connector 2 form factor

Straight

Connector contacts plating

Nickel

DisplayPort version

1.2

Maximum resolution

3840 x 2400 pixels

Supported graphics resolutions

1920 x 1080 (HD 1080), 3840 x 2400, 2560 x 1600 (WQXGA)

Maximum refresh rate

60 Hz

HDCP

Yes

DisplayPort Content Protection (DPCP)

Yes

Cable length

3 m

Connector 1

DisplayPort

Connector 2

DisplayPort

Connector 1 gender

Male

Connector 2 gender

Male

Latching connectors

Yes

Product colour

Black

Cable rating

CMG (CM)

Cable shielding

Aluminum mylar foil

Jacket material

Polyvinyl chloride (PVC)

AWG wire size

Bandwidth

21600 MB/s

Plug and Play

Yes

Multi-Stream Transport (MST)

Yes

Number of conductors

Certificates

Compliance certificates

RoHS, CE

Weight & dimensions

Cable diameter

7.3 mm

Weight

210 g

Packaging data

Package width

200 mm

Package depth

220 mm

Package height

22 mm

Package weight

219 g

Packaging content

Quantity per pack

1 pc(s)

Logistics data

Harmonized System (HS) code

84733080

Master (outer) case width

330 mm

Master (outer) case length

500 mm

Master (outer) case height

280 mm

Products per master (outer) case

50 pc(s)

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.21 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
