Home > Cables & Adaptors > Digitus > DK-1613-P-305

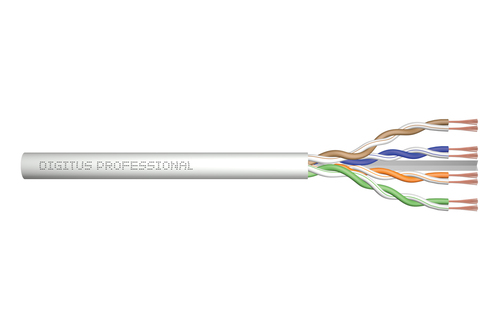

Digitus CAT 6 U/UTP twisted pair patch cord, raw

Future-oriented standards and high-end quality for your network.- Suitable for direct assembly of RJ45 connectors in order to produce patch cords- Suitable for installations of class E cable lines, 250 MHz- According to the norms ANSI/TIA-568-C; ISO/IEC 11801 2nd Ed.; EN 50173-1: EN 50288-6-1- Conductor: Copper (Cu)- PoE+ readyThe raw patch cords are manufactured and tested acc. to the ISO/IEC 11801 and DIN EN 50173 specifications. They will guarantee that the installed cabling system is compliant with the ISO & EN channel specification requirements and therefore provide optimum performance levels for your cablings.The raw patch cords are suitable for the direct assembly of RJ45 connector in order to produce patch cords.

ON ORDER

RRP Price €164.40

  loading...
Register for Discounts

Specifications

Features

Product colour
Grey
Cable length
305 m
Cable standard
Cat6
Cable shielding
U/UTP (UTP)
Connector 1
No
Connector 2
No
Connector 1 gender
No
Connector 2 gender
No
Jacket material
Low smoke zero halogen (LSZH)
Conductor material
Copper
Twisted pair coupling type
4x2
Cabling technology
10GBase-T
Networking standards
IEEE 802.3, IEEE 802.5
AWG wire size
26/7
Data transfer rate
10000 Mbit/s
Frequency
250 MHz
Country of origin
China

Operational conditions

Operating temperature (T-T)
-10 - 60 °C
Storage temperature (T-T)
-10 - 75 °C

Weight & dimensions

Outer diameter
5 mm

Packaging content

Quantity per pack
1 pc(s)

Packaging data

Package width
390 mm
Package depth
390 mm
Package height
200 mm
Package weight
9.05 kg
Package volume
30420 cm³
Package type
Box

Other features

Input impedance
100 Ω
Category
6

Logistics data

Harmonized System (HS) code
84733080
UK Trade Tariff code
85444920
Digitus CAT 6 U/UTP twisted pair patch cord, raw

Description

Manufacturer

Digitus

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

9.05 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
