Digitus CAT 6 U/UTP installation cable, 500 m, Cca

Name: Digitus CAT 6 U/UTP installation cable, 500 m, Cca
Brand: Digitus
SKU: DK-1615-VH-5
Price: 310.13 EUR
Availability: OutOfStock

Future-oriented standards and high-end quality for your network.

- 1GBit Ethernet
- 250 MHz transmission frequency
- PoE Power over Ethernet support
- CPR class Cca

The Digitus® Professional Cat.6 U/UTP installation cable is characterized by the following cable construction 4x2x AWG23/1 and reaches a transmission frequency up to 250 MHz. The halogen free cable jacket is conform to the standard IEC 60332-3-24, FRNC-C, LSZH-3 and CPR Euro class Cca. The cable is suitable for building structured cabling in the secondary and tertiary area. Compliant with the following standards ISO/IEC 11801, DIN EN 50173, DIN EN 50288-6-1.

ON ORDER

RRP Price €310.13

Specifications

Features

Product colour

Violet

Cable length

500 m

Cable standard

Cat6

Cable shielding

U/UTP (UTP)

Connector 1

RJ-45

Connector 2

RJ-45

Connector 1 gender

Connector 2 gender

Jacket material

Low smoke zero halogen (LSZH)

Conductor type

Solid

Conductor material

Copper-Clad Aluminium (CCA)

AWG wire size

23/1

Frequency

250 MHz

Country of origin

China

Operational conditions

Operating temperature (T-T)

-20 - 75 °C

Storage temperature (T-T)

-20 - 60 °C

Certificates

Certification

CPR class Cca

Weight & dimensions

Outer diameter

6.2 mm

Packaging content

Quantity per pack

1 pc(s)

Packaging data

Package width

370 mm

Package depth

370 mm

Package weight

24 kg

Package volume

42439 cm³

Logistics data

Harmonized System (HS) code

84733080

UK Trade Tariff code

85444920

Description

Manufacturer

Digitus

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

24 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!

Related Products

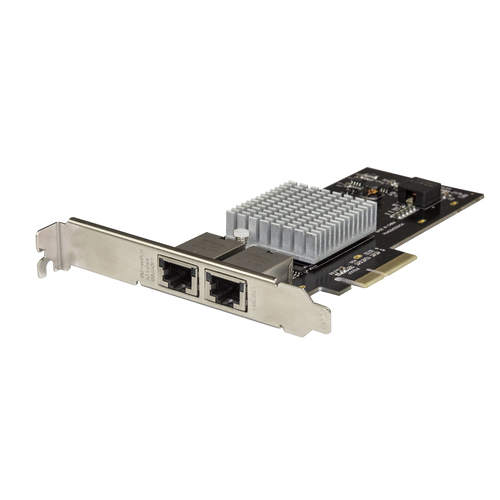

StarTech.com Dual Port 10G PCIe Network Adapter Card - Intel-X550AT 10GBASE-T & NBASE-T PCI Express Network Interface Adapter 10/5/2.5/1GbE Multi Gigabit Ethernet 5 Speed NIC LAN Card Cables & Adaptors

Add two Ethernet ports to a server or workstation through one PCI Express slot, with support for five network speeds: 10G/5G/2.5G/1G/100MbpsThis dual-port network card offers versatile and cost-efficient network connectivity, by increasing the available network bandwidth without having to replace your existing cabling infrastructure. The 5-speed network card lets you add two 10G/NBASE-T RJ45 ports to your server or desktop computer and access your network at multiple speeds: 10G, 5G, 2.5G, 1G, and 100Mbps.Cost-effective, multimode network connectivityCompatible with a broad range of operating systems, this versatile dual-port NIC is ideal for many business applications that require upgrades to servers or workstations. Fully compliant with 10GBASE-T and NBASE-T™ specifications, the network card is a cost-effective way to enhance your server or computer capabilities by adding two powerful 10-Gigabit Ethernet ports. (10G network speeds require Cat6a cable. All other speeds require Cat5e cable.)Connect to NBASE-T equipmentThe network card supports advanced NBASE-T technology, compatible with the latest multi-gigabit Ethernet switches and routers, such as new Cisco campus switches (including Catalyst 4500E, 3850 and 3560-CX). The card enables you to connect to NBASE-T based equipment at network speeds of 2.5Gbps or 5Gbps, over your existing Cat5e infrastructure, without having to upgrade to more expensive Cat6a.NBASE-T technology accelerates the speed of twisted pair Cat5e copper cabling over a distance of up to 100 meters. The Ethernet network card also supports 10Gbps network speeds if using Cat6a cabling, and 1Gbps network speeds if using Cat5e (or better) cabling.The Ethernet ports are based on the Intel® X550AT2 chipset, designed to deliver the power, performance, and enhanced capabilities you need for reliable network connections to your server or computer. The network card also supports advanced features including 9K jumbo frames and 802.1q VLAN tagging.Easy installationWith a dual-profile design, the PCI Express network card installs easily into a wide range of computer/server chassis, regardless of form factor. The card comes equipped with a standard-profile bracket for installation in a full-sized chassis and includes a low-profile/half-height bracket for installation in small form-factor computers.The StarTech.com Advantage

€488.38

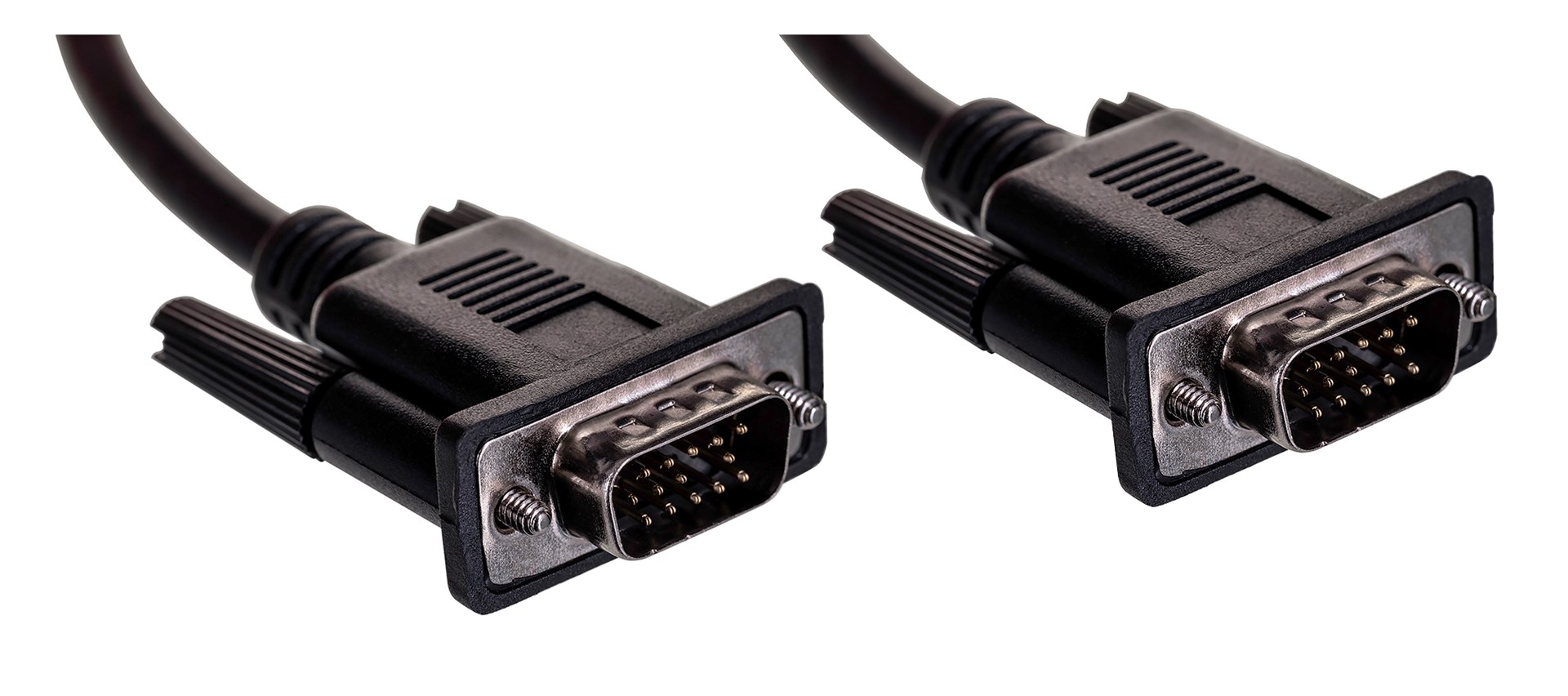

Lenovo 0.5m VGA VGA cable VGA (D-Sub) Black Cables & Adaptors

The Lenovo 0.5 Meter VGA to VGA Cable is designed for ThinkCentre Tiny PCs. It is uniquely sized to be the perfect fit for connecting your desktop and monitor when mounted close together

€2.98

Tripp Lite N200-015-BL Cat6 Gigabit Molded (UTP) Ethernet Cable (RJ45 M/M), PoE, Blue, 15 ft. (4.57 m) Cables & Adaptors

The N200-015-BL Cat6 Gigabit Molded Patch Cable (M/M) ensures ultra-fast performance throughout your Cat5/5e/6 network application. It connects high-speed network components like computers, printers, video game systems, Blu-ray players, copy machines, routers and modems in a home or office Cat5/5e/6 application.This 15-ft. (4.57 m) blue cable is designed for 1000Base-T (1 Gbps Ethernet), 10/100Base-T (Ethernet), 100 Mbps TPDDI, 155 Mbps ATM, ISDN, voice, Token Ring Type 3 and EIA/TIA applications. Manufactured from 24 AWG 4-pair solid UTP with a staggered-pin plug design and male RJ45 connectors, each cable provides high-speed connections up to 550 MHz/1 Gbps and flawless signal delivery, while keeping near-end crosstalk levels to a minimum.The N200-015-BL is constructed of top-quality materials for long life and durability. Corrosion-resistant gold-plated copper contacts provide maximum conductivity and minimize data loss. Integral strain relief gives the cable extra flexibility, reduces stress, and helps the cable and connectors move freely without cracking. Meets most current industry standards, including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801 and ETL (category 6 draft 11).

€4.32

StarTech.com 2m Mini USB Cable - A to Down Angle Mini B Cables & Adaptors

Connect your Mini USB devices over longer distances, with the cable out of the wayThe USBAMB2MD 2m USB to Down Angle Mini USB Cable provides a high quality connection between your Mini USB 2.0 mobile devices (smartphones, GPS, digital cameras, portable hard drives, etc.) and your PC or Mac computer, for everyday tasks such as charging, data synchronization or file transfers.The down-angled Mini USB connector allows you to access your Mini USB devices, while keeping the cable out of the way, and stress away from the port.Designed and constructed for maximum durability, this high quality USB to Mini USB cable is backed by StarTech.com's Lifetime Warranty.As an alternative, StarTech.com also offers a USBAMB2MU" text=" 2m USB to Up Angle Mini USB Cable (USBAUB2MU), which provides the same convenience as this down-angled cable, but allows you to connect to your Mini USB device from the opposite direction.The StarTech.com Advantage- Unrestricted access to your Mini USB mobile device- Reduce stress on your mobile device connector- Position your Mini USB devices as needed - up to 2 meters distance between devices

€3.65

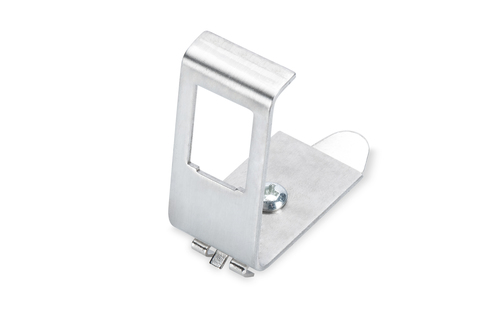

Digitus DIN rail adapter for 1x Keystone module Cables & Adaptors

- Compact and space-saving design: The slim and compact shape of this DIN rail adapter maximizes space utilization without compromising performance.- Durable: Made of high-quality metal, this DIN rail adapter ensures excellent durability and long-term reliability even in demanding industrial environments.- Improved performance: The metal construction not only ensures durability, but also improves electrical performance and grounding, ensuring reliable operation in critical applications.The DIGITUS® DIN rail adapters are used to accommodate DIGITUS® Keystone modules. They are available as 1-port or 2-port versions.

€2.68

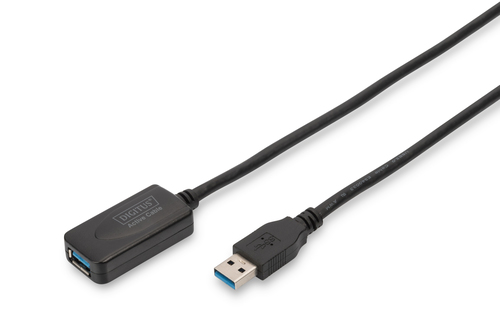

Digitus USB 3.0 Active Extension Cable Cables & Adaptors

The solution to use USB peripherals far away from your computer!- Bridges reliably the distance to your USB devices- No power loss despite of 5 meters cable length- Data transfer rate up to 5 Gbps (super speed)- Easy installation - Plug & PlayEveryone knows the problem, when a printer or other USB devices are further away from the PC, as actually possible. By the Digitus USB 3.0 active extension cable, this problem will be solved in a simple way. Through the 5 meter cable, you can connect your faraway USB devices and thanks to the data transfer rate up to 5 Gbps you don´t notice any speed problems.

€16.30

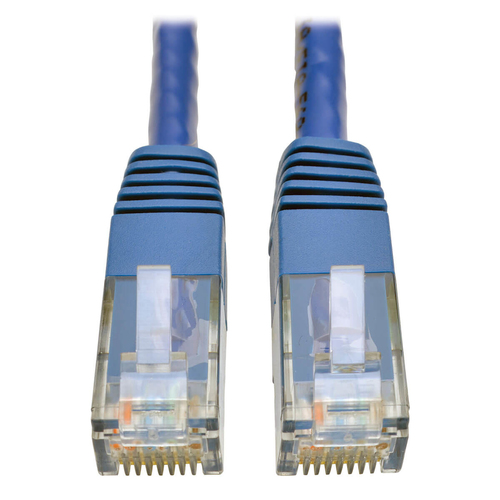

Tripp Lite N200-003-BL Cat6 Gigabit Molded (UTP) Ethernet Cable (RJ45 M/M), PoE, Blue, 3 ft. (0.91 m) Cables & Adaptors

The Ideal Solution for All High-Speed Cat5/5e/6 NetworkingConnects high-speed network components, such as computers, printers, video game systems, Blu-ray players, copy machines, routers and modemsDesigned for 1000Base-T, 10/100Base-T (Ethernet), 100 Mbps TPDDI, 155 Mbps ATM, ISDN, voice, Token Ring Type 3 and EIA/TIA applicationsRecommended for home or office applicationsProvides high-speed connections up to 550 MHz/1 GbpsFlawless signal delivery with minimal near-end crosstalk levelsPremium Construction Ensures Error-Free Signal TransferManufactured from 24 AWG 4-pair stranded UTP with staggered-pin plug designMolded RJ45 connectors and gold-plated copper contacts for maximum conductivity and minimum data lossIntegral strain relief protects cable and connectors from stress and crackingMeets most current industry standards, including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801 and ETL (category 6 draft 11)

€2.25

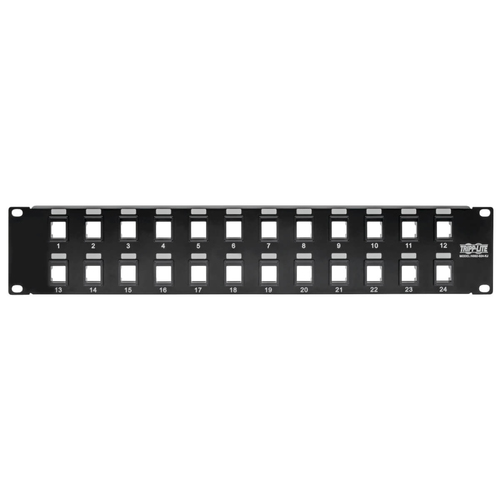

Tripp Lite N062-024-KJ 24-Port 2U Rack-Mount Unshielded Blank Keystone/Multimedia Patch Panel, RJ45 Ethernet, USB, HDMI, Cat5e/6 Cables & Adaptors

The N062-024-KJ 24-Port 2U Rack-Mount Unshielded Blank Keystone/Multimedia Patch Panel manages and organizes the cabling in your network. The 24 blank cutouts accommodate all keystone jacks, including RJ45 Ethernet, HDMI audio/video, voice and USB applications. Ports are clearly numbered to help you identify connections. Mounts easily into 2U of an EIA-standard 19-inch two-post rack or wall-mount rack enclosure. Made from heavy-duty cold-rolled steel. Grounding wire included.

€13.79

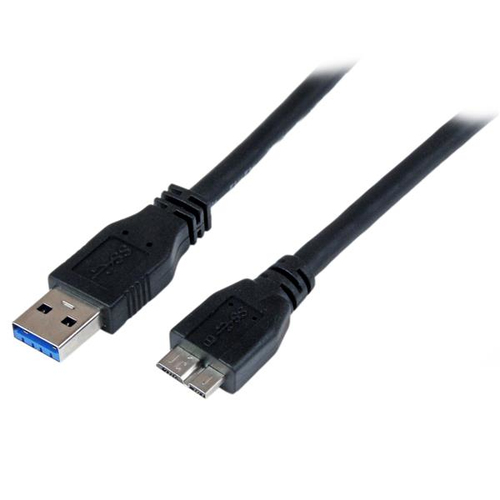

StarTech.com 1m (3ft) Certified SuperSpeed USB 3.0 A to Micro B Cable - M/M Cables & Adaptors
