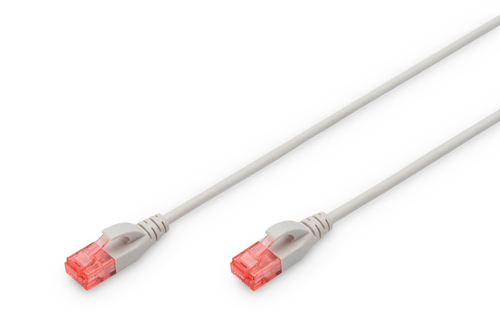

Digitus CAT 6 U/UTP slim patch cord

Name: Digitus CAT 6 U/UTP slim patch cord
Brand: Digitus
SKU: DK-1617-030S
Price: 3.88 EUR
Availability: OutOfStock

Enables flexible and space-saving cabling in your network.

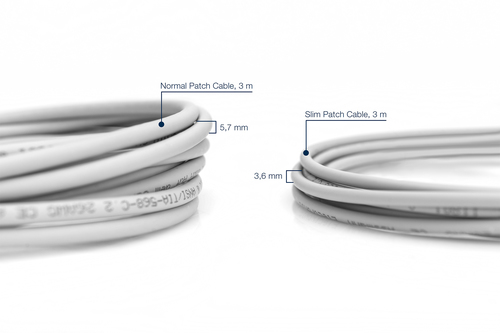

- Small outer diameter of 3.65 mm is suitable for flexible use
- With LSZH (low smoke zero halogen) outer sheath for best fire behaviour and low smoke emission.

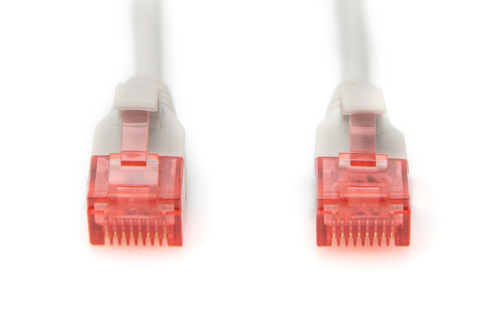

- Transparent red coloured connector for easy identification of Category 6 (250 MHz)
- Inner conductors: Copper (Cu)

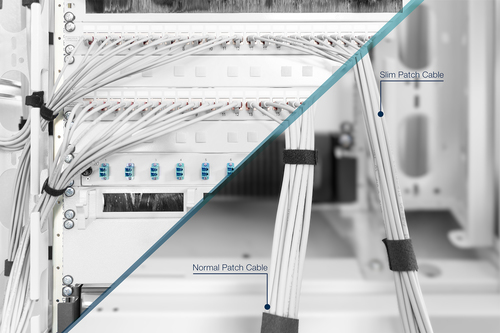

DIGITUS® slim patch cords are characterised by their small outer diameter and flexible sheath. Slim design enables versatile use in your network. Moreover, DIGITUS® slim patch cords are manufactured according to ISO/IEC 11801 and DIN EN 50173 CAT 6 standards. They guarantee that the cable installation complies with the ISO & EN channel specification and provide excellent performance in DIGITUS® CAT 6 cabling. Performance was tested up to 250 MHz, including performance characteristics such as near-end crosstalk (“NEXT”). DIGITUS® patch cords were specifically designed to fully meet all requirements in various application areas. Each cable is equipped with a moulded anti-kink sleeve with strain relief. In addition, the sleeve has a locking lever protection, which prevents kinking of the cables and breaking-off of the locking lever from the connector. Category 6 is simply identified by the red coloured connectors.

ON ORDER

RRP Price €3.88

Specifications

Features

Product colour

Grey

Cable length

0.5 m

Cable standard

Cat6

Cable shielding

U/UTP (UTP)

Connector 1

RJ-45

Connector 2

RJ-45

Connector 1 gender

Male

Connector 2 gender

Male

Jacket material

Low smoke zero halogen (LSZH)

Conductor material

Copper

AWG wire size

28/7

Frequency

250 MHz

Molded cable boot

Yes

Country of origin

China

Sustainability

Doesn't contain

Halogen

Weight & dimensions

Outer diameter

3.65 mm

Packaging content

Quantity per pack

1 pc(s)

Packaging data

Package width

170 mm

Package depth

250 mm

Package weight

60.667 g

Package volume

382.5 cm³

Logistics data

UK Trade Tariff code

85444210

Description

Manufacturer

Digitus

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.060667 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!

Related Products

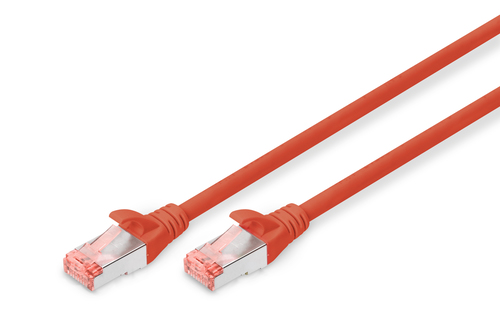

Digitus CAT 6 S/FTP patch cord Cables & Adaptors

Future-oriented standards and high-end quality for your network.- With LSZH (Low Smoke Zero Halogen) sheath for best fire behaviour and low smoke emissions.- Transparent red colored plug with metal shielding for easy identification of Category 6 (250 MHz)- Conductor: Copper (Cu)- PoE+ readyThe DIGITUS® Category 6 Class E patch cords are manufactured and tested to the ISO/IEC 11801 and DIN EN 50173 Category 6 specifications. They will guarantee the installed cabling system is compliant with the ISO & EN channel specification requirements and will provide optimum performance levels of DIGITUS® Category 6 cabling. The performance is tested up to 250 MHz inclusive performance characteristics such as near end cross talk (“NEXT”). DIGITUS® patch cords are designed and produced to fulfill the highest requirements of various application areas in full volume. Each cable is fitted with a molded boot which comes with kink protection and strain relief. Furthermore the boot is equipped with a latch protection that prevents the latching lever against breaking. You can easily identify the Category 6, because of the transparent red colored connector.

€2.72

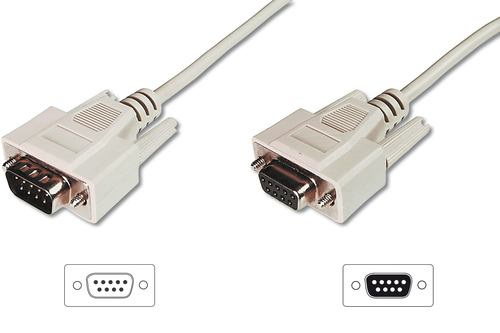

Digitus Datatransfer extension cable, D-Sub9/M - D-Sub9/F Cables & Adaptors

Enables a save and stable connection- No inadvertent removing of connector possibleThis 9-pin serial cable is ideal for the extension of the cable distance between serial devices or useable directly as connection cable.

€8.49

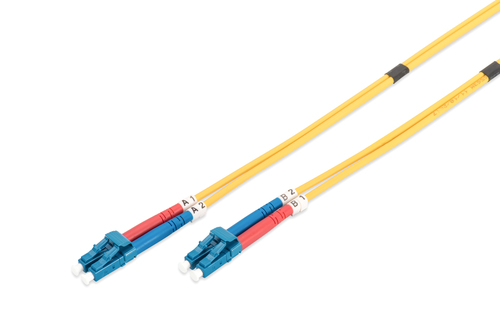

Digitus Fiber Optic Singlemode Patch Cord, LC / LC Cables & Adaptors

Future-oriented standards and high-end quality for your network.FO patch cord, duplex, LC to LC,SM OS2 09/125 µ, 1 m

€4.67

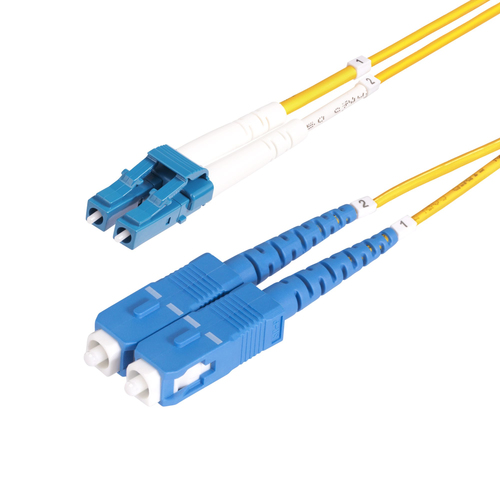

StarTech.com 30m (98.4ft) LC to SC (UPC) OS2 Single Mode Duplex Fiber Optic Cable, 9/125µm, 100G, Bend Insensitive, Low Insertion Loss - LSZH Fiber Jumper Cord Cables & Adaptors

Enhance the performance capabilities of CWDM applications over an OS2 fiber networkOS2 LC to SC Single Mode Duplex Fiber Optic Patch cable facilitates connectivity across 100G networks. It supports Coarse Wavelength Division Multiplexing (CWDM) across an extended wavelength range of 1260-1625nm, improving channel isolation for optimal signal strength over long distances.CompatibilityThis 9/125µm Single Mode fiber cable supports 1260-1625nm laser-optimized sources and is ideal for critical connections between servers, switches, and data center equipment. It is backward compatible with OS1 networks, ensuring a reliable connection in legacy fiber environments.Engineered for Optimal PerformancePrecision-manufactured ceramic ferrules ensure accurate fiber alignment for an insertion loss below 0.3dB. Ultra Physical Contact (UPC)-polished LC to SC fiber ends greatly improve return loss characteristics over older PC polishing techniques. The Bend Insensitive fiber core is surrounded by a layer of low refractive index material. This material reduces the amount of light that can escape the fiber cable by reflecting the light back into the fiber. The OS2 fiber patch cord is engineered for low attenuation and performance that exceeds ITU-T G652.D/G657.A1 and IEC60703-2-50 type B1.3/B6.a1 industry standards.LSZH Cable JacketHoused in a Low-Smoke Zero-Halogen (LSZH) flame-retardant jacket, the OS2 fiber cable emits low smoke and toxic fumes when exposed to extreme heat or in the event of a fire. This enables safer cable installations in areas with poor ventilation including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where compliance with building codes must be considered.Each OS2 fiber cable is individually tested for insertion loss performance and includes a test report, for guaranteed compatibility and 100% reliability.The StarTech.com Advantage

€39.65

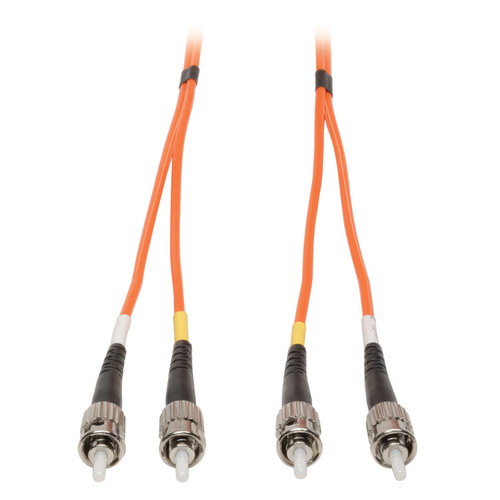

Tripp Lite N302-15M Duplex Multimode 62.5/125 Fiber Patch Cable (ST/ST), 15M (50 ft.) Cables & Adaptors

This multimode duplex fiber optic ST/ST Ethernet cable is manufactured from 62.5/125 zipcord fiber. The cable has ST connectors on each end, a PVC jacket and is FDDI and OFNR rated. Duplex multimode fiber is most commonly used in LAN applications.

€25.91

Digitus Fiber Optic Multimode Patchcord, OM4, LC / LC Cables & Adaptors

Future-oriented standards and high-end quality for your network.FO patch cord, duplex, LC to LC,MM OM4 50/125 µ, 10 m

€10.39

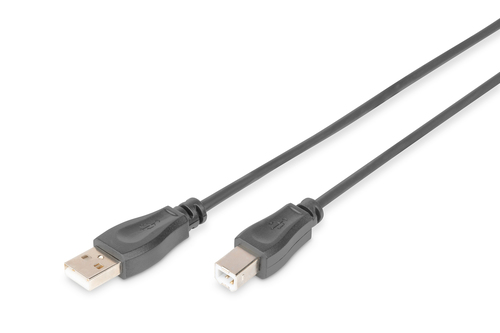

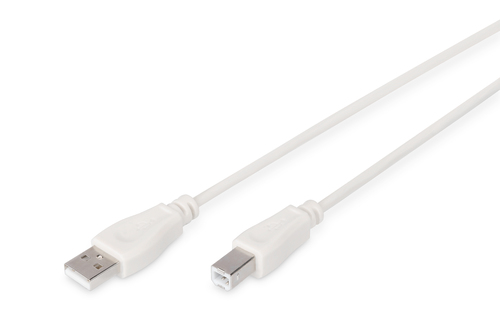

Digitus USB 2.0 connection cable Cables & Adaptors

Allows a reliable and fast connection of external USB devices with the PC, also about longer distances.For connection of external USB devices (with B socket, e. g. external HDD enclosure, scanner or printer) to the USB Host (e. g. PC, Notebook or USB Hub). Datatransferrate up to 480 Mbps (High-Speed).

€1.38

Digitus USB connection cable Cables & Adaptors

Allows a reliable and fast connection of external USB devices to the PC.For connection of external USB devices (with B socket, e. g. external HDD enclosure, scanner or printer) to the USB Host (e. g. PC, Notebook or USB Hub). Datatransferrate up to 480 Mbps (High-Speed).

€0.83

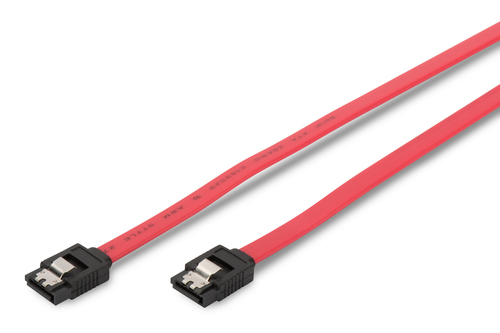

Digitus SATA connection cable Cables & Adaptors

With latch for a secure connectionThis internal data cable used to connect Serial-ATA Hard Drives as well as CD-/DVD/Blue-Ray Recorder to the Mainboard, for example. It's also downward compatible to SATA rev. II/I

€1.64

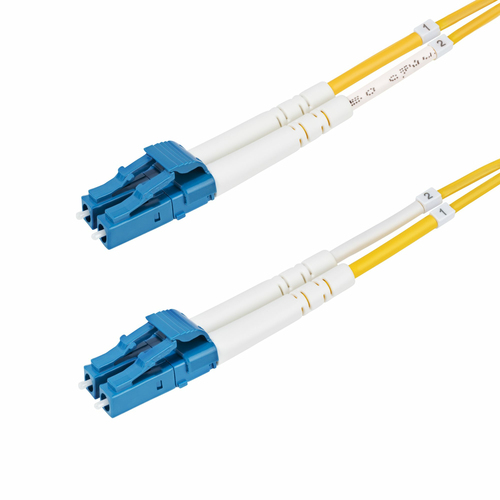

StarTech.com 15m (49.2ft) LC to LC (UPC) OS2 Single Mode Duplex Fiber Optic Cable, 9/125µm, 100G, Bend Insensitive, Low Insertion Loss - LSZH Fiber Jumper Cord Cables & Adaptors
