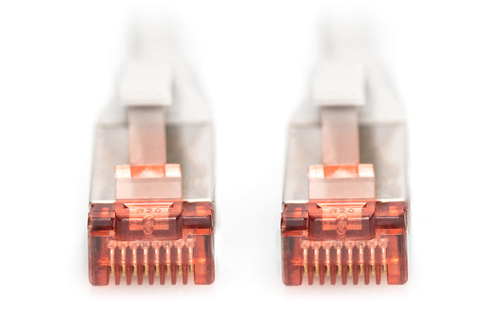

Digitus CAT 6 S/FTP patch cord

Name: Digitus CAT 6 S/FTP patch cord
Brand: Digitus
SKU: DK-1644-250
Price: 18.08 EUR
Availability: InStock

Future-oriented standards and high-end quality for your network.

- With LSZH (Low Smoke Zero Halogen) sheath for best fire behaviour and low smoke emissions.
- Transparent red colored plug with metal shielding for easy identification of Category 6 (250 MHz)
- Conductor: Copper (Cu)
- PoE+ ready

The DIGITUS® Category 6 Class E patch cords are manufactured and tested to the ISO/IEC 11801 and DIN EN 50173 Category 6 specifications. They will guarantee the installed cabling system is compliant with the ISO & EN channel specification requirements and will provide optimum performance levels of DIGITUS® Category 6 cabling. The performance is tested up to 250 MHz inclusive performance characteristics such as near end cross talk (“NEXT”). DIGITUS® patch cords are designed and produced to fulfill the highest requirements of various application areas in full volume. Each cable is fitted with a molded boot which comes with kink protection and strain relief. Furthermore the boot is equipped with a latch protection that prevents the latching lever against breaking. You can easily identify the Category 6, because of the transparent red colored connector.

16 IN STOCK

RRP Price €18.08

Specifications

Features

Product colour

Grey

Cable length

25 m

Cable standard

Cat6

Cable shielding

S/FTP (S-STP)

Connector 1

RJ-45

Connector 2

RJ-45

Connector 1 gender

Male

Connector 2 gender

Male

Jacket material

Low smoke zero halogen (LSZH)

Cabling technology

10/100/1000Base-T(X)

AWG wire size

27/7

Country of origin

China

Operational conditions

Operating temperature (T-T)

-20 - 60 °C

Storage temperature (T-T)

-40 - 80 °C

Operating relative humidity (H-H)

10 - 80%

Storage relative humidity (H-H)

10 - 85%

Certificates

Certification

ISO/IEC 11801, TIA/EIA 568-B IEC 60332-1, IEC 60332-3, IEC 61034

Packaging content

Quantity per pack

1 pc(s)

Packaging data

Package width

280 mm

Package depth

45 mm

Package weight

1.29 kg

Package volume

4914 cm³

Package type

Polybag

Logistics data

Harmonized System (HS) code

84733080

UK Trade Tariff code

85444210

Description

Manufacturer

Digitus

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

N/A

Weight

1.29 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!

Related Products

StarTech.com 4 Port 1U Rackmount USB KVM Switch with OSD Cables & Adaptors

Control up to 4 VGA and USB computers from a single keyboard, mouse and monitorThe SV431DUSBU 4 Port 1U Rack Mountable USB KVM Switch with OSD lets you control multiple USB based computers from a single console (USB keyboard, USB mouse, monitor).Convenient push-button and hot-key controls provide quick, reliable switching between connected computers while manual and auto-scan switching modes and an On Screen Display (OSD) offer additional control options.Designed to ensure maximum space efficiency, the USB KVM switch features a slim 1U design that fits neatly into a server equipment rack/cabinet (with optional mounting bracket SV431RACK) and offers rear cable connections to eliminate cable tangles and minimize workspace disruption.Backed by a StarTech.com 3-year warranty and free lifetime technical support.The StarTech.com Advantage- Extracting the keyboard strokes from the USB connection this KVM enables hot key support for wireless keyboard and mouse combo kits that use a single USB receiver- On Screen Display adds the ability to rename connected computers for easy identification and provides per-port password security- Absolutely no software or drivers required providing a completely OS independent KVM solution

€207.64

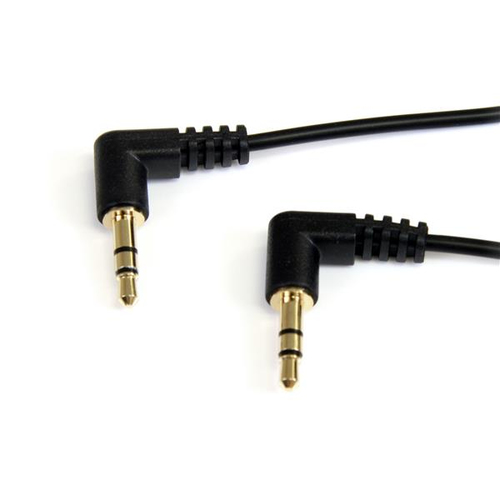

StarTech.com 6 ft Slim 3.5mm Right Angle Stereo Audio Cable - M/M Cables & Adaptors

Connect an iPhone or other MP3 player to a car stereoThis 6-foot Slim 3.5mm Right Angle to Right Angle Stereo Audio Cable is the perfect solution for portable audio devices (iPod, iPhone,iPad, MP3 Players), featuring a slim connector molding that fits easily into a 3.5mm headphone jack, even if the device is in a protective case. For those difficult to reach areas, our Right Angle 3.5mm stereo audio to 3.5mm right angle cable allows you to connect where a normal (straight) stereo audio connector cannot. Like all StarTech.com cables, this 6-foot 3.5mm Slim Stereo Audio Cable is backed by our Lifetime Warranty, providing guaranteed quality and reliability.The StarTech.com Advantage- Unique slim connector design fits most iPod and iPhone 3.5mm stereo jacks without having to remove a protective casing- Gold-plated, molded connectors with strain relief ensure a solid high quality connection between the connected devices- Right angle connectors allows you to easily connect to tight spaces and hard to reach areas where a normal straight connector cannot

€3.19

StarTech.com HDMI or DVI to DisplayPort Active Converter Cables & Adaptors

Connect a DisplayPort monitor to an HDMI equipped computerThe HDMI2DP DVI or HDMI to DisplayPort Converter converts an HDMI, DVI or Mini DVI input signal into a DisplayPort (or Mini DisplayPort) output, eliminating the cost of upgrading your source device hardware or purchasing a new display. With support for full HD resolutions up to 1920x1200, the HDMI2DP converter is the perfect solution for connecting devices that have an HDMI, DVI single-link or mini DVI output, such as video cards (desktop or laptop), video game consoles or home theater receivers, to your DisplayPort-capable display. Backed by a StarTech.com 2-year warranty and free lifetime technical support.The StarTech.com Advantage- Stores EDID information on the converter to ensure better compatibility between the source and display- Supports HDMI or DVI (see accessories for DVI) to DisplayPort conversions, providing an ideal solution for connecting to your new DisplayPort monitor- Simple plug-and-play installation - no software or drivers required

€100.45

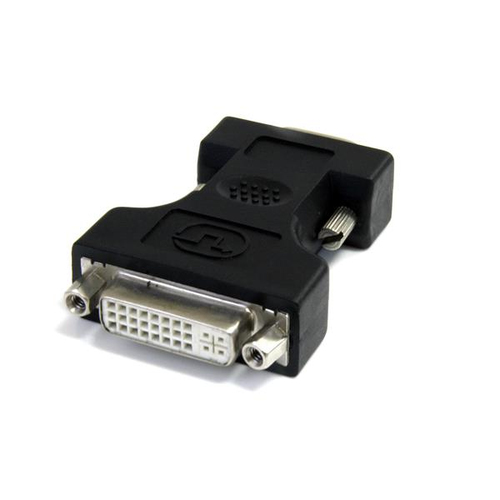

StarTech.com DVI to VGA Cable Adapter - Black - F/M Cables & Adaptors

Use your DVI-I Display with a VGA video cardThe DVIVGAFMBK DVI-A to VGA Display Adapter (F/M) is used to convert a DVI male connector to a VGA male connector.The DVI to VGA adapter is constructed of high quality materials, to ensure dependability, and is backed by StarTech.com's lifetime warranty.Please Note: This product is intended for connections between DVI-I devices, passing an analog signal, to VGA devices. If your device uses a DVI-D connector, please refer StarTech.com's DVI to VGA Converter DVI2VGACON.The StarTech.com Advantage- Cost-effective solution for connecting an analog Flat Panel Display to a PC or Mac computer with VGA output- Backed by StarTech.com lifetime warranty

€8.47

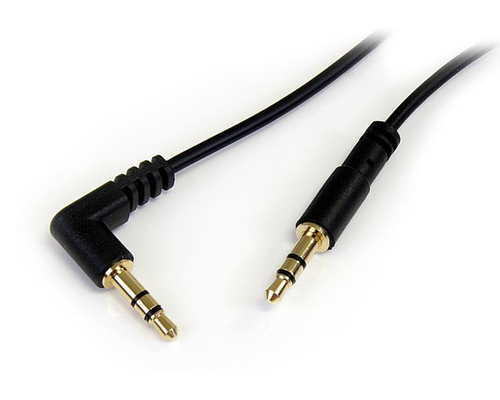

StarTech.com 6 ft Slim 3.5mm to Right Angle Stereo Audio Cable - M/M Cables & Adaptors

Easily connect an iPod or other MP3 player to a car stereoThis 6-foot stereo audio cable features one right angle stereo audio connector and one 3.5mm (straight) connector with a slim connector molding that makes this the perfect solution for portable audio devices (iPod, iPhone,iPad, MP3 Players), even if the device is in a protective case. For those difficult to reach areas, our 3.5mm stereo audio to 3.5mm right angle cable allows you to connect where a normal straight stereo audio connector cannot. Like all StarTech.com cables, this 6-foot 3.5mm Slim Stereo Audio Cable is backed by our Lifetime Warranty, providing guaranteed quality and reliability.The StarTech.com Advantage- Unique slim connector design fits most iPod and iPhone 3.5mm stereo jacks, without having to remove the protective casing- Right angle connector allows you to easily connect to tight spaces and hard to reach areas where a normal straight connector cannot- Gold-plated, molded connectors with strain relief ensure a solid high quality connection between the connected devices

€3.05

StarTech.com 6 ft Slim 3.5mm Stereo Audio Cable - M/M Cables & Adaptors

Connect an iPhone® or other MP3 player to a car stereoThis 6-foot 3.5mm Slim Stereo Audio Cable is the perfect solution for portable audio devices (iPod®; iPhone®; MP3 Players), featuring a slim connector molding that fits easily into a 3.5mm headphone jack, even if the iPod/iPhone/MP3 player is in a protective case.The StarTech.com Advantage

€2.95

StarTech.com DVI to VGA Cable Adapter - Black - M/F Cables & Adaptors

The DVIVGAMFBK DVI-I to VGA Adapter (M/F) is used to convert a DVI Male connector to a VGA female connector.The DVI to VGA adapter is constructed of high quality materials to ensure dependability, and is backed by StarTech.com's lifetime warranty.Please Note: This product is intended for connections between DVI-I and VGA devices. If your device uses a DVI-D connector, please refer StarTech.com's DVI to VGA Converter DVI2VGACON or DVI2VGAEThe StarTech.com Advantage- Backed by StarTech.com's lifetime warranty- Cost-effective solution for connecting an analog Flat Panel Display to a PC or Mac® computer with DVI-I output

€1.38

StarTech.com 3 ft Slim 3.5mm Right Angle Stereo Audio Cable - M/M Cables & Adaptors

Easily connect an iPod or other MP3 player to a car stereoThis 3-foot Slim 3.5mm Right Angle to Right Angle Stereo Audio Cable is the perfect solution for portable audio devices (iPod, iPhone,iPad, MP3 Players), featuring a slim connector molding that fits easily into a 3.5mm headphone jack, even if the device is in a protective case. For those difficult to reach areas, our Right Angle 3.5mm stereo audio to 3.5mm right angle cable allows you to connect where a normal (straight) stereo audio connector cannot. Like all StarTech.com cables, this 3-foot 3.5mm Slim Stereo Audio Cable is backed by our Lifetime Warranty, providing guaranteed quality and reliability.The StarTech.com Advantage- Unique slim connector design fits most iPod and iPhone 3.5mm stereo jacks without having to remove a protective casing- Right angle connectors allows you to easily connect to tight spaces and hard to reach areas where a normal straight connector cannot- Gold-plated, molded connectors with strain relief ensure a solid high quality connection between the connected devices

€4.12

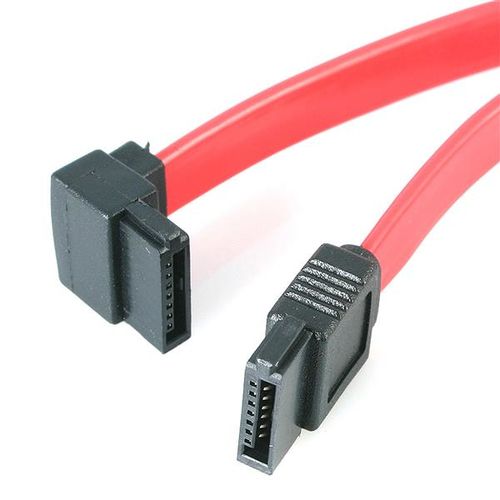

StarTech.com 18in SATA to Left Angle SATA Serial ATA Cable - F/F Cables & Adaptors

Make a left-angled connection to your SATA drive, for installation in tight spacesThe SATA18LA1 Left Angle (90-degree) SATA Cable features a standard (straight) SATA receptacle as well as a left-angled SATA receptacle, providing a simple 18-inch connection to a Serial ATA drive, with full SATA 3.0 bandwidth support of up to 6Gbps when used with SATA 3.0 compliant drives.The left-angled SATA connection enables you to plug in your Serial ATA hard drive in hard to reach areas or tight spaces, while the low profile and flexible design of the cable improves airflow and reduces clutter in your computer case, helping to keep the case clean and cool.Constructed of only top quality materials and designed for optimum performance and reliability this 18" SATA cable is backed by our lifetime warranty.As an alternative, StarTech.com also offers a SATA18RA1" text="18in Right Angle SATA cable (SATA18RA1), which provides the same simple installation as this left angled SATA cable, but allows the cable to connect to the SATA drive from the opposite direction.The StarTech.com Advantage- Left-angled SATA connector easily fits into hard to reach areas and tight spaces, providing flexibility to position your SATA drive as needed within your system case- Features a thin cable design, which helps reduce clutter and increase airflow within the computer/server case, for optimum system performance- Backed by StarTech.com lifetime warranty, ensuring a dependable connection

€5.12

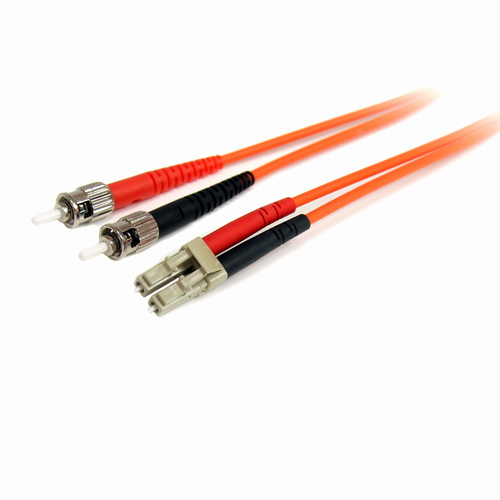

StarTech.com 3m Fiber Optic Cable - Multimode Duplex 62.5/125 LSZH Fiber Jumper Cord - LC/ST Cables & Adaptors
