Digitus CAT 7 S/FTP installation cable, 500 m, simplex, Cca-s1a d1 a1

Digitus CAT 7 S/FTP installation cable, 500 m, simplex, Cca-s1a d1 a1

Name: Digitus CAT 7 S/FTP installation cable, 500 m, simplex, Cca-s1a d1 a1
Brand: Digitus
SKU: DK-1744-VH-5
Price: 439.09 EUR
Availability: OutOfStock

Future-oriented standards and high-end quality for your network.

- 10GBit Ethernet
- 1200 MHz transmission frequency
- Permanent link certified
- PoE Power over Ethernet support
- CPR class Cca-s1a d1 a1

The Digitus Cat 7 installation cable is designed for use in the structured data center and the building cabling according to ISO/IEC 11801, DIN EN 50288-4-1, DIN EN 50173, IEC 60332-3-24, EN 50575. The cable is perfectly suitable for the transmission of both analog and digital data and also supports POE and POE+. The shielding structure is composed of single shielded pairs with a tinned copper braid, which ensures excellent shielding and electrical values.

ON ORDER

RRP Price €439.09

Specifications

Features

Product colour

Orange

Cable length

500 m

Cable standard

Cat7

Cable shielding

S/FTP (S-STP)

Connector 1

Connector 2

Connector 1 gender

Connector 2 gender

Jacket material

Low smoke zero halogen (LSZH)

Conductor type

Solid

Conductor material

Copper

AWG wire size

23/1

Frequency

1200 MHz

Country of origin

China

Operational conditions

Operating temperature (T-T)

-20 - 75 °C

Storage temperature (T-T)

-20 - 60 °C

Certificates

Certification

CPR class Cca

Weight & dimensions

Outer diameter

7.2 mm

Packaging content

Quantity per pack

1 pc(s)

Packaging data

Package width

540 mm

Package depth

540 mm

Package weight

27 kg

Package volume

99144 cm³

Logistics data

Harmonized System (HS) code

84733080

UK Trade Tariff code

85444920

Description

Manufacturer

Digitus

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

27 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!

Related Products

Ubiquiti UACC-Adapter-AC-210W power adapter/inverter Indoor White Cables & Adaptors

An AC power adapter delivers 210W at 54V DC for a PoE switch.

€113.88

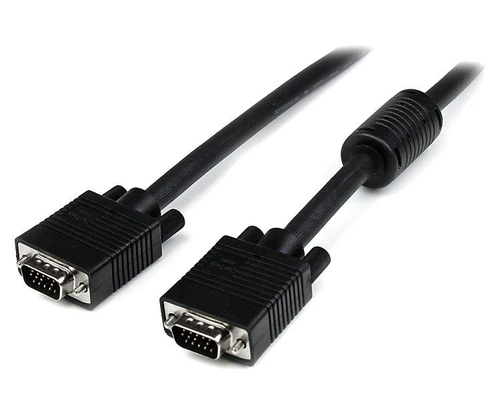

StarTech.com 1m Coax High Resolution Monitor VGA Cable - HD15 M/M Cables & Adaptors
