Name: StarTech.com USB-C Dual Monitor Multiport Adapter up to 4K 60Hz USB-C DP Alt Mode Video Output & HDMI 2.0, or 1080p VGA, 100W PD Pass-Through, USB Typ...
Brand: StarTech.com
SKU: DKM31C3HVCPD
Price: 67.93 EUR
Availability: InStock

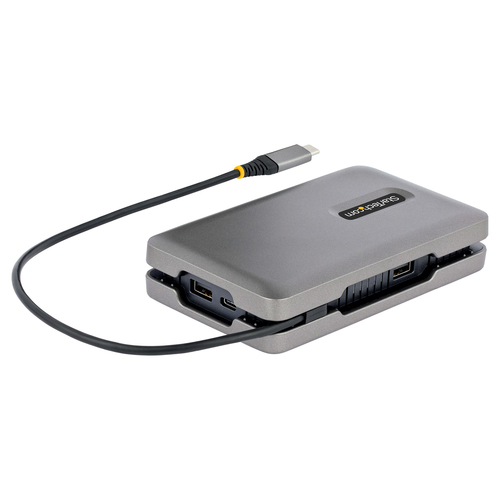

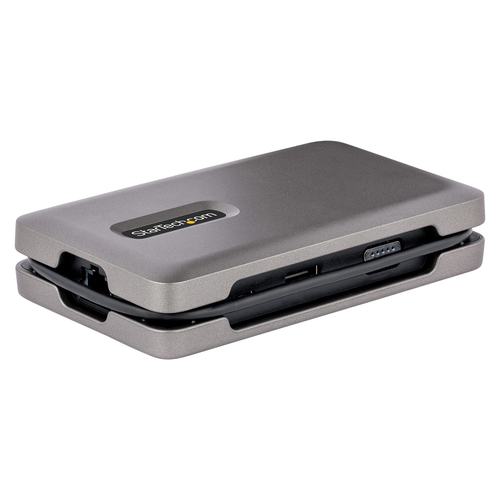

This USB-C™ Multiport Adapter/Docking Station with DisplayPort™ 1.4 (Alt Mode) and Multi-Stream Transport (MST), features three video output options (HDMI, VGA and USB-C video) to support a single or multi-monitor workstation. The USB-C video port supports USB 3.2 Gen 2 (10Gbps) with 10W of power, to connect a USB-C monitor or a USB-C peripheral. In addition, the Docking Station also features a 2-Port USB-A 3.2 Gen 2 (10 Gbps) Hub, a Gigabit Ethernet port, and providing advanced charging through a USB Power Delivery (PD) 3.0 pass-through port. The Multiport Adapter connects to a laptop's USB-C or Thunderbolt 3/4™ port, using the integrated 10-inch (25cm) USB-C cable.

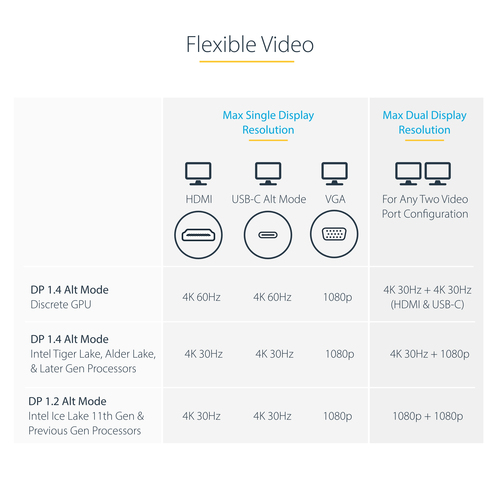

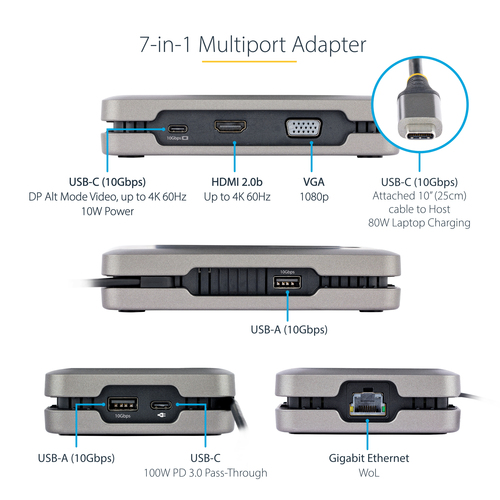

Versatile, High-Performance Video via MST

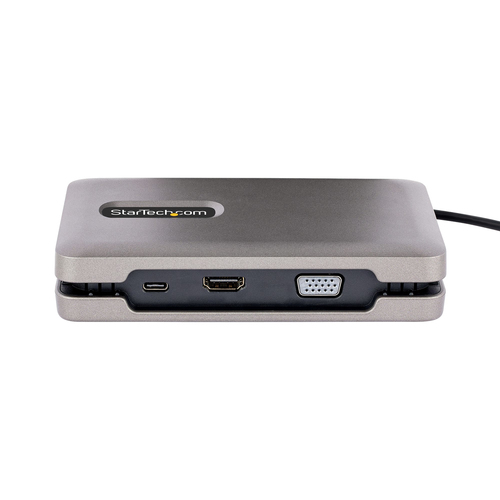

The compact USB Type-C Docking Station features three video output options to turn your laptop into a single or multi-monitor workstation.

HDMI Port
Provides HDR video with resolutions up to 4K 60Hz.

VGA Port
Provides analog video with resolutions up to 1080p 60Hz.

USB-C Port
Provides the industry's first downstream full featured video or data (10Gbps) USB-C port that supports DP Alt Mode video or peripheral connection, on a non-Thunderbolt adapter.

The advanced video versatility of this Multiport Adapter, makes it suitable for a wide variety of applications:

- Connect a portable USB-C monitor as an extended display, to obtain a high resolution external monitor during on-the-go travel between an office desk, home office, hot desk, or the boardroom.
- Connect a USB-C peripheral to the downstream 10Gbps USB-C port, while using the HDMI and/or VGA ports to connect external monitor(s) as extended display(s).

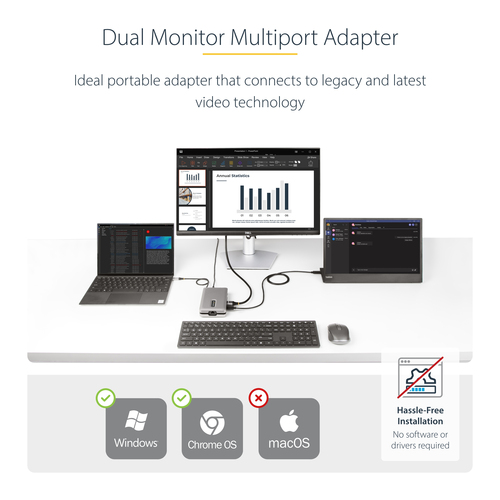

- Connect multiple external monitors as extended displays, using any combination of the two video ports, to create a high-productivity workstation. USB-C video adapters (sold separately) can be used to connect HDMI, DVI, VGA, or DisplayPort monitors to the USB-C video port.

Connect Your Devices

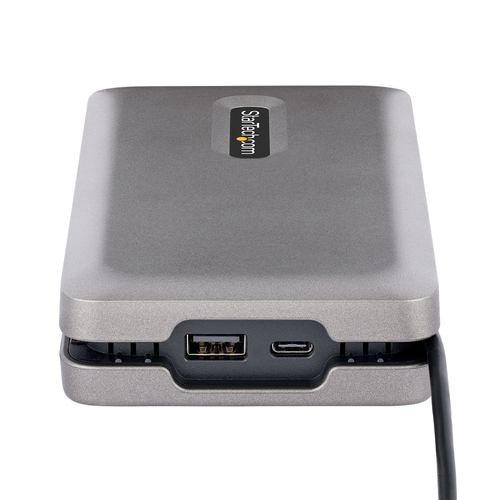

The USB 3.2 Gen 2 (10Gbps) hub features two USB-A ports and one USB-C port, for connecting your USB devices. The downstream USB-C port can be used to connect a monitor, or USB-C peripheral with up to 10W (5V/2A) of power, to power or charge your peripherals.

Multiple Use Cases

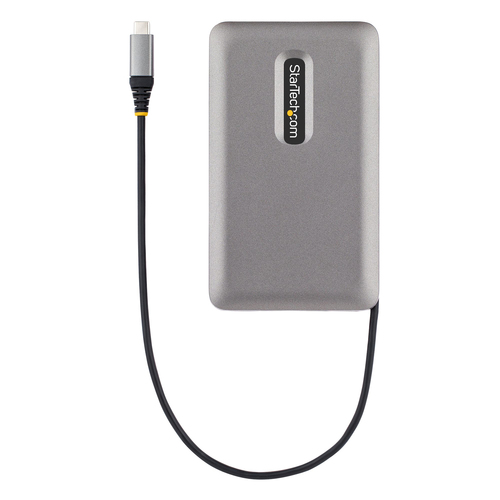

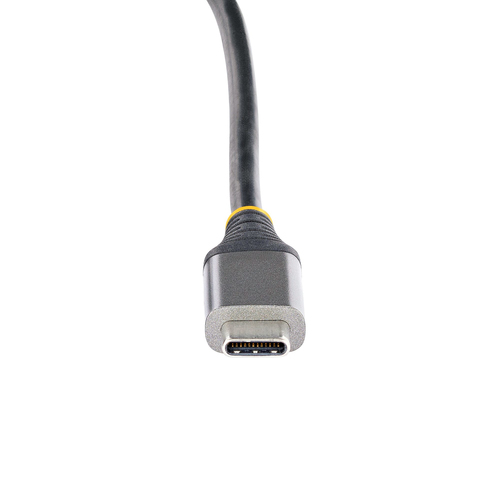

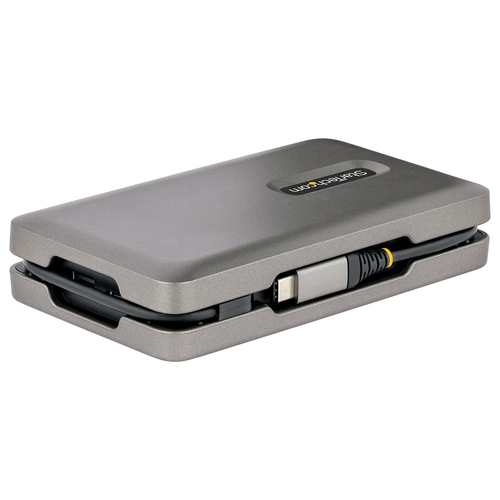

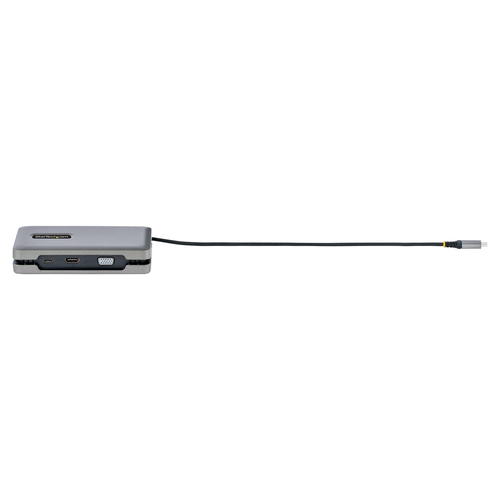

A versatile docking solution for use at an office desk, home office, hot desk, or in the boardroom. It's portable enough to be carried in a bag / backpack for mobile use. The USB-C dock can operate with bus-power alone, or with a USB-C power adapter connected to the USB Power Delivery pass-through port - for full laptop and USB-C peripheral charging. The lightweight docking station features a built-in 10 in (25 cm) USB-C host cable for added setup flexibility and to reduce port strain with laptop connection elevated off desktop surface.

Charge Your Laptop and Peripherals
With support for USB PD 3.0 (100W - 80W charging, 20W reserved for multiport adapter), the Multiport Adapter enables charging of the host computer and peripherals connected to the USB-C port. USB PD is only available when a USB-C power adapter is connected to the PD pass-through port. PD 3.0 features Fast Role Swap (FRS) which prevents USB data disruption when switching power sources (e.g., USB-C power adapter to bus power).

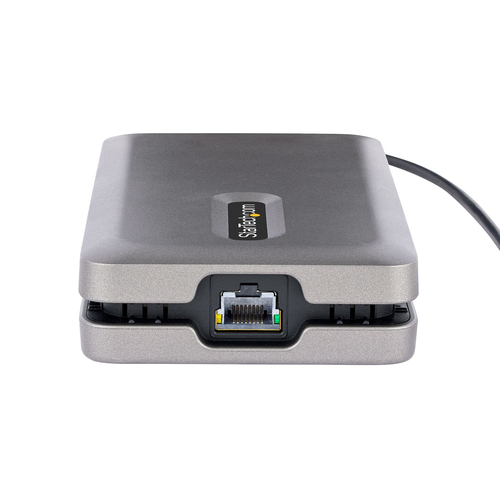

Reliable Network Connectivity
The Gigabit Ethernet port ensures reliable wired network access. Support for Wake-on-LAN (WoL) enables remote booting of the host computer.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
- Advanced Windows Layout Utility: Setup and save custom windows layouts.
- MAC Address Pass-Through Utility: Improve network security.
- USB Event Monitoring Utility: Track and log connected USB devices.
- Wi-Fi Auto Switch Utility: Enable users to quickly access faster network speeds via wired LAN.

1 IN STOCK

RRP Price €67.93

Specifications

Ports & interfaces

Connectivity technology

Wired

Host interface

USB 3.2 Gen 2 (3.1 Gen 2) Type-C

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

USB Power Delivery (USB PD)

Yes

USB Power Delivery up to

100 W

HDMI ports quantity

HDMI version

2.0b

VGA (D-Sub) ports quantity

Microphone in

USB Type-C DisplayPort Alternate Mode

Yes

Network

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

Ethernet LAN data rates

10,100,1000 Mbit/s

Full duplex

Yes

Performance

Card reader integrated

Data transfer rate

10 Gbit/s

HD type

4K Ultra HD

Maximum digital resolution

3840 x 2160 pixels

Maximum analog resolution

1920 x 1200 pixels

Maximum refresh rate

60 Hz

Product colour

Grey

High Dynamic Range 10 (HDR10)

Yes

LED indicators

Activity, Link

UASP support

Yes

Power

Power source type

USB

Power consumption (typical)

12 W

Software

Windows operating systems supported

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64

Other operating systems supported

ChromeOS

Operational conditions

Operating temperature (T-T)

0 - 60 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 90%

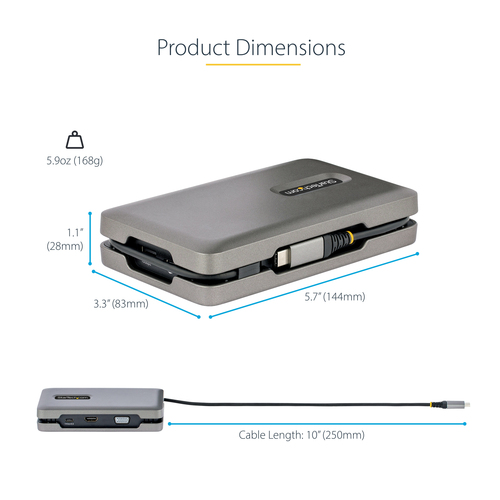

Weight & dimensions

Width

83 mm

Depth

144 mm

Height

28 mm

Weight

170 g

Packaging data

Package width

144 mm

Package depth

207 mm

Package height

38 mm

Package weight

160 g

Packaging content

Quick start guide

Yes

Technical details

Compliance certificates

CE, RoHS

Logistics data

Products per master (outer) case

20 pc(s)

Master (outer) case width

425 mm

Master (outer) case length

230 mm

Master (outer) case height

330 mm

Harmonized System (HS) code

84733020

Other features

Cable length

0.25 m

Chipset

Genesys Logic - GL3590, Genesys Logic - GL9510-UFP, Genesys Logic - GL9510-DFP, Realtek - RTD2142, Realtek - RTL8153

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

N/A

Weight

0.17 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!
