DKT30ICHPD - Accessories by StarTech.com

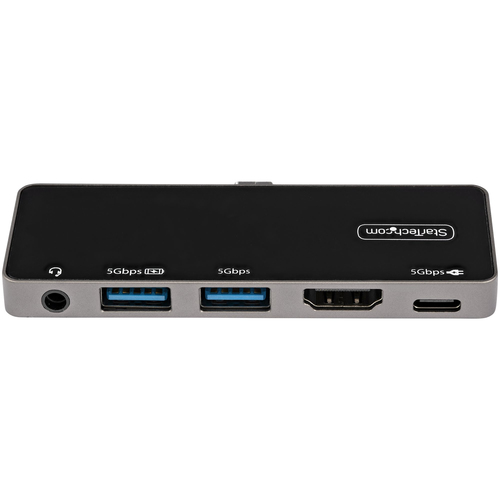

USB-C™ Multiport Adapter | Mac & Windows® | 4K 60Hz | DP1.4 Alt-Mode | HDMI 2.0 | Thunderbolt™ 3 CompatibleThis USB-C multiport adapter with DP 1.4 compatibility turns your iPad Pro, Surface Pro 7, Google Pixelbook and other USB-C™ tablets and laptops into a workstation, anywhere you go. The USB Type-C multiport adapter provides 4K 60Hz HDMI (HDR10) video output, a USB Type-C™ port (data/power), two USB 3.2 Gen 1 Type-A (5Gbps) ports, and a TRRS 4-channel audio port for headset and mic, all through a single connection to your laptop's USB-C or Thunderbolt 3™ port.It offers advanced charging through USB 100W Power Delivery 3.0 and eliminates the need for an attached cable with a direct/flush USB-C connectionEnhance ProductivityThe portable docking station features DP 1.4 support from the host side and supports a single HDMI monitor resolution up to 4K 60Hz (4096 x 2160p), when connected to devices that support DP 1.4, to create a powerful workstation.DP Alt Mode RequiredMaximum ResolutionDP 1.2 Alternate ModeUp to 4K 30HzDP 1.4 Alternate ModeUp to 4K 60HzConnect Your DevicesThe USB-C to USB 3.2 Gen 1 hub gives you two USB-A ports (one BC 1.2 charging port) and a USB-C port (shared for power or data) to connect your USB devices.Charge Your Laptop and PeripheralsWith support for USB Power Delivery 3.0 (up to 100W), the USB Type-C multiport adapter lets you power and charge your laptop, and power your peripherals when connected to a USB-C power adapter. The multiport adapter itself reserves 8W leaving up to 92W of power for charging. PD 3.0 features Fast Role Swap to prevent USB data disruption when you switch power sources (USB-C power adapter to bus power).The DKT30ICHPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.Note: To ensure full adapter functionality, your laptop's USB-C port must support USB Power Delivery.The StarTech.com Advantage

3 IN STOCK

RRP Price €39.74

Specifications

Ports & interfaces

Connectivity technology
Wired
Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB Power Delivery (USB PD)
Yes
USB Power Delivery up to
100 W
HDMI ports quantity
1
HDMI version
2.0
Combo headphone/mic port
Yes
Headphone outputs
1
Headphone connectivity
3.5 mm

Network

Ethernet LAN
No

Performance

Card reader integrated
No
Data transfer rate
5 Gbit/s
HD type
4K Ultra HD
Maximum digital resolution
3840 x 2160 pixels
Number of displays supported
1
Maximum refresh rate
60 Hz
Product colour
Black, Silver

Power

Power consumption (typical)
8 W

Software

Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported
Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura
Mobile operating systems supported
Android, iPadOS
Other operating systems supported
ChromeOS

Operational conditions

Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
-10 - 70 °C
Operating relative humidity (H-H)
10 - 85%

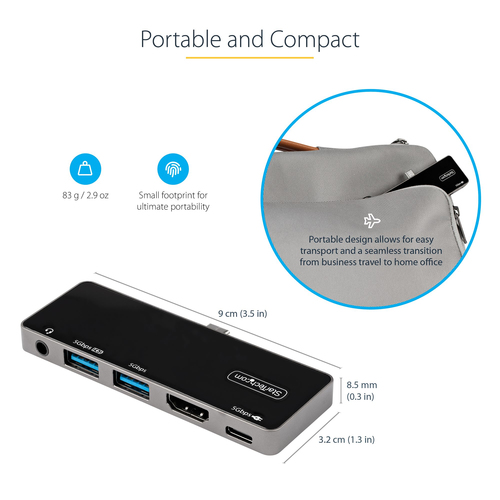

Weight & dimensions

Width
90 mm
Depth
32 mm
Height
8.5 mm
Weight
83 g

Packaging data

Quantity per pack
1 pc(s)
Package width
142 mm
Package depth
170 mm
Package height
30 mm
Package weight
110 g

Packaging content

User guide
Yes

Technical details

Compliance certificates
CE, RoHS

Logistics data

Products per master (outer) case
30 pc(s)
Master (outer) case width
450 mm
Master (outer) case length
340 mm
Master (outer) case height
200 mm
Harmonized System (HS) code
84733020

Other features

Chipset
VIA Labs - VL102, VIA Labs - VL817, Parade - PS186
