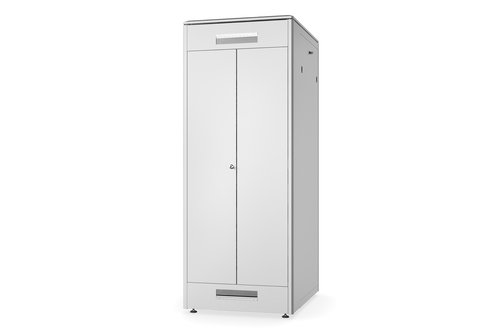

Digitus Network cabinet Unique series - 800x1000 mm (WxD)

Digitus Network cabinet Unique series - 800x1000 mm (WxD)

Name: Digitus Network cabinet Unique series - 800x1000 mm (WxD)
Brand: Digitus
SKU: DN-31124
Price: 1403.83 EUR
Availability: OutOfStock

The DIGITUS® network cabinets of the Unique series combine maximum stability with optimum flexibility in cable management, for the high demands of modern IT infrastructure with a wide variety of application scenarios.

- Divided glass front door for easier access
- Swivel handle with profile half-cylinder lock incl. type 333 key on the front door
- High load capacity of the 483 mm (19") profile rails of up to 1200 kg
- Vertical cable ducts with cable routing aids and cover installed in the front panel
- Modular, openable base chassis with removable 19" blind panels
- Flexible cable routing options thanks to generous cable inlets with brushes in the roof, base and rear
- Roof is prepared to accommodate a fan unit and an attached, removable cover
- Ready for immediate use: Delivery is assembled (cabinet can be completely dismantled if required)

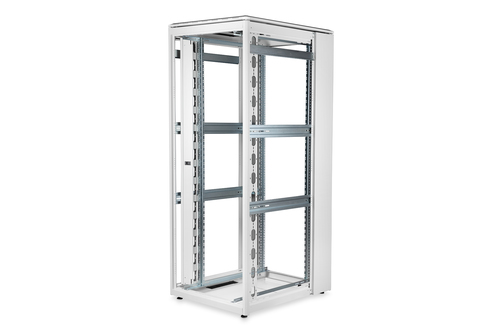

The network cabinets in the Unique series have been designed and produced for particularly convenient and flexible network cabling. Sophisticated optimizations offer market-compliant stability with maximum flexibility. A modular base chassis, which can be opened using screw-fastened 483 mm (19") blind panels, offers sufficient space for cables of all kinds. In addition, there are side cable inlets with brushes at the top and bottom of the enclosure, as well as another at the rear of the base chassis. Rear brush strips above and below the rear door (from 26U) enable use in a wide range of application scenarios. Generous vertical cable ducts with cable routing aids and cover, installed in the front (from 800 mm enclosure width), perfectly round off the versatile features of the network enclosure. Two pairs of cranked and galvanized 483 mm (19") profile rails, labelled with height units that can be read in opposite directions, are installed inside. They are infinitely adjustable and are connected to additional depth struts in the cabinet. Each enclosure is a robust steel construction made from sheet steel up to 1.5 mm thick. The coloring takes the form of electrostatic powder coating in the standard colors grey (RAL 7035) and black (RAL 9005). Modular lockable and removable side panels and doors improve accessibility. Door hinges can be changed. Furthermore, the cabinets can be completely dismantled if required thanks to the demountable design.

ON ORDER

SKU: DN-31124

Manufacturer: Digitus Digitus

RRP Price €1,403.83

Specifications

Features

Rack capacity

42U

Type

Freestanding rack

Maximum weight capacity

800 kg

Product colour

Grey

Material

Glass, Steel

Back door construction

Steel

Front door construction

Glass

Removable side panels

Yes

Side panels included

Yes

Key lock

Yes

Back door key lock

Yes

Front door key lock

Yes

Side panel key lock

Yes

Rack rails

Yes

Adjustable mounting rails

Yes

Adjustable depth

Yes

Adjustable feet

Yes

Cable management

Yes

International Protection (IP) code

IP20

Weight & dimensions

Width

800 mm

Depth

1000 mm

Height

2103 mm

Weight

15.9 kg

Mounting depth (min)

56.3 cm

Mounting depth (max)

74.3 cm

Packaging data

Nuts included

Yes

Number of nuts

Screws included

Yes

Number of screws

Package width

850 mm

Package depth

1050 mm

Package height

2103 mm

Package volume

1876930 cm³

Package weight

159.3 kg

Logistics data

UK Trade Tariff code

94032080

Country of origin

Turkey

Harmonized System (HS) code

85381000

Description

Manufacturer

Digitus

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

15.93 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!
