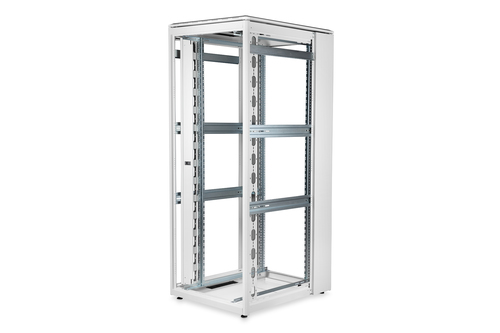

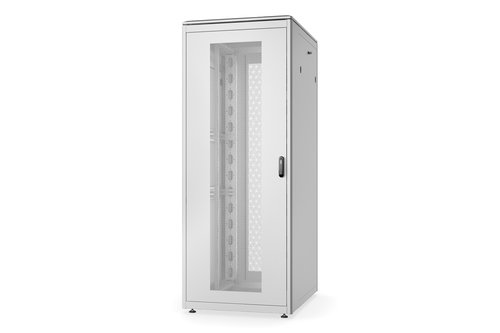

Digitus Network cabinet Unique series - 800x1000 mm (WxD)

Digitus Network cabinet Unique series - 800x1000 mm (WxD)

Name: Digitus Network cabinet Unique series - 800x1000 mm (WxD)
Brand: Digitus
SKU: DN-31126
Price: 1466.29 EUR
Availability: OutOfStock

The DIGITUS® network cabinets of the Unique series combine maximum stability with optimum flexibility in cable management, for the high demands of modern IT infrastructure with a wide variety of application scenarios.

- One-piece steel front and rear door with 70% perforation for improved air circulation & waste heat
- Swivel handle with profile half-cylinder lock incl. type 333 key on the front and rear door
- High load capacity of the 483 mm (19") profile rails of up to 1200 kg
- Vertical cable ducts with cable routing aids and cover installed in the front panel
- Modular, openable base chassis with removable 19" blind panels
- Flexible cable routing options thanks to generous cable inlets with brushes in the roof and floor
- Roof is prepared to accommodate a fan unit and an attached, removable cover
- Ready for immediate use: Delivery is assembled (cabinet can be completely dismantled if required)

The network cabinets in the Unique series have been designed and produced for particularly convenient and flexible network cabling. Sophisticated optimizations offer market-compliant stability with maximum flexibility. A modular base chassis, which can be opened using screwed 483 mm (19") blind panels, offers sufficient space for cables of all kinds. In addition, there are side cable inlets with brushes at the top and bottom of the cabinet, as well as another at the rear of the base chassis. Generous vertical cable ducts with cable routing aids and cover, installed in the front (from 800 mm cabinet width), perfectly round off the versatile features of the network cabinet. Two pairs of cranked and galvanized 483 mm (19") profile rails, labelled with height units that can be read in opposite directions, are installed inside. They are infinitely adjustable and are connected to additional depth struts in the cabinet. Each enclosure is a robust steel construction made from sheet steel up to 1.5 mm thick. The coloring takes the form of electrostatic powder coating in the standard colors grey (RAL 7035) and black (RAL 9005). Modular lockable and removable side panels and doors improve accessibility. Door hinges can be changed. Furthermore, the cabinets can be completely dismantled if required thanks to the demountable design.

ON ORDER

SKU: DN-31126

Manufacturer: Digitus Digitus

RRP Price €1,466.29

Specifications

Features

Rack capacity

42U

Type

Freestanding rack

Maximum weight capacity

800 kg

Product colour

Grey

Material

Steel

Back door construction

Steel/Perforated

Front door construction

Steel

Removable side panels

Yes

Side panels included

Yes

Key lock

Yes

Front door key lock

Yes

Side panel key lock

Yes

Rack rails

Yes

Adjustable mounting rails

Yes

Adjustable depth

Yes

Adjustable feet

Yes

Cable management

Yes

International Protection (IP) code

IP20

Weight & dimensions

Width

800 mm

Depth

1000 mm

Height

2053 mm

Weight

145.8 kg

Mounting depth (min)

68.8 cm

Mounting depth (max)

94.3 cm

Packaging data

Nuts included

Yes

Number of nuts

Screws included

Yes

Number of screws

Package width

850 mm

Package depth

1050 mm

Package height

2100 mm

Package volume

1876930 cm³

Package weight

149 kg

Logistics data

UK Trade Tariff code

94032080

Country of origin

Turkey

Harmonized System (HS) code

85381000

Description

Manufacturer

Digitus

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

145.77 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!

Related Products

N77-C7706-SHPPKG= Accessories

€4,285.98

Cisco MA-MNT-MV-40 mounting kit Grey Plastic Accessories

The telescoping pendant mount adjusts to allow ceiling-mounted cameras to be lowered anywhere from 1,293-2,300 mm.

€225.96

Cisco CAB-ACBZ-12A= power cable Black C13 coupler BR-3-20 Accessories

Power Cords for Cisco Catalyst 2960-S Series.

€74.34

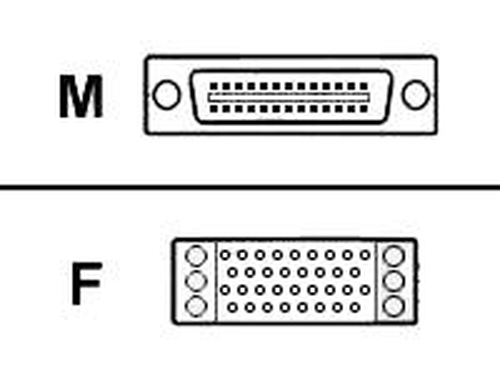

Cisco Smart M/34 V.35 DCE (B) serial cable 3 m Accessories
