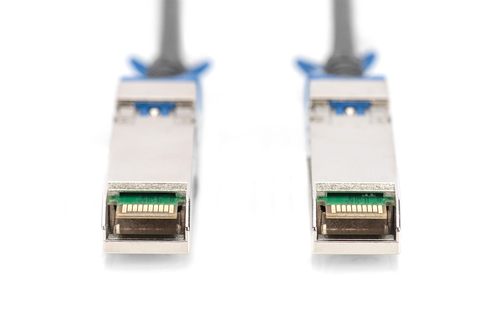

Digitus 25G DAC Cable SFP28 5m

Name: Digitus 25G DAC Cable SFP28 5m
Brand: Digitus
SKU: DN-81245
Price: 77.83 EUR
Availability: OutOfStock

It is suitable for short reach connection between two SFP28 ports in 25G interconnecting networking applications.

- 5m transmission
- AWG 26 Twinax cable
- Up to 25.88243 Gbps data rate
- Hot-pluggable SFP 20 PIN footprint
- Operating temperature: 0~70°C
- Imporved Pluggable Form Factor (IPF)
- Power: +3.3V supply voltage and SFF-8402
- Connector is compatible with SFF-8432 specification

DIGITUS® 25G SFP28 Passive Direct-Attach Copper Twinax Cable are a high-performance, energy-saving, short-range connectivity solution 25G Etherne application, switches, high peroframnce computer, dtat sotrage arrays and telecom system. It consists of a shielded twinax copper cable with pluggable connectors on either end. Passive DAC cable have no electrical components built into the cable assembly and recommend for short transmission distance. Typically 1~2m and max. 5m lengths.

ON ORDER

RRP Price €77.83

Specifications

Features

Cable length

5 m

InfiniBand protocol

Yes

Connector 1

SFP28

Connector 2

SFP28

Connector 1 gender

Male

Connector 2 gender

Male

Cable type

DAC

Product colour

Black

Data transfer rate

25.9 Gbit/s

Plug and Play

Yes

Operational conditions

Operating temperature (T-T)

0 - 70 °C

Storage temperature (T-T)

-40 - 85 °C

Packaging data

Package width

320 mm

Package depth

320 mm

Package height

40 mm

Package volume

4096 cm³

Package weight

262.5 g

Packaging content

Quantity per pack

1 pc(s)

Logistics data

UK Trade Tariff code

85176200

Country of origin

China

Harmonized System (HS) code

85447000

Description

Manufacturer

Digitus

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.2625 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
