Digitus CAT 8.1 field connector, shielded, tool-free mounting connection

25/40GBase-T transmission speed in permanent link up to 24 m and channel link up to 30 m

- High-speed transmission - Supports 25/40GBase-T with a bandwidth of 2000 MHz for ultra-fast networks
- Excellent shielding - The 360° shield contact minimizes interference and guarantees a stable connection

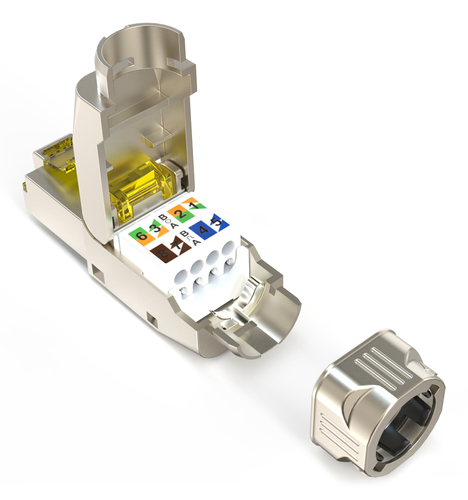

- Tool-free installation - field connector enables quick and easy installation without special tools
- Application area - Ideal for data centers, industry, building cabling and telecommunications

The DIGITUS® CAT 8.1 field connector with tool-free installation connection, which impresses with its future-oriented standards and high-end quality for your network. The field connector is suitable for patch cable installation with solid and stranded conductor cables. It conforms to category 8.1 / 25/40GBase-T ISO/IEC 11801, IEC 60603-7-81. The robust metal housing ensures long-lasting, stable connections. The quick assembly without special tools makes this field connector the ideal choice for installation, repair and maintenance.

10 IN STOCK

RRP Price €7.60

Specifications

Features

Connector(s)
RJ-45
Connector gender
Male
Connector form factor
Straight
Product colour
Silver, Yellow
Cable standard
Cat8.1
Connector contacts plating
Nickel/Gold
Connector shielding
Yes
Power over Ethernet (PoE) type supported
PoE++ (4PPoE)
Networking standards
IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Dielectric strength
1000 V
Insertion force
30 N

Operational conditions

Operating temperature (T-T)
-20 - 70 °C

Packaging data

Quantity per pack
1 pc(s)
Package width
20 mm
Package depth
40 mm
Package height
10 mm
Package weight
20 g

Technical details

Connector material
Phosphor bronze
Housing material
Zinc

Accessories
