Digitus USB-A 5V PoE Splitter

Name: Digitus USB-A 5V PoE Splitter
Brand: Digitus
SKU: DN-95208
Price: 12.02 EUR
Availability: InStock

PoE splitter provides power 5Vdc, 2.5A(max) via USB-A Female connector and data signal at 10/100Mbps

- Provide USB 5V power by PoE splitter
- PoE Input :40-57Vdc PoE 802.3af/at
- USB Power Output: 5Vdc 2.5A(max)
- Data Output Speed: 10/100Mbps (RJ45)
- Wall-moutable
- IP40 rated Protection
- Power output Indicator : Green

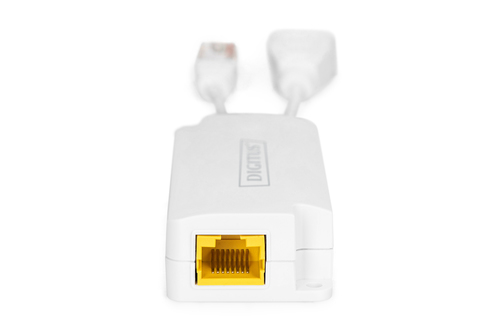

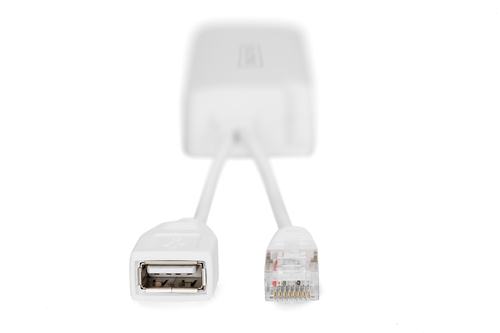

DN-95208 is an indoor rated PoE USB-A splitter specially designed for complex backhaul and networking application. Enclosed in an IP40 fire retardant plastic case with compact design. It works as a converter to get power and data from PoE injector or PoE Switch of 802.3af/at over RJ45 connector then separate power and data to PDs. The output power is 5Vdc, 2.5A(max) via USB-A Female connector to PDs. Such as power communication station, wireless APs, network cameras, Tablet PC, and other USB-A devices. PoE signal into a separate data signal at 10/100Mbps. For planning purposes, the effective distance is 100 meters via Cat5e/Cat6 cables from Ethernet data source to PD.

12 IN STOCK

RRP Price €12.02

Specifications

Features

Networking standards

IEEE 802.3at

Cabling technology

10/100Base-T(X)

Power over Ethernet (PoE)

Yes

Product colour

White

Wall mountable

Yes

International Protection (IP) code

IP40

Cable length

0.124 m

Plug and Play

Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Weight & dimensions

Width

82.3 mm

Depth

34.7 mm

Height

19 mm

Packaging content

Quantity per pack

1 pc(s)

Packaging data

Package width

165 mm

Package depth

97 mm

Package height

40 mm

Package weight

148.5 g

Package volume

640.2 cm³

Power

Input voltage

40 - 57 V

Output voltage

5 V

Output current

2.5 A

Logistics data

UK Trade Tariff code

85176200

Country of origin

China

Description

Manufacturer

Digitus

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

N/A

Weight

0.1485 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!
