DP14A-7M-DP-CABLE - Cables & Adaptors by StarTech.com

Facilitate a longer 8K connection without requiring an external power source

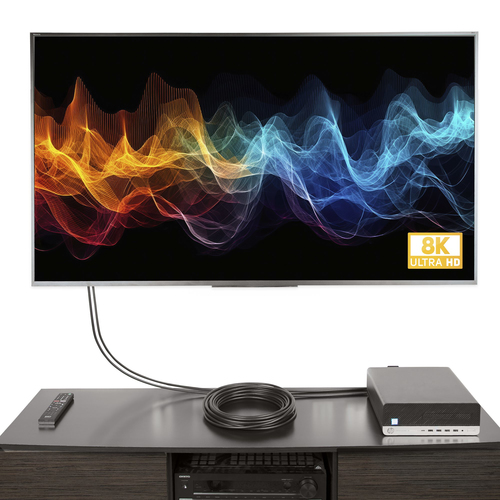

Connect a 4K/8K DisplayPort 1.4-enabled monitor to a source or MST-enabled hub, using this Active DisplayPort 1.4 Cable. The active signal booster delivers reliable audio and 8K video output at up to 25ft (7.6m) without a DisplayPort repeater and external power source. This active DP 1.4 cable is unidirectional with conveniently labeled connectors for source and display to simplify setup.

Durable Design

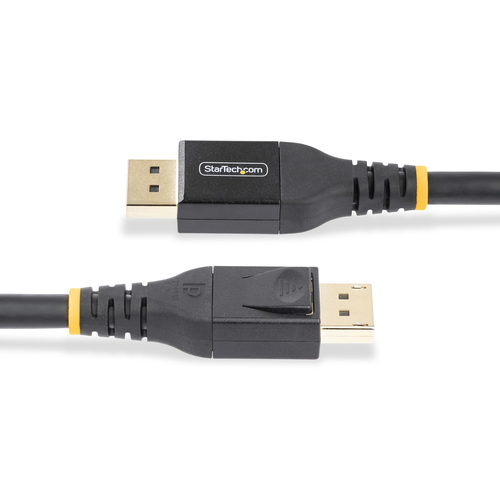

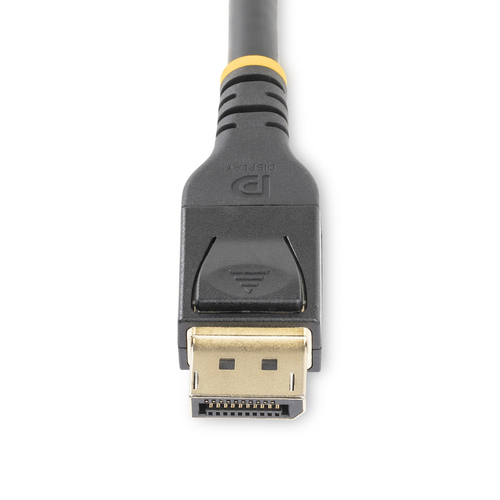

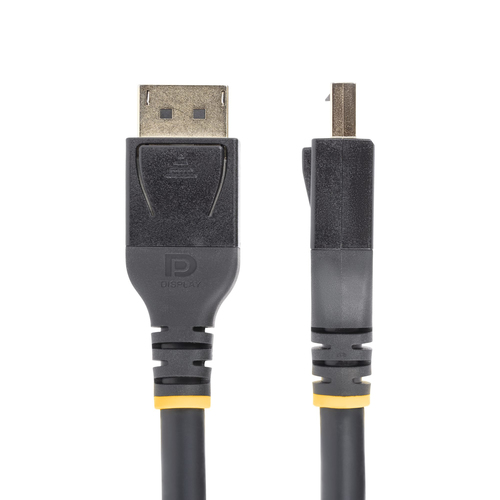

This long DisplayPort cable features a flexible TPE outer jacket to reduce wear from corner bends and long cable runs. Robust strain reliefs enable soft and flexible bends, for convenient positioning of the cable. The latching DP connectors are gold plated for improved conductivity and anti-tarnish properties, and attaches securely to the device to prevent accidental disconnection.

Supported DisplayPort 1.4 Features:

This 8K DisplayPort cable supports all DP 1.4 features:

• Resolutions up to 8K 60Hz, 4K 120Hz, 1440p 240Hz with a compatible DP source and display
• HDCP 2.2 support
• High Bit Rate 3 (HBR3) bandwidth of 32.4Gbps
• High Dynamic Range 10 (HDR10)
• Display Stream Compression 1.2 (DSC 1.2)

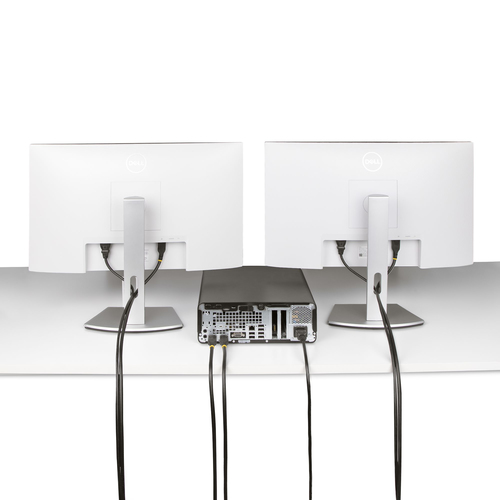

• Multi-Stream Transport (MST) for daisy-chaining multiple monitors
• 32 Uncompressed Digital Audio Channels
• Backward compatible with 5K 60Hz, 4K 120Hz and previous DP versions

The Active DP Cable is constructed with aluminum-mylar shielding to minimize EMI interference for clear and reliable audio/video output. This DP cable is designed for long-term reliability, and is the ideal solution for setting up boardrooms, video walls, and TV signage.

The StarTech.com Advantage

6 IN STOCK

RRP Price €126.06

Specifications

Features

Connector 1 form factor
Straight
Connector 2 form factor
Straight
Connector contacts plating
Gold
DisplayPort version
1.4
Maximum resolution
7680 x 4320 pixels
Supported graphics resolutions
3840 x 2160, 7680 x 4320
Maximum refresh rate
144 Hz
HDCP
Yes
HDCP version
2.2
Display Stream Compression (DSC)
Yes
Display Stream Compression (DSC) version
1.2
Cable length
7.7 m
Connector 1
DisplayPort
Connector 2
DisplayPort
Connector 1 gender
Male
Connector 2 gender
Male
Product colour
Black
Cable material
Copper
Cable shielding
Aluminum mylar foil
Jacket material
Thermoplastic elastomer (TPE)
AWG wire size
24/28
Data transfer rate
25.92 Gbit/s
Bandwidth
32400 MB/s
HBR3 support
Yes
Multi-Stream Transport (MST)
Yes
Fire-resistance rating
VW-1

Operational conditions

Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 85%

Certificates

Compliance certificates
RoHS

Sustainability

Sustainability compliance
Yes

Weight & dimensions

Cable diameter
7.5 mm

Packaging data

Package width
330 mm
Package depth
252 mm
Package height
100 mm
Package weight
500 g

Logistics data

Master (outer) case width
430 mm
Master (outer) case length
380 mm
Master (outer) case height
290 mm
Products per master (outer) case
20 pc(s)
