DP2DVID2 - Cables & Adaptors by StarTech.com

DP2DVID2 - Cables & Adaptors by StarTech.com

Name: StarTech.com DisplayPort to DVI Dual Link Active Adapter - DisplayPort to DVI-D Adapter Video Converter 2560x1600 60Hz - DP 1.2 to DVI Monitor - USB P...
Brand: StarTech.com
SKU: DP2DVID2
Price: 43.65 EUR
Availability: InStock

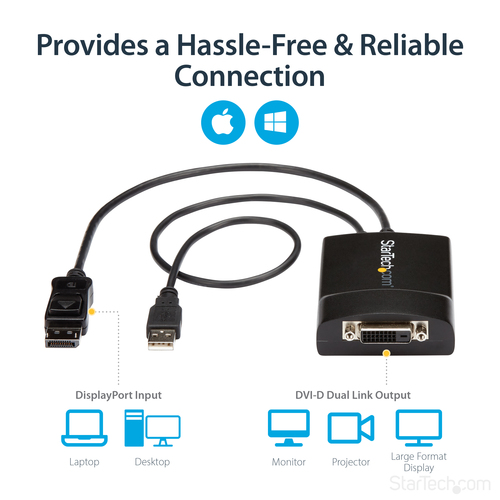

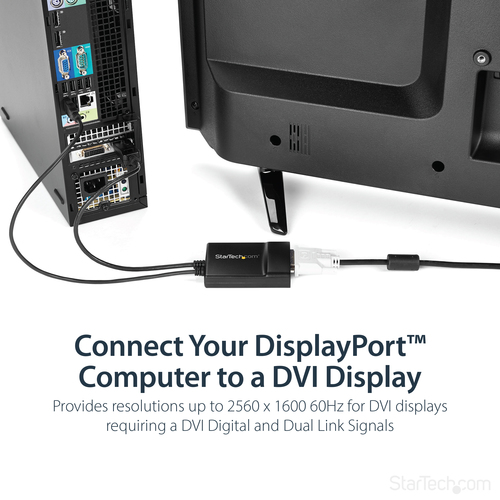

Connect your DVI Dual Link display to a DisplayPort® video source, for high resolution applications

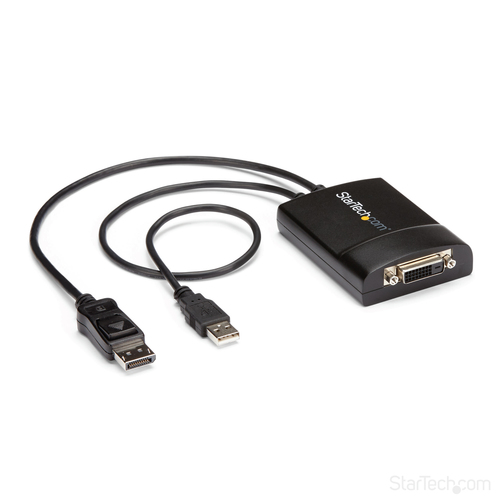

The DP2DVID2 DisplayPort® to DVI (Dual-Link) Adapter actively converts the output signal from a DisplayPort video source for use with a DVI-D display (monitor, etc.) or projector, helping to eliminate the equipment costs of upgrading a DVI display to a newer model for the sake of compatibility.

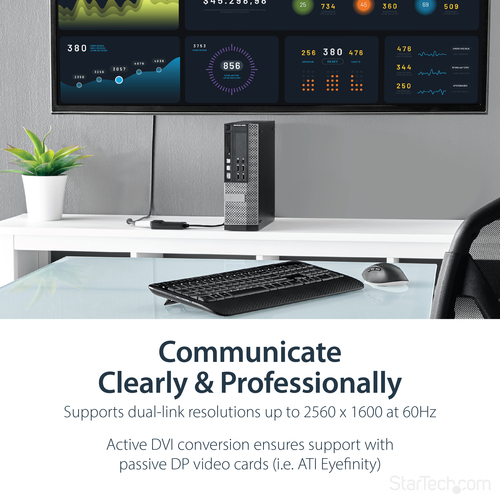

The adapter supports high resolution video (up to 2560x1600 at 60Hz), maintaining the outstanding graphical performance from a DisplayPort-equipped desktop video card, laptop or MacBook®.

DP2DVID2 performs an active DisplayPort-DVI conversion that is suitable for video sources that output either multimode (DP++) or single-mode DisplayPort signals. This ensures the adapter can be used even with graphics cards that aren't capable of outputting multimode DP++ signals, such as ATI® Eyefinity cards.

Back by StarTech.com 3-year warranty, with free lifetime technical support.

The StarTech.com Advantage

13 IN STOCK

RRP Price €43.65

Specifications

Features

Connector 1 form factor

Straight

Connector 2 form factor

Straight

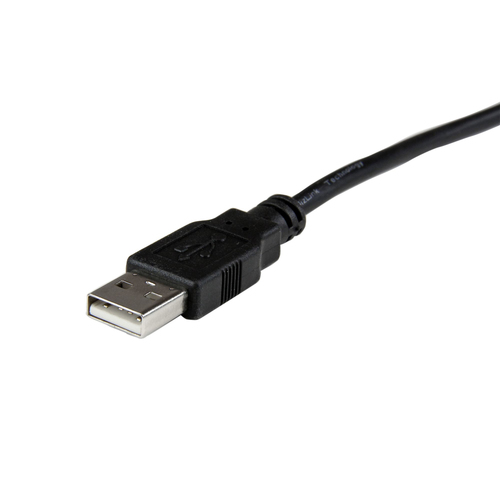

Power source

USB

Cable length

0.37 m

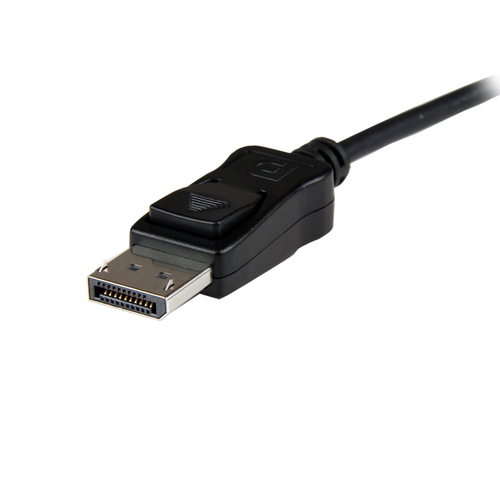

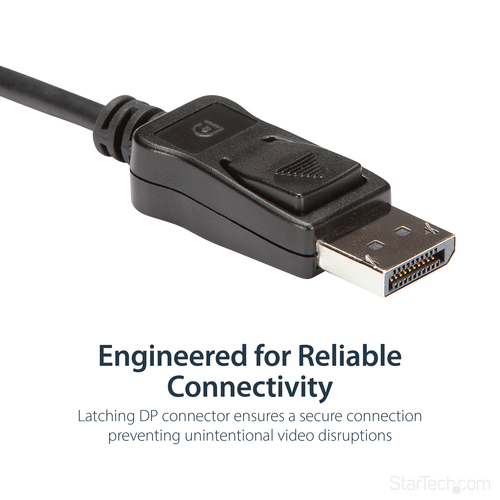

Connector 1

DisplayPort

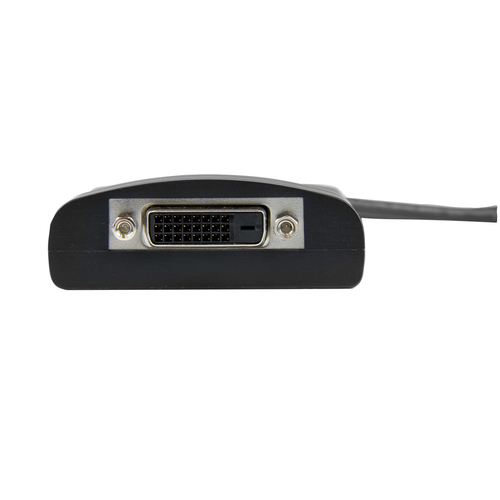

Connector 2

DVI-D

Connector 1 gender

Male

Connector 2 gender

Female

HDCP

Yes

DisplayPort version

1.2

Dual Link DVI

Yes

Maximum resolution

2560 x 1600 pixels

Supported graphics resolutions

1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA)

Maximum refresh rate

120 Hz

HBR2 support

Yes

Product colour

Black

Converter type

Active video converter

Operational conditions

Operating temperature (T-T)

0 - 45 °C

Storage temperature (T-T)

-20 - 70 °C

Certificates

Compliance certificates

CE, RoHS

Certification

RoHS

Weight & dimensions

Weight

160 g

Width

64 mm

Depth

549 mm

Height

22 mm

Packaging data

Package width

174 mm

Package depth

143 mm

Package height

35 mm

Package weight

232 g

Logistics data

Harmonized System (HS) code

84733080

Master (outer) case width

337 mm

Master (outer) case length

497 mm

Master (outer) case height

220 mm

Products per master (outer) case

28 pc(s)

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

N/A

Weight

0.16 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!
