DP2VGAMM6B - Cables & Adaptors by StarTech.com

DP2VGAMM6B - Cables & Adaptors by StarTech.com

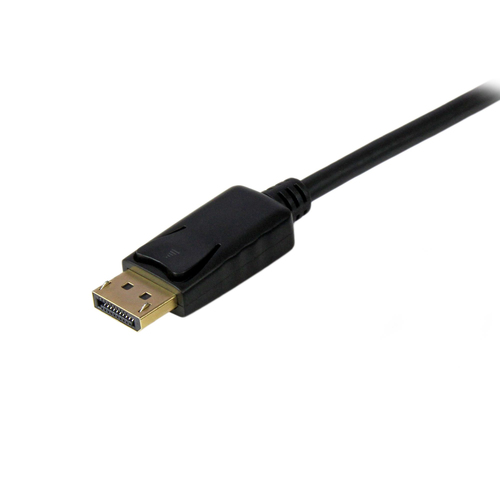

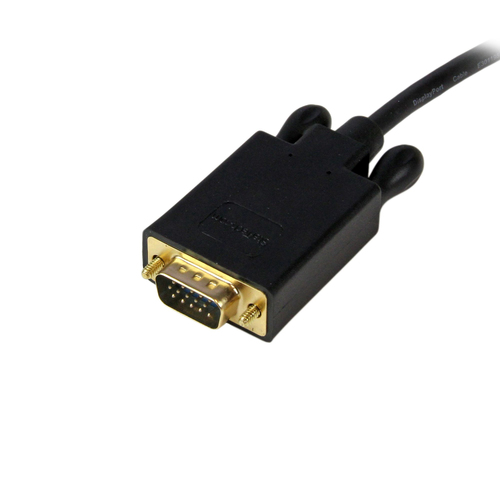

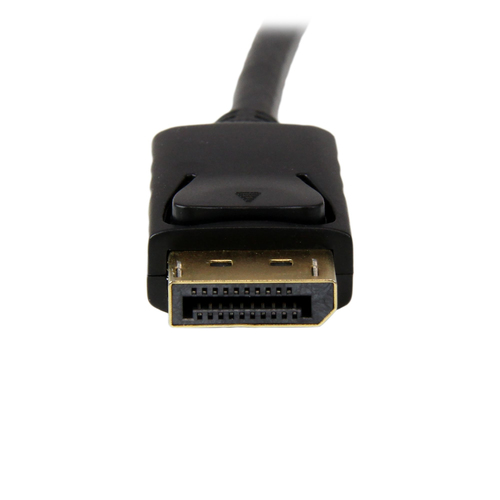

Name: StarTech.com 6ft (1.8m) DisplayPort to VGA Cable - Active DisplayPort to VGA Adapter Cable - 1080p Video - DP to VGA Monitor Cable - DP 1.2 to VGA Con...
Brand: StarTech.com
SKU: DP2VGAMM6B
Price: 32.96 EUR
Availability: InStock

Connect a DisplayPort-equipped PC to a VGA monitor/projector, with a 6ft cable

The DP2VGAMM6B 6ft active DisplayPort to VGA converter cable lets you connect your DisplayPort-equipped desktop or laptop directly to a VGA monitor or projector with no additional adapters or cables required -- a cost-effective solution for enabling your new DisplayPort computer to work with an older VGA monitor or projector.

Plus, because the converter cable supports video resolutions up to 1920x1200 you can convert a DisplayPort video source to VGA without sacrificing video quality.

The DP2VGAMM6B is backed by a 3-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage

21 IN STOCK

RRP Price €32.96

Specifications

Features

Connector 1 form factor

Straight

Connector 2 form factor

Straight

Cable length

1.8 m

Connector 1

DisplayPort

Connector 2

VGA (D-Sub)

Connector 1 gender

Male

Connector 2 gender

Male

DisplayPort version

1.2

Maximum resolution

2048 x 1280 pixels

Supported graphics resolutions

1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2048 x 1280

Supported video modes

1080p

Maximum refresh rate

60 Hz

HBR2 support

Yes

Product colour

Black

Chipset

Analogix - 9832

Plug and Play

Yes

Converter type

Active video converter

Operational conditions

Operating temperature (T-T)

0 - 60 °C

Storage temperature (T-T)

-10 - 70 °C

Operating relative humidity (H-H)

40 - 85%

Certificates

Compliance certificates

CE, RoHS

Weight & dimensions

Weight

103.67 g

Width

35 mm

Depth

1840 mm

Height

15 mm

Packaging data

Package width

195 mm

Package depth

220 mm

Package height

20 mm

Package weight

128 g

Packaging content

Quantity per pack

1 pc(s)

Logistics data

Harmonized System (HS) code

84733080

Master (outer) case width

420 mm

Master (outer) case length

415 mm

Master (outer) case height

435 mm

Products per master (outer) case

120 pc(s)

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

N/A

Weight

0.10367 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
