StarTech.com 3ft (1m) Panel Mount DisplayPort Cable - 4K x 2K - DisplayPort 1.2 Extension Cable Male to Female - DP Video Extender Cord with Panel Mount DP Connector - DP Monitor Cable

Allows a DisplayPort connection to be mounted on a secure easily accessible panel.

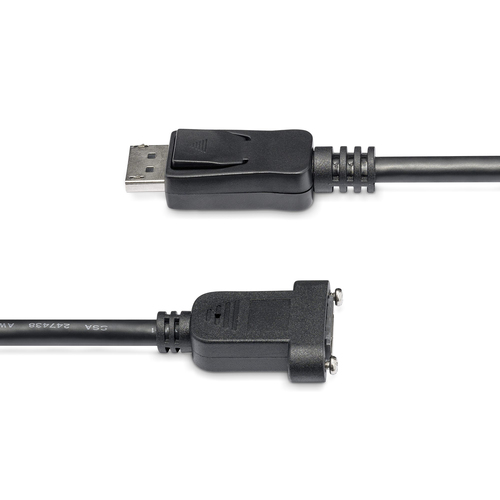

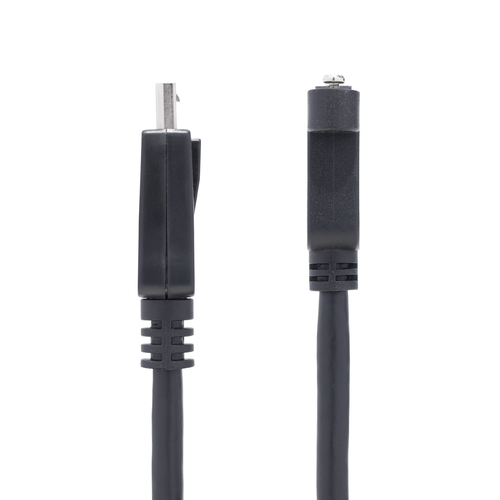

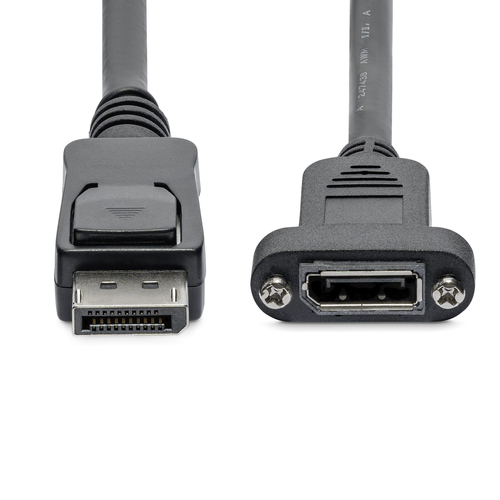

This 3ft panel mount DisplayPort cable features a DisplayPort male connector on one end, and a DisplayPort panel mount (female) molded connector on the other, providing a well-secured, easy to access DisplayPort connection on any machine port or faceplate.

Backed by StarTech.com's Lifetime Warranty

The StarTech.com Advantage

30 IN STOCK
SKU: DPPNLFM3
Manufacturer:
StarTech.com StarTech.com

RRP Price €20.29

Specifications

Features

Connector 1 form factor
Straight
Connector 2 form factor
Straight
Connector contacts plating
Gold
DisplayPort version
1.2
Maximum resolution
3840 x 2400 pixels
Maximum refresh rate
120 Hz
Cable length
0.91 m
Connector 1
DisplayPort
Connector 2
DisplayPort
Connector 1 gender
Male
Connector 2 gender
Female
Latching connectors
Yes
Product colour
Black
Cable rating
CMG (CM)
Jacket material
Polyvinyl chloride (PVC)
AWG wire size
28
Bandwidth
21600 MB/s
Multi-Stream Transport (MST)
Yes
Number of conductors
19

Certificates

Compliance certificates
RoHS

Weight & dimensions

Cable diameter
7.3 mm
Weight
78 g

Packaging data

Package depth
200 mm
Package height
210 mm
Package weight
94 g

Logistics data

Harmonized System (HS) code
84733080
Master (outer) case width
360 mm
Master (outer) case length
400 mm
Master (outer) case height
255 mm
Products per master (outer) case
120 pc(s)
