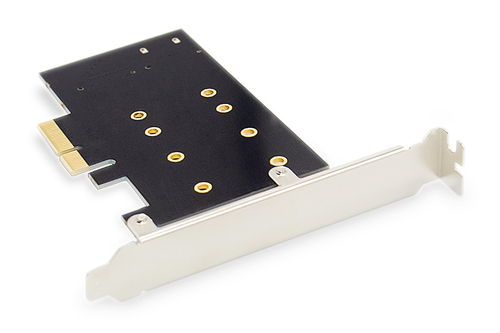

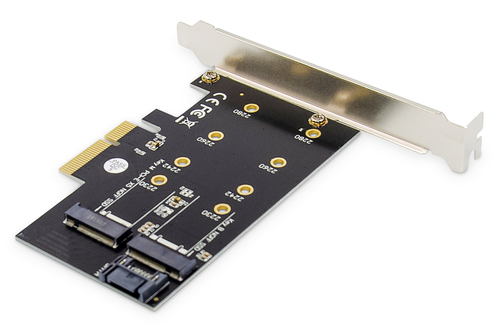

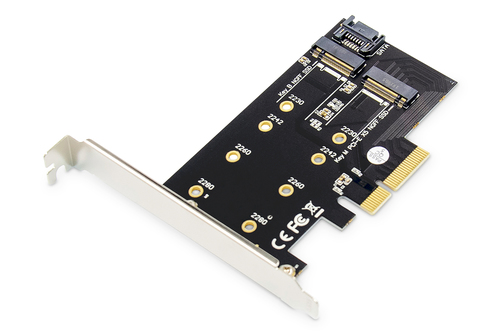

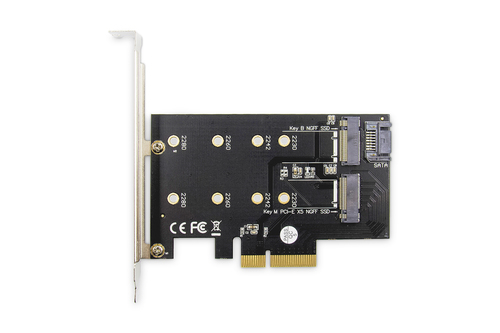

Digitus M.2 NGFF / NVMe SSD PCI Express 3.0 (x4) Add-On Card

Digitus M.2 NGFF / NVMe SSD PCI Express 3.0 (x4) Add-On Card

Name: Digitus M.2 NGFF / NVMe SSD PCI Express 3.0 (x4) Add-On Card
Brand: Digitus
SKU: DS-33170
Price: 9.24 EUR
Availability: InStock

Use M.2 NGFF/NVMe SSDs at PCIe x4 slots on the mainboard – B & M key

- NGFF/NVMe SSD M.2 adapter card for PCIe slots: x4/x8/x16
- Supports NVMe Key B/M M.2 SSD including 2230, 2242, 2260 & 2280
- Supports M-Key M.2 SSD, B-Key and B+M Key M.2 SSD
- Ultra-fast PCI express V3.0 data transfer at up to 6 Gbps / 32 GT/s
- Supports PCIe 3.0 / SATA 3.0
- Low-profile slot bracket included

This PCIe x4 adapter card is suitable for M.2 / NGFF storage media (NVMe) with B, M, B+M key and the dimensions 2230, 2242, 2260 & 2280. Together with the x4 interface and PCIe 3.0 standard, data transfers of up to 6 Gbps (32 GT/s) are possible. Storage media can either be connected via the integrated SATA interface for M.2 SATA SSDs, or via the PCI interface for NVMe PCIe SSDs. Go into turbo mode with the multi-functional M.2 PCIe 3.0 add-on card from DIGITUS®.

1 IN STOCK

RRP Price €9.24

Specifications

Ports & interfaces

Host interface

PCIe

Output interface

M.2

Expansion card standard

PCI 3.0

NVMe

Yes

SATA revision

3.0

Number of M.2 (M) slots

Design

Internal

Yes

Product colour

Black

Country of origin

China

Features

Data transfer rate (max)

6 Gbit/s

Weight & dimensions

Width

114 mm

Depth

70 mm

Height

20 mm

Weight

41.2 g

Packaging data

Quantity

Cables included

SATA

Mounting brackets included

Yes

Quick installation guide

Yes

Package weight

145.5 g

Logistics data

Harmonized System (HS) code

84733020

Description

Manufacturer

Digitus

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

Weight

0.0412 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
