Digitus HDMI KVM IP Extender Set

Name: Digitus HDMI KVM IP Extender Set
Brand: Digitus
SKU: DS-55202
Price: 158.27 EUR
Availability: InStock

Extends the HDMI signal to up to 120 m and offers the possibility of controlling the keyboard and mouse via USB on the receiver unit

- Extends the maximum length for HDMI cable to up to 120 m via a simple network cable
- Extension of the signal (unlimited distance) over the existing local network infrastructure (over IP connection)
- Highest supported video resolution: 1080p / 60 Hz
- Supports KVM function - convenient control of mouse and keyboard via USB on the receiver unit
- Supports LAN-standard 802.3 Ethernet 10/100/100 Mbps
- LED activity indicator for function, keyboard and mouse

The Digitus HDMI KVM extender set consists of a sender unit (local location) as well as a receiver unit (remote location). The HDMI signal can be extended by means of a network cable (CAT 6, 5e, 5) up to a maximum distance of 120m. The HDMI signal can also be extended to an unlimited distance via the existing network infrastructure (via IP connection). The highest supported video resolution is 1080p / 60 Hz. It also makes convenient access on a computer (mouse and keyboard) possible via the USB ports on the receiver unit. It is perfectly suited to industrial, commercial and public applications.

10 IN STOCK

RRP Price €158.27

Specifications

Features

Type

Transmitter & receiver

Connectivity technology

Wired

Maximum transfer distance

80 m

Cable types supported

Cat5, Cat5e, Cat6

Maximum digital resolution

1920 x 1080 pixels

Product colour

Black

Material

Aluminium

Plug and Play

Yes

LED indicators

Yes

Transmitter

Transmitter video port type

HDMI

Transmitter local keyboard/mouse port type

USB

RJ-45 ports quantity (transmitter)

Receiver

Receiver local video port type

HDMI

Receiver local keyboard/mouse port type

USB

RJ-45 ports quantity (receiver)

Power

AC adapter output voltage

5 V

AC adapter output current

1 A

Power consumption (transmitter) (max)

3.5 W

Power consumption (receiver) (max)

3.5 W

Weight & dimensions

Transmitter weight

160 g

Receiver weight

170 g

Packaging data

Package width

176 mm

Package depth

240 mm

Package weight

740 g

Packaging content

AC adapter included

Yes

Manual

Yes

Operational conditions

Operating temperature (T-T)

0 - 60 °C

Storage temperature (T-T)

-20 - 70 °C

Technical details

Dimensions (WxDxH)

89.5 x 109.6 x 26.3 mm

Maximum resolution

1920 x 1080 pixels

Package volume

3379.2 cm³

Logistics data

Country of origin

China

UK Trade Tariff code

85176200

Harmonized System (HS) code

84733080

Description

Manufacturer

Digitus

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

Weight

0.74 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!

Related Products

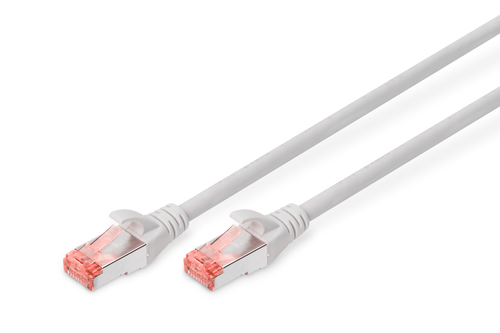

Digitus CAT 6 S/FTP patch cord, 10 units Cables & Adaptors

Future-oriented standards and high-end quality for your network.- With LSZH (Low Smoke Zero Halogen) sheath for best fire behaviour and low smoke emissions.- Transparent red colored plug with metal shielding for easy identification of Category 6 (250 MHz)- Conductor: Copper (Cu)- PoE+ readyThe DIGITUS® Category 6 Class E patch cords are manufactured and tested to the ISO/IEC 11801 and DIN EN 50173 Category 6 specifications. They will guarantee the installed cabling system is compliant with the ISO & EN channel specification requirements and will provide optimum performance levels of DIGITUS® Category 6 cabling. The performance is tested up to 250 MHz inclusive performance characteristics such as near end cross talk (“NEXT”). DIGITUS® patch cords are designed and produced to fulfill the highest requirements of various application areas in full volume. Each cable is fitted with a molded boot which comes with kink protection and strain relief. Furthermore the boot is equipped with a latch protection that prevents the latching lever against breaking. You can easily identify the Category 6, because of the transparent red colored connector.

€10.61

StarTech.com 1m USB 2.0 A to A Cable - M/M Cables & Adaptors

Connect USB 2.0 devices to a USB hub or to your computerThe USB2AA1M 1-meter USB 2.0 cable features two USB 'A' male connectors, delivering a dependable way to connect your PC to a USB hub, or connect USB 2.0 peripherals to a USB hub.Fully rated to USB 2.0 performance specifications, this high quality USB cable is backed by StarTech.com's Lifetime Warranty.The StarTech.com Advantage- Durable design, with high quality USB connectors- Easy to use and install- Backed by StarTech.com lifetime warranty

€4.74

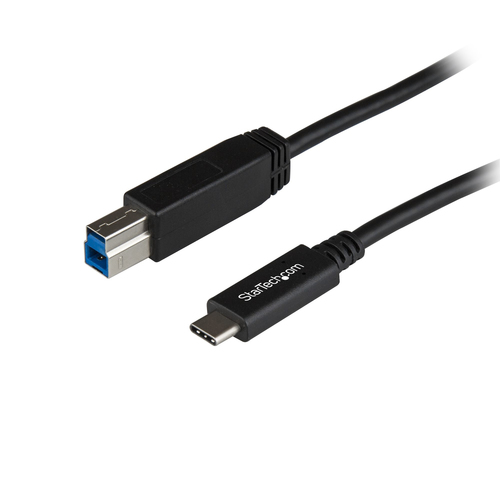

StarTech.com 3.3ft (1m) USB-B to USB-C Cable, USB 10Gbps, Data Cord, USB 3.2 Gen 2, USB-C Data Transfer Cable Cables & Adaptors
