DS50U3 - Computer Systems by Shuttle

Name: Shuttle XPC slim Barebone DS50U3, Intel i3-1315U, 2x LAN (1x 2.5Gbit ,1x 1Gbit), 1xCOM,1xHDMI,1xDP, 1x VGA, fanless, 24/7 permanent operation
Brand: Shuttle
SKU: DS50U3
Price: 568.34 EUR
Availability: InStock

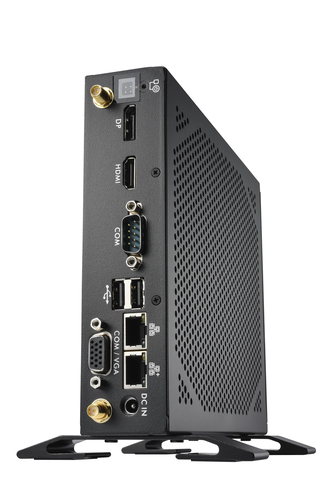

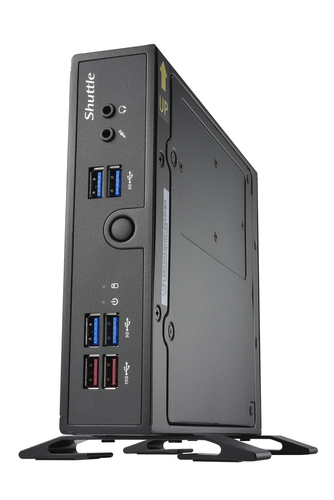

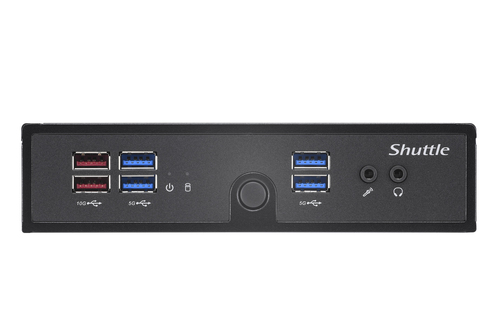

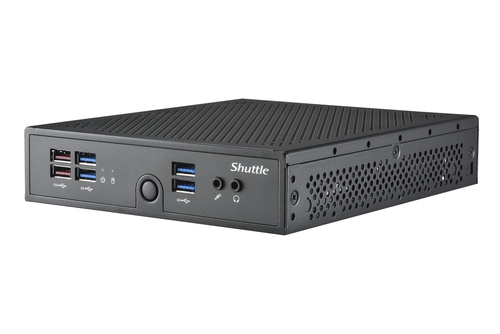

Fanless Slim PC with integrated ULV processor in industrial design

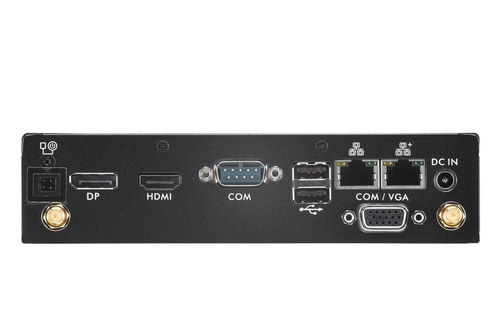

The DS50U-series is a fanless slim PC with a robust 1.3-litre metal chassis and exceptional connectivity. It supports two digital video outputs for UHD/4K displays and one traditional D-Sub/VGA connector. The built-in Intel Gen 12/13 processor provides ample performance for playback of 2160p/60 videos. Installation of components goes straight forward, as there is plenty of interior space for two DDR5 memory modules, one 2.5" drive and two M.2-2280 SSD cards.

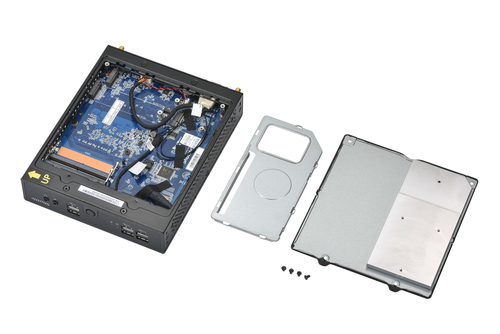

Optionally, an 4G/5G module can be fitted in the second M.2 slot using the optional WWN04 accessory. Thanks to its passive cooling, the system is virtually maintenance-free and is approved for 24/7 nonstop operation. It is big on performance, yet extremely energy-efficient. The Shuttle XPC slim Barebone DS50U series is an ideal platform for professional applications such as digital signage, POS, Kiosk, Thin Client, Office PC and Multimedia.

8 IN STOCK

RRP Price €568.34

Specifications

Processor

Processor manufacturer

Intel

Processor family

Intel® Core™ i3

Processor generation

Intel Core i3-13xxx

Processor model

i3-1315U

Processor cores

Processor threads

Processor boost frequency

4.5 GHz

Performance cores

Efficient cores

Built-in processor

Yes

Performance-core boost frequency

4.5 GHz

Efficient-core boost frequency

3.3 GHz

Processor cache

10 MB

ECC supported by processor

Memory

Memory slots type

SO-DIMM

Number of memory slots

Maximum internal memory

64 GB

Supported memory clock speeds

5200 MHz

Supported memory types

DDR5-SDRAM

Memory channels

Dual-channel

Memory voltage

1.1 V

Storage

Supported storage drive types

HDD & SSD

Storage drive sizes supported

2.5,M.2

Storage drive interface

PCI Express, Serial ATA III

NVMe

Yes

Number of storage drives supported

Graphics

On-board graphics card

Yes

Graphics card family

Intel

On-board graphics card model

Intel® UHD Graphics

Audio

Built-in speaker(s)

Network

Ethernet LAN

Yes

Wi-Fi

LAN controller

Intel® I219, Intel I226-LM

Ports & interfaces

USB 2.0 ports quantity

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

HDMI ports quantity

HDMI version

2.0b

VGA (D-Sub) ports quantity

DisplayPorts quantity

DisplayPort version

1.4

Microphone in

Yes

Headphone outputs

Ethernet LAN (RJ-45) ports

Serial ports quantity

DC-in jack

Yes

Design

Chassis type

1.3L sized PC

Product colour

Black

Cooling type

Passive

On/off switch

Yes

LED indicators

HDD, Power

Housing material

Steel

Cable lock slot

Yes

Cable lock slot type

Kensington

VESA mounting

Yes

Panel mounting interface

75 x 75,100 x 100 mm

Product type

Mini PC barebone

Performance

Number of processors supported

BIOS type

UEFI AMI

Trusted Platform Module (TPM)

Yes

Trusted Platform Module (TPM) version

2.0

Audio chip

RealTek ALC888S

Technical details

Compliance certificates

BSMI, CB, CE, Federal Communications Commission (FCC), RCM, RoHS, VCCI, cTUVus

Logistics data

Harmonized System (HS) code

84733080

Software

Windows operating systems supported

Windows 10, Windows 11

Linux operating systems supported

Yes

Operating system installed

Sustainability

Sustainability compliance

Yes

Sustainability certificates

ENERGY STAR, ErP

Power

Power supply type

External AC adapter

Power supply

90 W

Number of power supply units

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

AC adapter output voltage

19 V

AC adapter output current

1.6 A

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

10 - 90%

Weight & dimensions

Width

200 mm

Depth

165 mm

Height

39.5 mm

Weight

1.6 kg

Package weight

2.3 kg

Packaging content

Power cord included

Yes

AC adapter included

Yes

Quick start guide

Yes

Description

Manufacturer

Shuttle

WH1 (1–2 Days)

WH2 (1–3 Days)

WH3 (5–7 Days)

N/A

Weight

1.6 kg

Country of Origin

N/A

Datasheet
