DUAL-M2-PCIE-CARD-B - Cables & Adaptors by StarTech.com

Dual M.2 NVMe / AHCI | PCIe 4.0 x8 or x16 Slot | Bifurcation

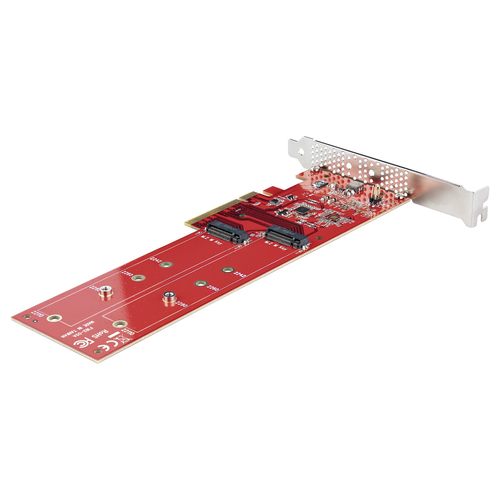

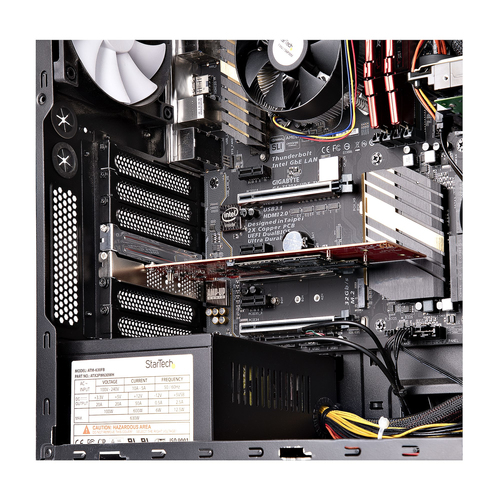

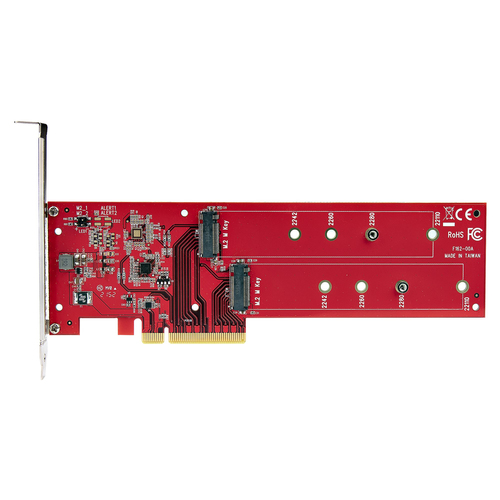

This Dual M.2 PCIe SSD Adapter adds two high performance PCIe M.2 SSDs (NVMe and AHCI) into the PCIe x8 or x16 slot of a desktop, workstation, or server.

Boost System Performance

Take full advantage of the fast performance and compact size of PCIe M.2 internal solid-state drives, with read and write speeds up to 7.8GBps per drive.

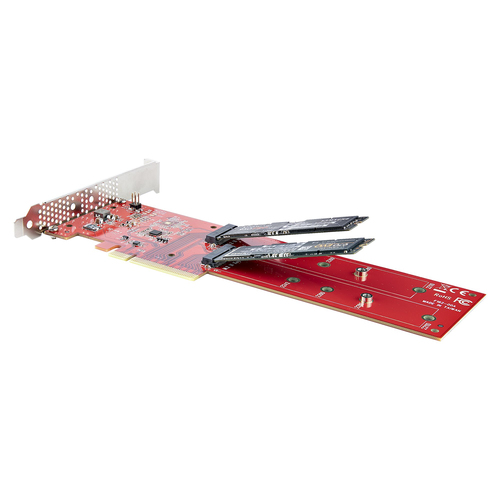

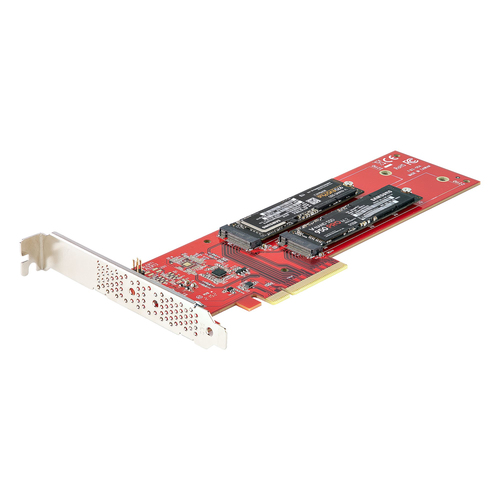

Access two M.2 PCIe SSDs simultaneously

No on-board chip leads to wide system compatibility. This card requires PCIe bifurcation, meaning it easily integrates into any system with an available x8 or x16 PCIe slot that supports PCIe bifurcation.

Utilize software RAID, such as Storage Spaces (Microsoft) or mdraid/mdadm (Linux), to build a RAID array, adding redundancy or enhancing system performance.

Wide Compatibility

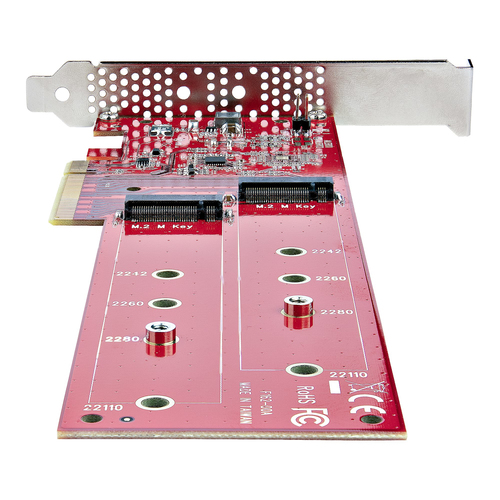

The PCIe M.2 NGFF (M Key or B+M Key) adapter supports PCIe NVMe and PCIe AHCI M.2 SSDs including 2242, 2260, 2280 and 22110mm drives. The PCIe M.2 Adapter Card does not require any software or drivers, meaning it works with most operating systems, if the computer/motherboard supports bifurcation.

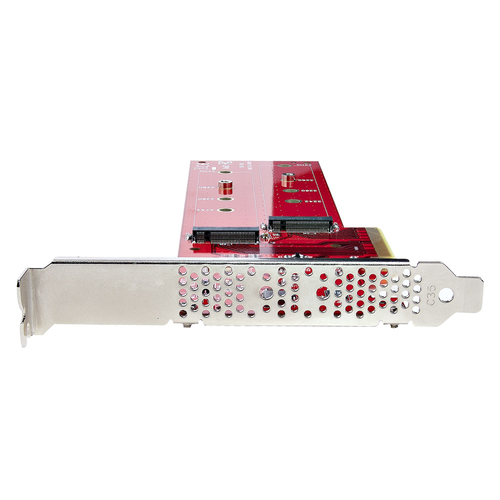

Vented Brackets

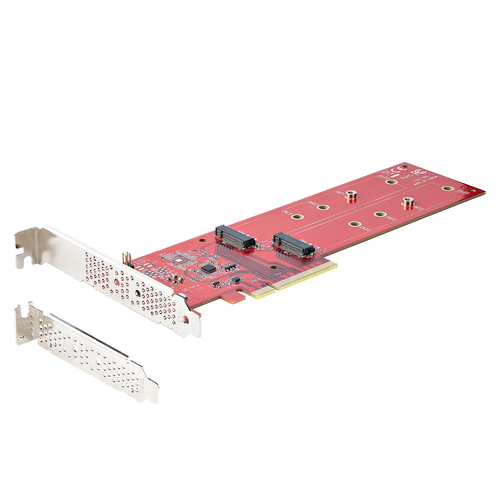

The included full and low-profile vented brackets increase air flow to improve heat dissipation, which aids in maintaining optimal and reliable operating temperatures.

The DUAL-M2-PCIE-CARD-B is backed for 2-years by StarTech.com, including free 24/5 multi-lingual technical assistance

The StarTech.com Advantage

ON ORDER

RRP Price €105.27

Specifications

Ports & interfaces

Host interface
PCIe
Output interface
M.2
Expansion card standard
PCIe 4.0

Design

Internal
Yes
Product colour
Red
LED indicators
Yes
Mean time between failures (MTBF)
6493014 h
Hot-swap
No

Features

Data transfer rate (max)
7.8 Gbit/s

Operational conditions

Operating temperature (T-T)
-40 - 80 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
15 - 90%

System requirements

Windows operating systems supported
Yes
Linux operating systems supported
Yes
Supported storage drive heights
22 mm

Weight & dimensions

Width
102 mm
Depth
228 mm
Height
22 mm
Weight
74 g

Packaging data

Mounting brackets included
Yes
Screws included
Yes
Quick installation guide
Yes
Package width
170 mm
Package depth
290 mm
Package height
30 mm
Package weight
192 g

Logistics data

Products per master (outer) case
30 pc(s)
Master (outer) case width
380 mm
Master (outer) case length
500 mm
Master (outer) case height
310 mm
