StarTech.com Gigabit Ethernet Fiber Media Converter with Open SFP Slot

StarTech.com Gigabit Ethernet Fiber Media Converter with Open SFP Slot

Name: StarTech.com Gigabit Ethernet Fiber Media Converter with Open SFP Slot
Brand: StarTech.com
SKU: ET91000SFP2
Price: 212.79 EUR
Availability: InStock

Convert and extend a Gigabit Ethernet connection over fiber using the Gigabit SFP of your choice

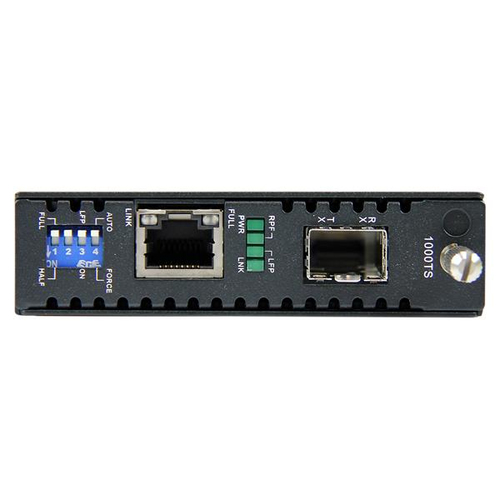

The ET91000SFP2 Open SFP Fiber Media Converter converts and extends a Gigabit Ethernet connection over fiber, using the Gigabit SFP of your choice.

A versatile solution for connecting an Ethernet (1000Base-T) network to remote network segments over a fiber backbone, the media converter features an open SFP slot that lets you choose the MSA-Compliant Gigabit SFP that best suits your fiber connection mode (single / multi-mode) and distance requirements (see our full line of for compatible solutions).

The fiber to Ethernet converter has a durable all-steel chassis and offers simple plug-and-play installation, while support for full-duplex operation and Jumbo Frame support provides efficient network operation.

For added versatility, this Gigabit media converter supports standalone operation, or installation into the 20 Slot, ETCHS2U" text="2U Rackmount Chassis (ETCHS2U). For applications where multiple chassis-mounted media converters are required, this Gigabit media converter can be purchased as a ET91000SFP2C" text="Card Module only (ET91000SFP2C).

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Install the SFP of your choice with the open SFP slot
- Operate as a standalone media converter or install into the ETCHS2U chassis
- Ensure maximum up-time with link-loss forwarding and remote status monitoring

2 IN STOCK

SKU: ET91000SFP2

Manufacturer:

StarTech.com

RRP Price €212.79

Specifications

Network

Maximum data transfer rate

1250 Mbit/s

Converter input interface

1000Base-T

Converter output interface

1000Base-LX, 1000Base-SX

Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z

Ethernet interface type

Gigabit Ethernet

Ethernet LAN data rates

1000 Mbit/s

Auto MDI/MDI-X

Yes

Duplex system

Full, Half

Performance

Mean time between failures (MTBF)

65000 h

Features

Internal

LED indicators

Yes

Product colour

Black

Housing material

Steel

Ports & interfaces

Connectivity technology

Wired

Ethernet LAN (RJ-45) ports

Fiber ports quantity

Fiber optic connector

SFP

Power

Input voltage

100 - 240 V

Input current

0.36 A

Output voltage

12 V

Output current

1 A

Power consumption (typical)

8 W

Power over Ethernet (PoE)

External power adapter

Yes

Weight & dimensions

Width

95 mm

Depth

160 mm

Height

20 mm

Weight

400 g

Operational conditions

Operating temperature (T-T)

0 - 60 °C

Storage temperature (T-T)

-10 - 70 °C

Operating relative humidity (H-H)

10 - 90%

Packaging content

Manual

Yes

Packaging data

Package width

137 mm

Package depth

208 mm

Package height

92 mm

Package weight

786 g

Certificates

Compliance certificates

RoHS

Certification

FCC

Logistics data

Harmonized System (HS) code

85176990

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

N/A

Weight

0.4 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
