HB31C2A2CME - Cables & Adaptors by StarTech.com

HB31C2A2CME - Cables & Adaptors by StarTech.com

Name: StarTech.com 4 Port USB C Hub 10Gbps - Metal Industrial USB-C Hub - 2x USB-C & 2x USB-A - ESD Surge Protection - USB-C or USB-A Host - Self-Powered Mo...
Brand: StarTech.com
SKU: HB31C2A2CME
Price: 179.96 EUR
Availability: InStock

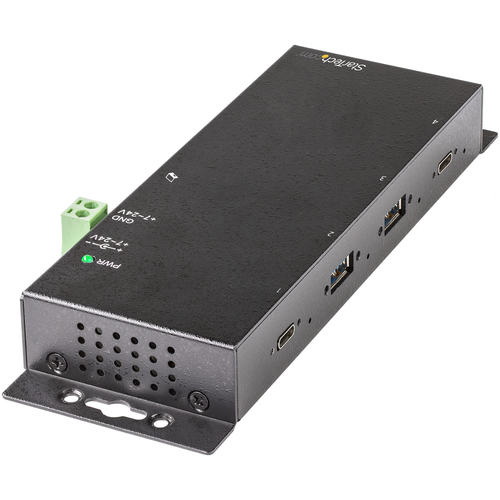

Industrial USB Hub | Metal Housing | Built-in Mounting Hardware | Screw Locking Ports

This 4-Port industrial USB hub enables you to connect four SuperSpeed USB 3.2 Gen 2 (10 Gbps) peripherals to your USB-A or USB-C computer. The hub features two USB-A and two USB-C peripheral ports, each with a screw-lock connector, and a metal industrial housing ideal for harsh, industrial environments.

Expands the Connectivity of Your Computer for Industrial Applications

With this USB-C hub you can connect two USB-A devices, and two USB-C devices, to a single USB-C or USB-A port on your host device. The hub supports USB 3.2 Gen 2 (10 Gbps), and is backward compatible with USB 3.2 Gen 1 (5 Gbps) and USB 2.0 (480 Mbps).

Note: USB 3.2 Gen 2 (10 Gbps) is also known as USB 3.1 Gen 2 (10 Gbps), USB 3.2 Gen 1 (5 Gbps) is also know as USB 3.1 Gen 1 (5 Gbps), and USB 3.0 (5 Gbps).

Powers and Charges Your Connected Devices

The USB hub is self powered using either the included 36W (12V/3A) AC to DC power adapter, or the built-in terminal block connector that supports a 7-24V DC input. The hub shares up to 30W of power between connected devices and each port supports BC 1.2 providing 12W (2.4A) of power on all ports up to a 30W draw.

Ideal for Use in Industrial Environments

This USB hub has a rugged-metal enclosure with built-in mounting ears that enable you to mount it to any wall or surface. The hub features 15kV Air and 8kV Contact electrostatic discharge (ESD) protection. Each port on the Hub has a screw lock, avoiding the possibility of accidental cable disconnection, and a 3.3 ft. (1m) USB-C host cable, and a 3.3 ft. (1 m) USB-A host cable is included that features a locking screw.

Wide Device Compatibility

The USB hub is OS independent ensuring support on a wide range of platforms including Windows, macOS, Linux, iPadOS, Chrome OS and Android.

HB31C2A2CME is backed by a StarTech.com 2-year warranty and free lifetime 24/5 multi-lingual North American based technical support. StarTech.com has been the IT professionals' choice for over 30 years.

The StarTech.com Advantage

3 IN STOCK

RRP Price €179.96

Specifications

Ports & interfaces

Host interface

USB 3.2 Gen 2 (3.1 Gen 2) Type-C

Hub interfaces

USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

Ports quantity

Terminal block port

Yes

DC-in jack

Yes

Features

Data transfer rate

10000 Mbit/s

Product colour

Black

Housing material

Metal

LED indicators

Power, USB

Network

UASP support

Yes

Power

Power consumption (typical)

36 W

Input voltage

100 - 240 V

Input current

1 A

Output voltage

12 V

Output current

3 A

Power plug type

Type M

Weight & dimensions

Width

59.6 mm

Depth

152 mm

Height

23.5 mm

Weight

280 g

Packaging data

Package width

290 mm

Package depth

190 mm

Package height

67 mm

Package weight

1.3 kg

Packaging content

AC adapter included

Yes

Included power plug types

ANZ, EU, JP, NA, UK

Cables included

USB Type-A to USB Type-C

Manual

Yes

Terminal block included

Yes

Operational conditions

Operating temperature (T-T)

0 - 55 °C

Storage temperature (T-T)

-20 - 85 °C

Operating relative humidity (H-H)

5 - 95%

Logistics data

Master (outer) case width

515 mm

Master (outer) case length

390 mm

Master (outer) case height

313 mm

Products per master (outer) case

14 pc(s)

Harmonized System (HS) code

84719000

Technical details

Compliance certificates

CE, RoHS

Other features

Chipset

VIA/VLI - VL822

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

N/A

Weight

0.28 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
