HD2AP-10M-HDMI-CABLE - Cables & Adaptors by StarTech.com

Reliably connect high-bandwidth HDMI 2.0 devices through plenum spaces

Route this Active High Speed HDMI 2.0 Cable through office plenum spaces for long distance transmission of 4K 60Hz video and high quality audio.

HDMI UHD Over Long Distances

The Active HDMI 2.0 cord is designed for long-distance reliability. Durable gold-plated connectors and 24/28AWG bare copper wire maintain optimal conductivity and low resistance, ensuring consistent performance across different environments. The integrated active chipset boosts the HDMI signal without requiring external power, facilitating 4K 60Hz video and full HDMI 2.0 capabilities. This enables the transmission of HDMI UHD video beyond passive cable lengths.

Full-Featured HDMI 2.0

The Active HDMI UHD Cable supports full HDMI 2.0 specifications:

• Up to 18Gbps bandwidth for 4K 60Hz video and higher refresh rates at lower resolutions (e.g. 1080p/1440p 120Hz)
• High Dynamic Range (HDR10) with 10-bit processing for higher contrast ratio and vibrant, cinematic picture quality
• Audio Return Channel (ARC) for 7.1 and 32-channel audio
• High-Bandwidth Digital Content Protection (HDCP 2.2) for a secure connection between source and display
• Dual Video Streams enable two independent video streams from a single source, allowing for picture-in-picture and other capabilities
• Variable Refresh Rate (VRR) synchronizes the refresh rate of the display with the output frame rate of the content, reducing screen tearing

Plenum-Rated Cabling

This HDMI 2.0 Cable features a Communications Multipurpose Plenum (CMP)-rated cable jacket with low-smoke characteristics. It is ideal for use in the plenum spaces of buildings (e.g., dropped ceilings and in-wall installations). The durable outer jacket is rated to withstand over 1,000 bending cycles at -/+60 degrees. This protects the cable from damage when routing through tight spaces that include multiple bends.

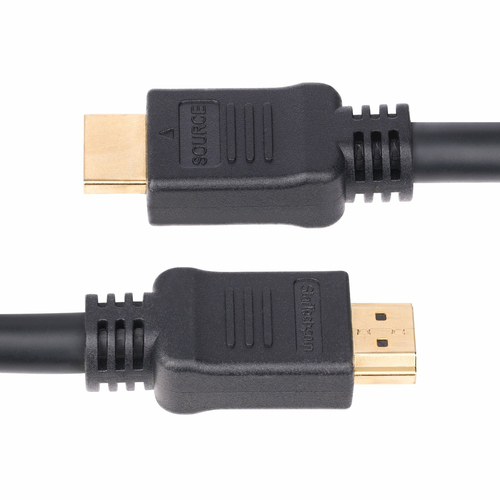

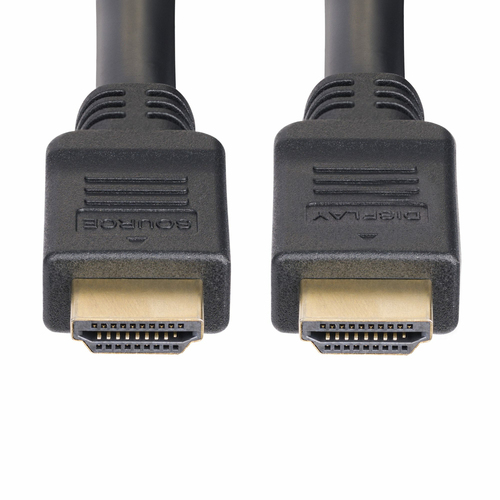

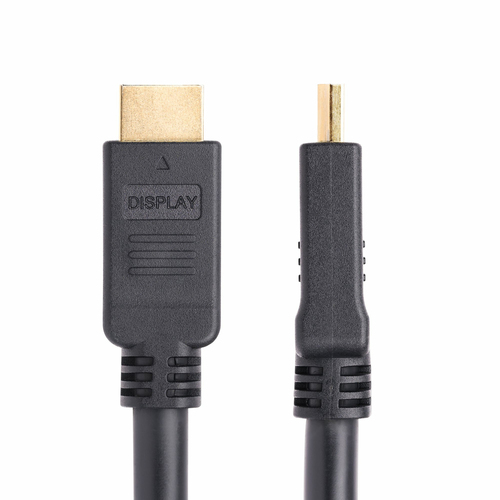

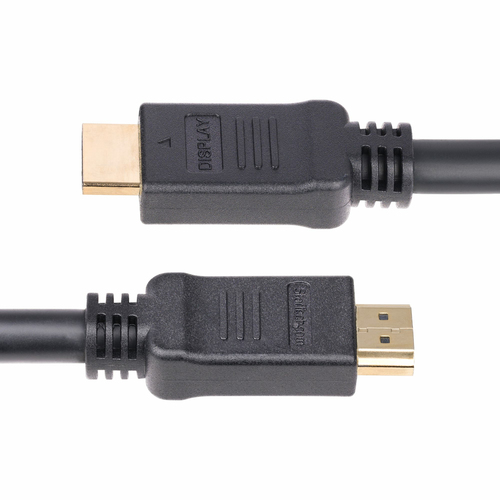

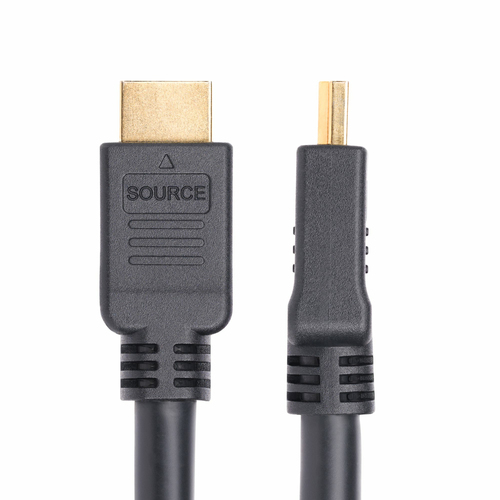

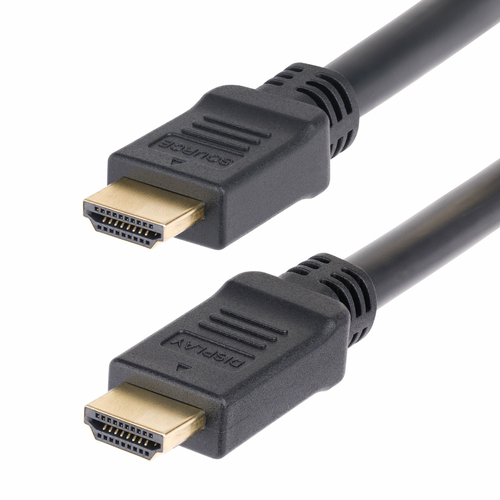

Note : This cable is unidirectional and must be installed in a specific direction. Refer to the embossed SOURCE and DISPLAY markings on the HDMI connectors to ensure that each end corresponds with the correct hardware.

The StarTech.com Advantage

9 IN STOCK

RRP Price €193.26

Specifications

Features

Cable length
10 m
Connector 1
HDMI Type A (Standard)
Connector 2
HDMI Type A (Standard)
Connector 1 gender
Male
Connector 2 gender
Male
Connector 1 form factor
Straight
Connector 2 form factor
Straight
Product colour
Black
HDMI version
2.0
Supported graphics resolutions
1920 x 1080 (HD 1080), 2560 x 1440, 3840 x 2160
Supported video modes
1080p, 1440p, 2560p
Audio Return Channel (ARC)
Yes
HDCP version
2.2
Data transfer rate
18 Gbit/s
High Dynamic Range (HDR) supported
Yes
High Dynamic Range (HDR) technology
High Dynamic Range 10 (HDR10)
Supported digital audio channels (uncompressed)
7.1, 32
Unidirectional
Yes
Maximum refresh rate
120 Hz
AWG wire size
24/28
Connector contacts plating
Gold
Cable material
Copper
Cable rating
CMP
Cable type
Round cable
Cable jacket material
Polyvinyl chloride (PVC)
Cable shielding
Aluminum mylar foil
Colour depth
10 bit

Operational conditions

Operating temperature (T-T)
-20 - 70 °C
Storage temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
0 - 95%

Sustainability

Sustainability compliance
Yes

Certificates

Compliance certificates
CE, RoHS

Weight & dimensions

Cable diameter
9 mm

Packaging data

Package width
250 mm
Package depth
250 mm
Package height
35 mm
Package weight
1 kg
Quantity per pack
1 pc(s)

Logistics data

Master (outer) case width
400 mm
Master (outer) case length
300 mm
Master (outer) case height
300 mm
Products per master (outer) case
10 pc(s)
