HDMI2HDMIMFRA - Cables & Adaptors by StarTech.com

HDMI2HDMIMFRA - Cables & Adaptors by StarTech.com

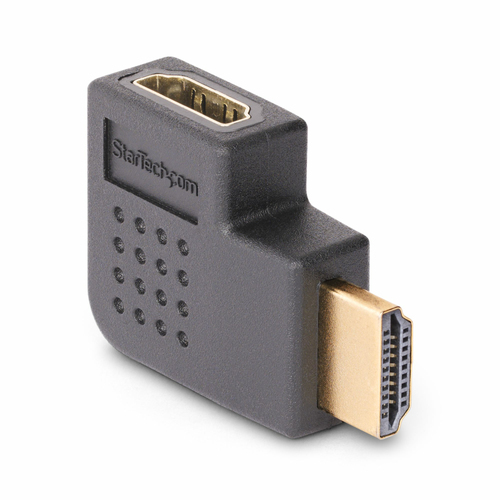

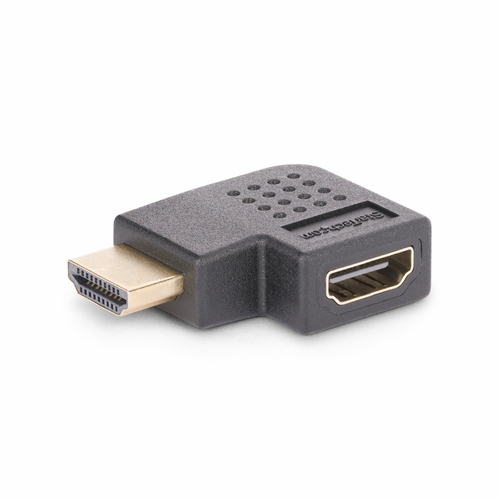

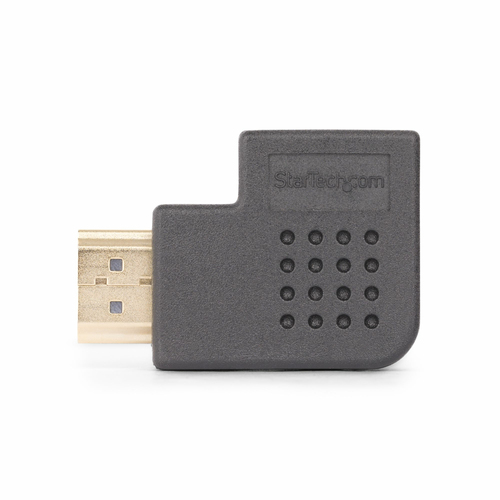

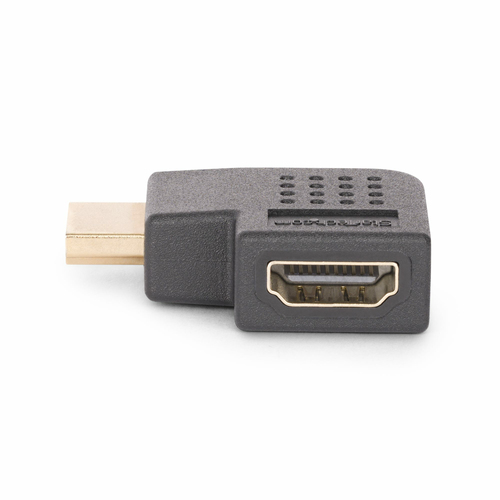

Name: StarTech.com Right Angle HDMI 2.0 Adapter, Male to Female, Horizontal 90-Degree Angled HDMI Port Saver, 4K 60Hz, High Speed HDMI Connector Extension,...
Brand: StarTech.com
SKU: HDMI2HDMIMFRA
Price: 13.22 EUR
Availability: OutOfStock

Enable improved access to HDMI ports and reduce connector strain from bending

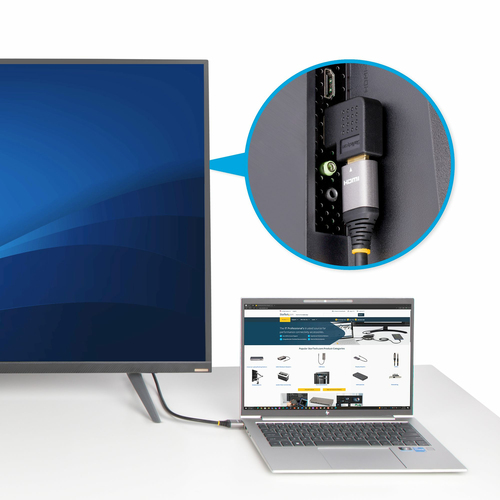

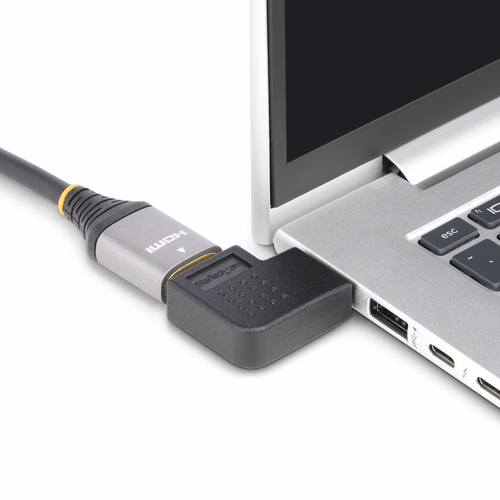

This compact Right-Angled HDMI Adapter acts as a port saver, mitigating strain on HDMI ports and connectors. Ideal for installations with limited depth, it enables access to concealed or rear-facing HDMI ports, and reduces wear and tear resulting from frequent connections.

Full HDMI Capability

This Right Angle HDMI adapter supports all HDMI 2.0 specifications:

• Resolutions up to 4K 60Hz
• High speeds with a bandwidth of up to 18Gbps
• High Dynamic Range (HDR) for higher contrast ratio and vibrant colors
• Crystal clear sound with up to 32 channels of digital audio
• Supports 21:9 cinema aspect ratio and 3D video
• Backward compatible with previous versions of HDMI
• Supports Consumer Electronics Control (CEC)

Enjoy Optimal Picture Quality

Fully compatible with HDMI 2.0 equipment, this HDMI 2.0 Port Saver maintains optimal picture quality at resolutions up to 4K 60Hz and bandwidths up to 18Gbps. Backward compatibility ensures seamless integration with existing HDMI devices.

The StarTech.com Advantage

ON ORDER

RRP Price €13.22

Specifications

Ports & interfaces

Connector 1

HDMI

Connector 2

HDMI

Connector 1 gender

Male

Connector 2 gender

Female

Connector 1 form factor

Angled

Connector 2 form factor

Angled

Connector contacts plating

Gold

Performance

Product colour

Black

Housing material

Polyvinyl chloride (PVC)

Data transfer rate

18 Gbit/s

Maximum resolution

3840 x 2160 pixels

Maximum refresh rate

60 Hz

HDCP

Yes

Operational conditions

Operating temperature (T-T)

0 - 45 °C

Storage temperature (T-T)

-10 - 70 °C

Relative humidity

10 - 90%

Certificates

Compliance certificates

Sustainability

Sustainability compliance

Yes

Packaging data

Package width

90 mm

Package depth

125 mm

Package height

10 mm

Package weight

17 g

Logistics data

Products per master (outer) case

1000 pc(s)

Master (outer) case width

340 mm

Master (outer) case length

280 mm

Master (outer) case height

220 mm

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.017 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
