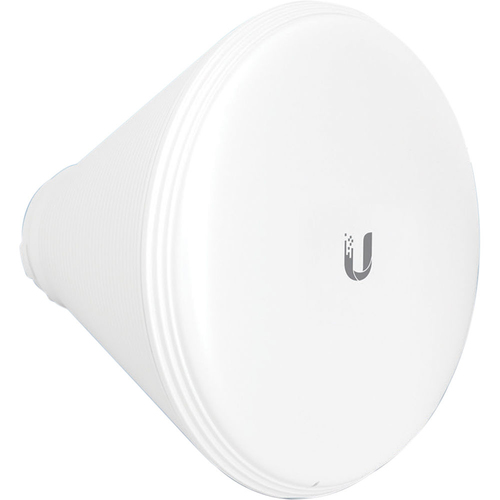

Ubiquiti HORN-5-30 network antenna Horn antenna 19 dBi

Ubiquiti HORN-5-30 network antenna Horn antenna 19 dBi

Name: Ubiquiti HORN-5-30 network antenna Horn antenna 19 dBi
Brand: Ubiquiti
SKU: HORN-5-30
Price: 100.03 EUR
Availability: OutOfStock

5 GHz Beamwidth Horn Antenna
With a range of different beam widths, the isolation antennas are interchangeable and feature high-performance beam patterns ideal for a range of deployment needs. Used with the airFiber® LTU and airMAX® radios, these antennas deliver superb co‐location performance without sacrificing gain.

Modular Design
The isolation antennas are interchangeable and feature high-performance beam patterns for a range of demanding deployment needs. Combined with the PrismStation 5AC or airFiber LTU radio, the system gets maximum gain out of the smallest footprint.

Asymmetrical horn antennas
60° and 90° versions have naturally attenuated side lobes and extremely low back radiation. They offer the best front-to-back ratio in the industry and the lowest side lobe radiation. Asymmetrical horn antennas are ideal for cluster sector installations with high co-location requirements.

ON ORDER

SKU: HORN-5-30

Manufacturer:

Ubiquiti

RRP Price €100.03

Specifications

Performance

Frequency band

5.15 - 5.85 GHz

Horizontal beam width

30°

Vertical beam width

30°

Antenna gain level (max)

19 dBi

Features

Antenna type

Horn antenna

Polarization

Dual polarization

Voltage Standing Wave Ratio (VSWR)

1.7:1

Product colour

White

Survival wind speed

200 km/h

Wind load

Isolation

17 dB

Weight & dimensions

Depth

184.2 mm

Diameter

22.1 cm

Weight

1.1 kg

Packaging content

Quantity per pack

1 pc(s)

Logistics data

Harmonized System (HS) code

85177100

Description

Manufacturer

Ubiquiti

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

1.1 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
