Name: StarTech.com 5-Port Unmanaged Industrial Network Switch, 100/1000 Ethernet, DIN Rail/Wall-Mountable, Rugged IP30 Gigabit Switch, -40F-167F, 9~60V DC,...
Brand: StarTech.com
SKU: I51G-ETHERNET-SWITCH
Price: 113.94 EUR
Availability: InStock

Expand your network connectivity with simple plug-and-play setup

This unmanaged, fanless network switch delivers silent, energy-efficient performance with five multi-speed Ethernet ports (10/100/1000 Mbps). Its durable all-metal casing ensures long-lasting reliability.

Enhance Your Network

Expand your network connectivity with simple plug-and-play setup. This network switch is ideal for large file transfers, streaming, network sharing and storage, or other bandwidth-intensive applications. Auto-negotiation detects the highest supported speeds on your devices for maximum performance and compatibility.

Rugged TAA Switch

This TAA compliant unmanaged switch features an unintrusive design and small dimensions (3.9x2.3x1 inch / 100.5x60x 25.5mm). Key features such as 9K Jumbo Frames, 3-Pin Terminal Block Power Input, QoS IEEE 802.1p, and the included DIN Rail and Wall Mounting Kits give you the flexibility to use it in a multitude of scenarios. The rugged metal enclosure is IP30 rated to prevent objects larger than 2.5mm from getting inside and has an extended operating temperature range of -40°F-167°F (40°C-75°C). The clear diagnostic LEDs show the status of the devices at a glance.

Designed for Demanding Environments

This network switch is deal for industrial settings and centralized control stations where device reliability is essential and environmental conditions fluctuate. The compact form factor makes it an ideal solution for Industrial Automation and IP Surveillance.

The StarTech.com Advantage

4 IN STOCK

RRP Price €113.94

Specifications

Management features

Switch type

Unmanaged

Quality of Service (QoS) support

Yes

Ports & interfaces

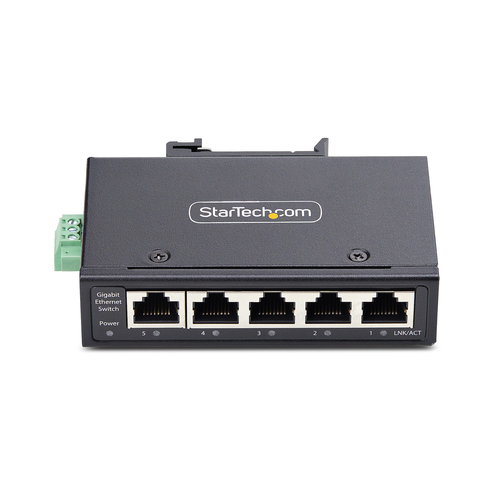

Basic switching RJ-45 Ethernet ports quantity

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Gigabit Ethernet (copper) ports quantity

Power connector

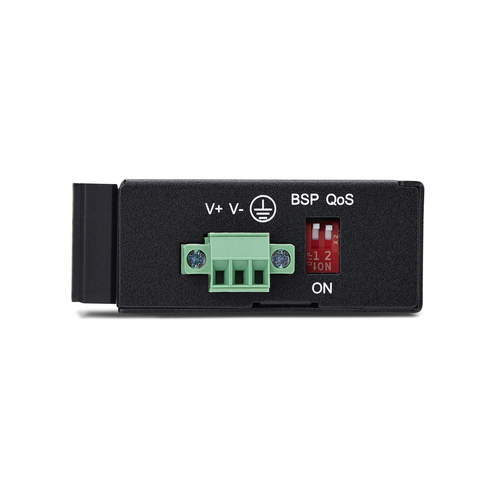

Terminal block (3-pin)

Network

Networking standards

IEEE 802.1p, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

10G support

Copper ethernet cabling technology

100BASE-TX, 1000BASE-T

Full duplex

Yes

Auto MDI/MDI-X

Yes

Ethernet LAN data rates

10,100,1000 Mbit/s

Data transmission

Store-and-forward

Yes

Jumbo frames support

Yes

Jumbo frames

9000

Design

Product colour

Black

Housing material

Metal

LED indicators

Yes

International Protection (IP) code

IP30

Wall mountable

Yes

DIN rail mounting

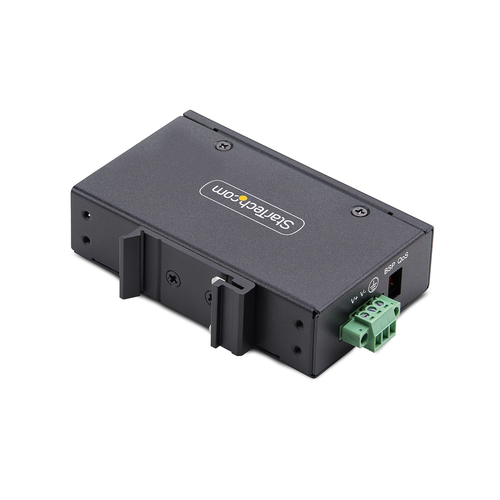

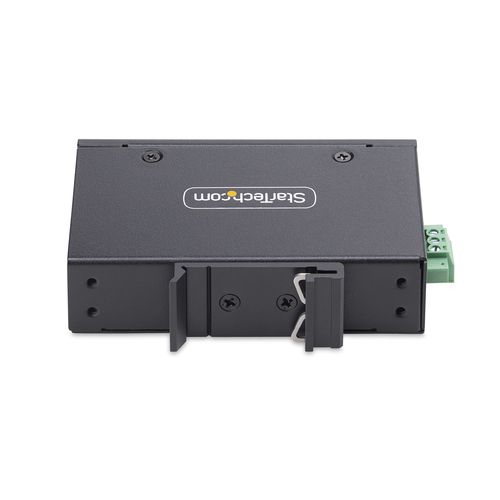

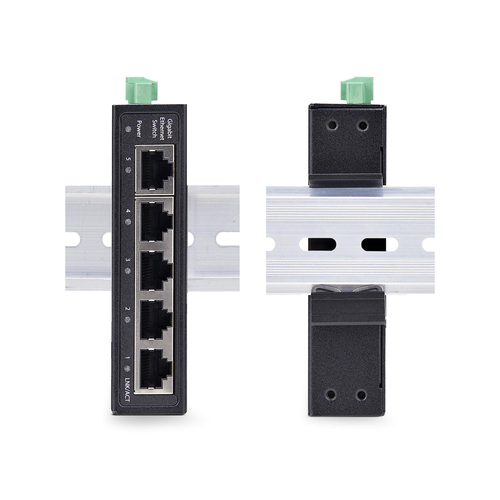

Yes

Performance

Mean time between failures (MTBF)

556710 h

Power

Power supply included

Yes

Input voltage

9 - 60 V

Operational conditions

Operating temperature (T-T)

-40 - 75 °C

Storage temperature (T-T)

-40 - 85 °C

Operating relative humidity (H-H)

5 - 95%

Weight & dimensions

Width

60 mm

Depth

100 mm

Height

26 mm

Weight

221.7 g

Packaging content

Quick start guide

Yes

Packaging data

Terminal block included

Yes

Mounting brackets included

Yes

DIN rail included

Yes

Package width

107 mm

Package depth

159 mm

Package height

55 mm

Package weight

293.7 g

Certificates

Compliance certificates

RoHS, Trade Agreements Act (TAA)

Logistics data

Master (outer) case width

355 mm

Master (outer) case length

295 mm

Master (outer) case height

335 mm

Products per master (outer) case

30 pc(s)

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

N/A

Weight

0.2217 kg

Country of Origin

N/A

Datasheet

Data Sheet
