StarTech.com 24in Internal USB Motherboard Header to Serial RS232 Adapter

StarTech.com 24in Internal USB Motherboard Header to Serial RS232 Adapter

Name: StarTech.com 24in Internal USB Motherboard Header to Serial RS232 Adapter
Brand: StarTech.com
SKU: ICUSB232INT1
Price: 14.02 EUR
Availability: InStock

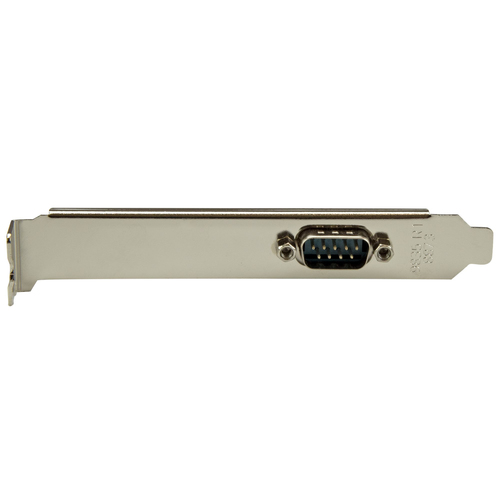

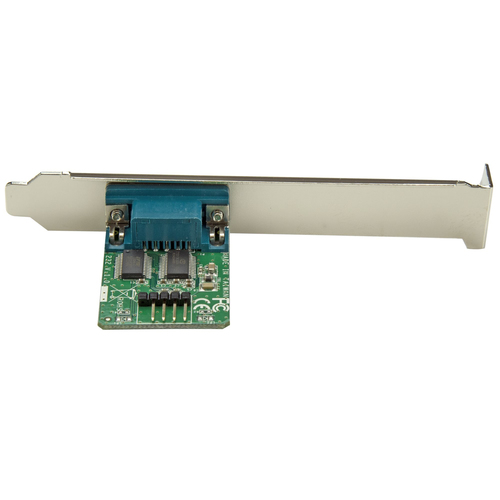

Add an RS232 serial port to any system with an available USB motherboard header

The ICUSB232INT1 USB to RS232 Serial Adapter lets you add an RS232 port to any desktop system that is equipped with an available USB motherboard header. Unlike standard USB to serial cables, this cable is designed for use inside the PC case, affording an entirely internal solution with no mess or extra adapters needed. This compact and simple USB adapter offers a cost-effective solution that bridges the compatibility gap between modern computers and legacy serial peripherals. Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

6 IN STOCK

SKU: ICUSB232INT1

Manufacturer:

StarTech.com

RRP Price €14.02

Specifications

Ports & interfaces

Host interface

IDC

Output interface

Serial

Serial ports quantity

Serial interface type

RS-232

Design

Internal

Yes

Product colour

Black, Green, Silver

Certification

Microsoft WHQL, CE, FCC

Features

Chipset

FTDI - FT232RL

Baud rate

115.2 Kbit/s

FIFO (First In, First Out)

256 B

Data bits

7, 8

Stop bits

1, 2

Operational conditions

Operating temperature (T-T)

-10 - 85 °C

Storage temperature (T-T)

-20 - 100 °C

Operating relative humidity (H-H)

5 - 85%

System requirements

Windows operating systems supported

Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows CE, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64

Mac operating systems supported

Mac OS X 13.0 Ventura

Server operating systems supported

Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016

Weight & dimensions

Width

123 mm

Depth

45 mm

Height

12 mm

Weight

31 g

Packaging data

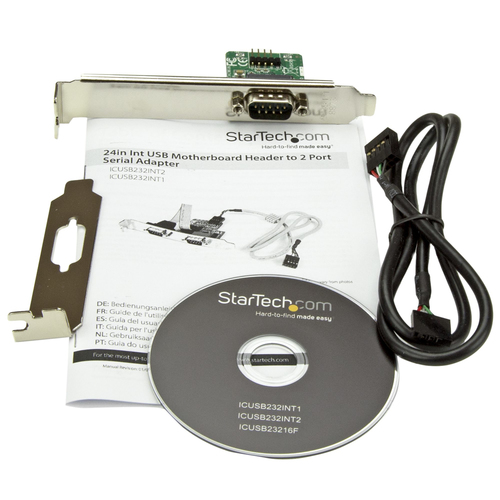

Mounting brackets included

Yes

Drivers included

Yes

Manual

Yes

Package width

143 mm

Package depth

173 mm

Package height

32 mm

Package weight

160 g

Logistics data

Harmonized System (HS) code

84733020

Products per master (outer) case

50 pc(s)

Master (outer) case width

355 mm

Master (outer) case length

682 mm

Master (outer) case height

319 mm

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

N/A

Weight

0.031 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
